Biostar MCP6PB M2+ User Manual

MCP6PB M2+
3
SPEC
CPU Fan header x1 CPU Fan power supply (with Smart Fan function)
System Fan head er x1 System Fan Power supply
CMOS clear header x1 Restore CMOS data to factory default
USB connector x2 Each connector supports 2 front panel USB ports
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Printer Port Connector x1 Each connector supports 1 Printer port
Serial port Connector x1 Connects to RS-232 Port

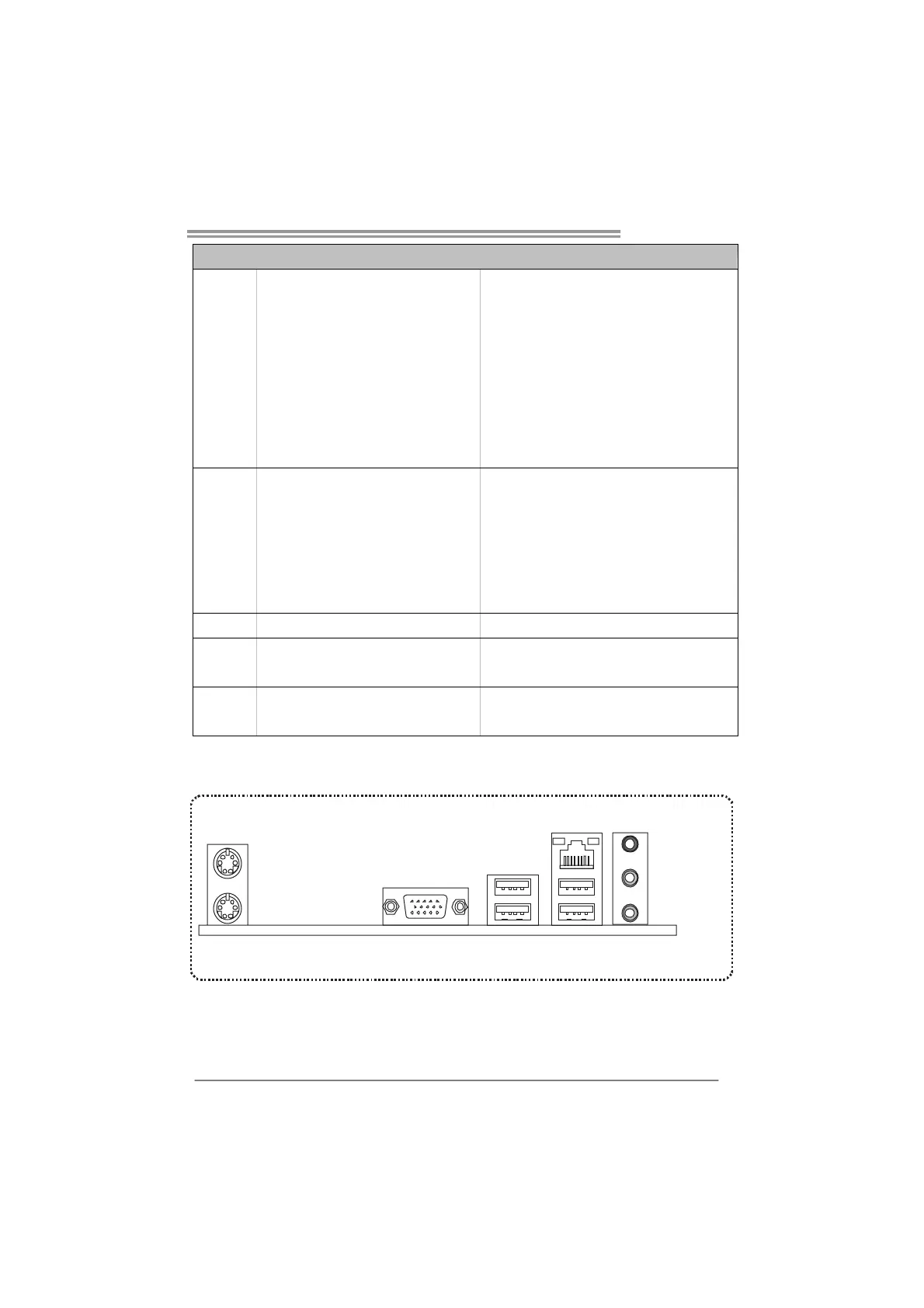

Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
VGA port x1
LAN port x1
USB Port x4
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connect to D-SUB monitor
Connect to RJ-45 ethernet cable
Connect to USB devices
Provide Audio-In/Out and microphone connection
Board Size 170 mm(W) x 235 mm(L) MicroATX
Special
Features
RAID 0 / 1
OS Support Windows XP / Vista / 7
Biostar Reserves the right to add or remove support
for any OS With or without notice.
1.4 R
EAR PANEL CONNECTORS
PS/2
Mouse
PS/ 2
Keyboard
USBX2USBX2
LAN
VGA
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center

Biostar MCP6PB M2+ Specifications

General

Number of memory slots	2
Maximum internal memory	4 GB
Supported memory clock speeds	533, 667, 800 MHz
Processor socket	Socket AM2
Processor manufacturer	AMD
Power fan connector	Yes
Number of Parallel ATA connectors	1
USB 2.0 ports quantity	4
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC662
Certification	RoHS
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP/Vista
Maximum graphics card memory	512 MB
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8201CL
Networking features	Fast Ethernet
BIOS type	-

Weight and Dimensions

Depth	170 mm
Width	235 mm
