Biostar MCP6PB M2+ User Manual

MCP6PB M2+
7

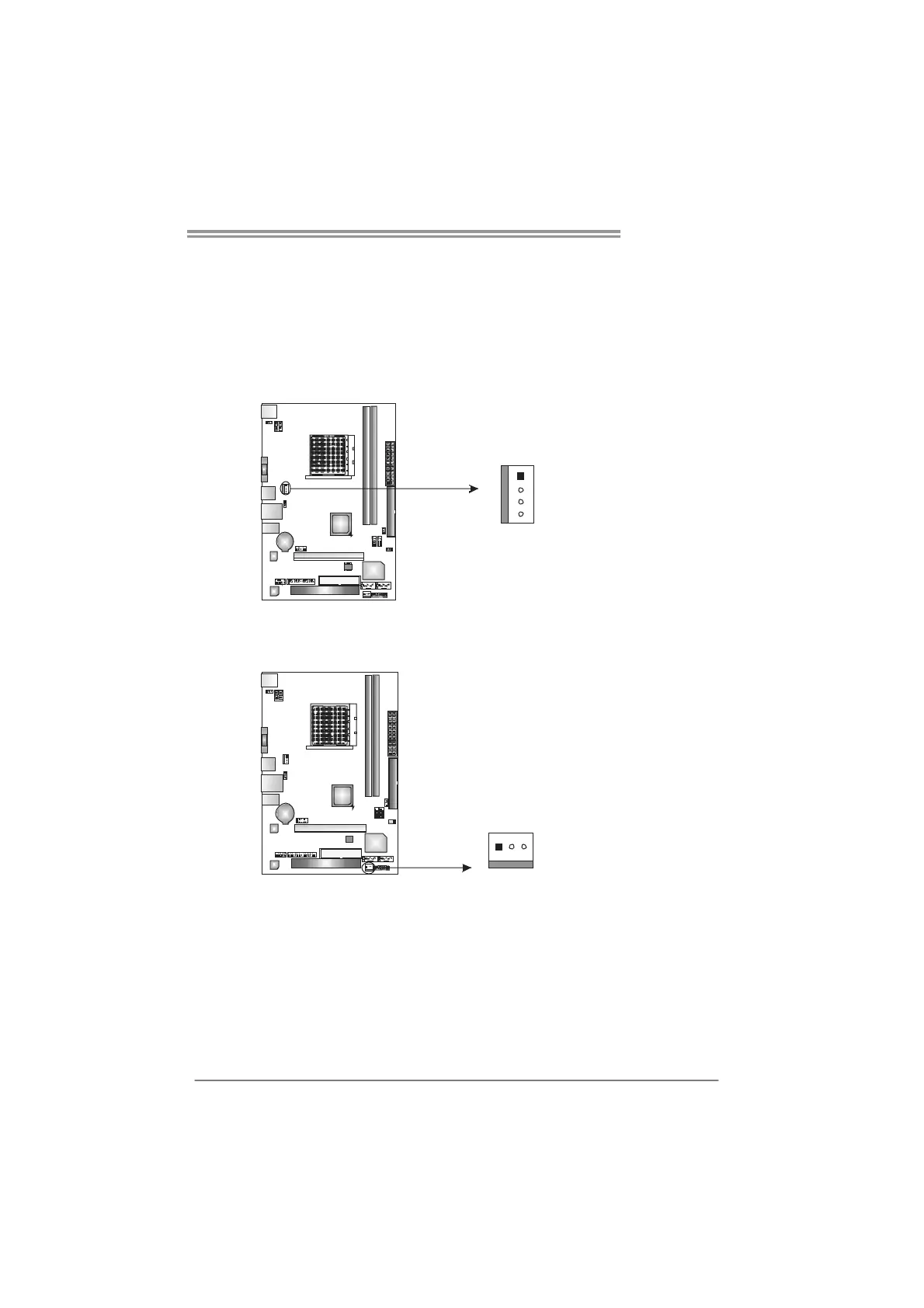

2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
JCFAN: CPU Fan Header
Pin
Assignment
1 Ground
2 +12V
3
FAN RPM rate
sense
1
4
4 Smart Fan
Control (By Fan)
JSFAN: System Fan Header
Pin
Assignment
1 Ground
2 +12V
13
3 FAN RPM rate
sense
Note:
The JCFAN supports 4-pin head connector; the JSFAN, 3-pin head connector. When
connecting with wires onto connectors, please note that the red wire is the positive and
should be connected to pin#2, and the black wire is Ground and should be connected to
GND.

Biostar MCP6PB M2+ Specifications

General

Number of memory slots	2
Maximum internal memory	4 GB
Supported memory clock speeds	533, 667, 800 MHz
Processor socket	Socket AM2
Processor manufacturer	AMD
Power fan connector	Yes
Number of Parallel ATA connectors	1
USB 2.0 ports quantity	4
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC662
Certification	RoHS
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP/Vista
Maximum graphics card memory	512 MB
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8201CL
Networking features	Fast Ethernet
BIOS type	-

Weight and Dimensions

Depth	170 mm
Width	235 mm
