Biostar MCP6PB M2+ User Manual

Motherboard Manual
4

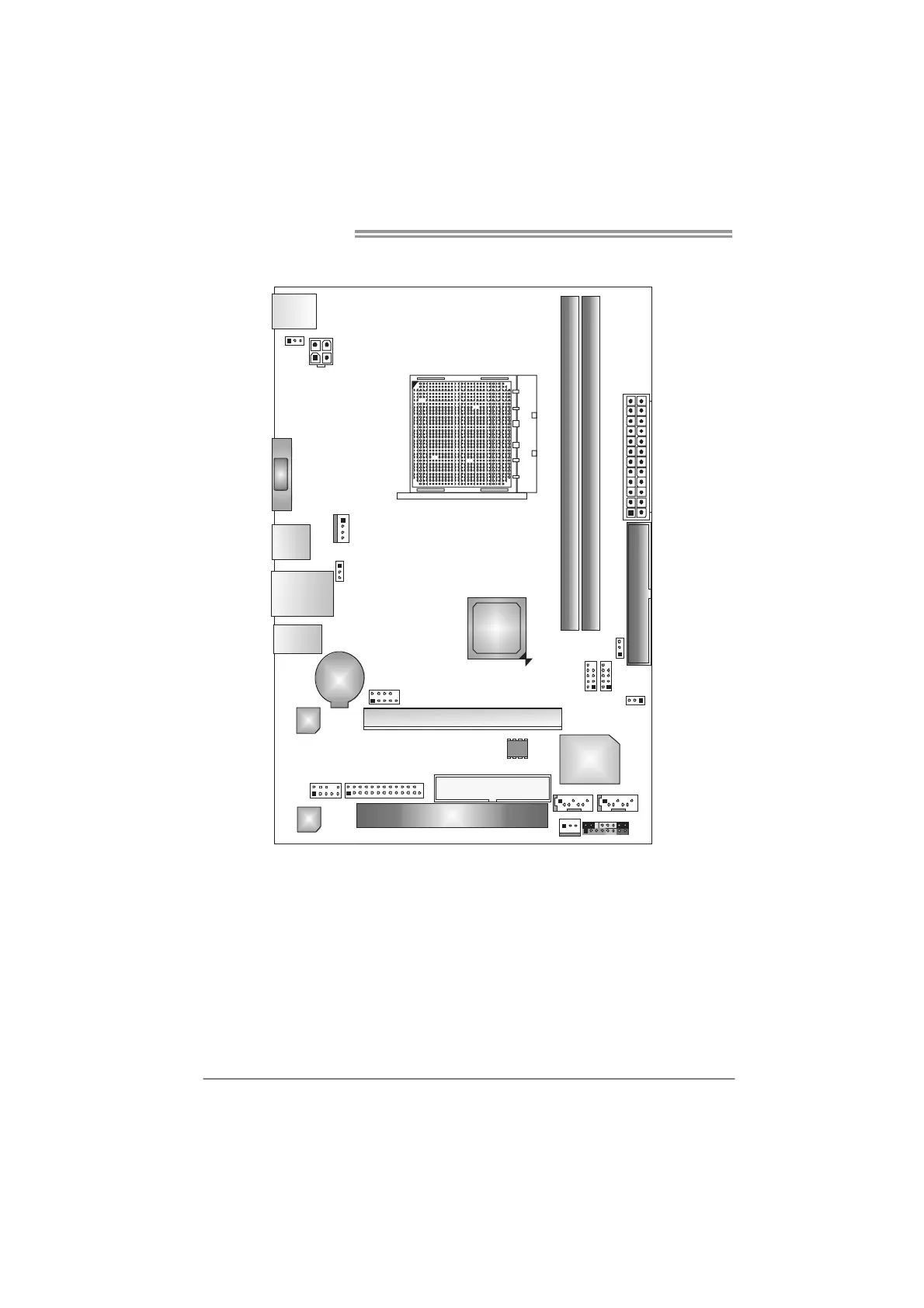

1.5 MOTHERBOARD LAYOUT
JKBMS
JKB_PWR
JATXPWR2
JVGA
JUSB1
JUSBLAN1
JAUDIO1
JUSBPWR1
JCFAN
BAT1
LAN
JAUDIOF
Codec
PCI1
JPRNT
SATA2 SATA1
JSFAN
J PANE L1
FDD
BI OS
Super I/O
JCMOS1
JUSB2
JU S B3
JUSBPWR2
IDE
JATXPWR1
DIMMB1 DIMMA1
Socket AM2+
PEX16_1
JCO M
GeForce
6150SE
Note: represents the 1■
st
pin.

Biostar MCP6PB M2+ Specifications

General

Number of memory slots	2
Maximum internal memory	4 GB
Supported memory clock speeds	533, 667, 800 MHz
Processor socket	Socket AM2
Processor manufacturer	AMD
Power fan connector	Yes
Number of Parallel ATA connectors	1
USB 2.0 ports quantity	4
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC662
Certification	RoHS
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP/Vista
Maximum graphics card memory	512 MB
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8201CL
Networking features	Fast Ethernet
BIOS type	-

Weight and Dimensions

Depth	170 mm
Width	235 mm
