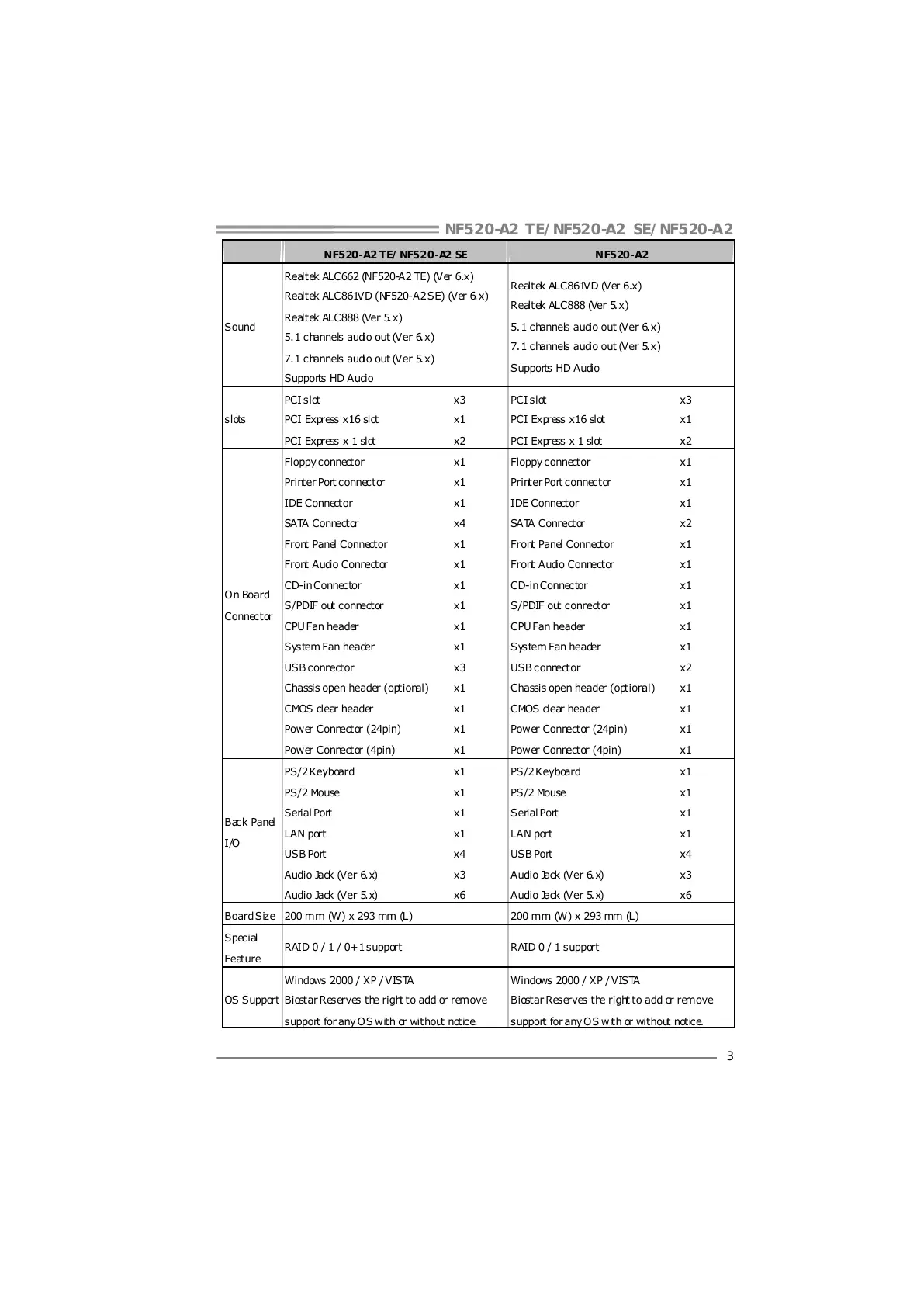

NF520-A2 TE/NF520-A2 SE/NF520-A2
3
NF520-A2 TE/NF520-A2 SE NF520-A2
Sound
Realtek ALC662 (NF520-A2 TE) (Ver 6.x)
Realtek ALC861VD (NF520-A2 SE) (Ver 6. x)
Realtek ALC888 (Ver 5.x)
5.1 channels audio out (Ver 6. x)
7.1 channels audio out (Ver 5. x)
Supports HD Audio
Realtek ALC861VD (Ver 6.x)
Realtek ALC888 (Ver 5.x)
5.1 channels audio out (Ver 6. x)
7.1 channels audio out (Ver 5. x)
Supports HD Audio
PCI slot x3 PCI slot x3
PCI Express x16 slot x1 PCI Express x16 slot x1 slots
PCI Express x 1 slot x2 PCI Express x 1 slot x2
Floppy c onnect or x1 Floppy c onnect or x1
Printer Port connec tor x1 Printer Port connec tor x1
IDE Connector x1 IDE Connector x1
SA TA Connect or x4 SA TA C onnect or x2
Front Panel Connector x1 Front Panel Connector x1
Front Audio Connector x1 Front Audio Connector x1
CD-in Connec tor x1 CD-in Connector x1
S/PDIF out connector x1 S/PDIF out connector x1
CPU Fan header x1 CPU Fan header x1
System Fan header x1 S ys tem Fan header x1
USB connector x3 USB connector x2
Chassis open header (optional) x1 Chassis open header (optional) x1
CMOS clear header x1 CMOS clear header x1
Power Connector (24pin) x1 Power Connector (24pin) x1
On Board
Connector
Power Connector (4pin) x1 Power Connector (4pin) x1
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
S e ri a l Po rt x 1
LAN port x1
USB Port x4
Audio Jack (Ver 6.x) x3
Audio Jack (Ver 5.x) x6
PS/2 Keyboard x1
PS/2 Mouse x1
S e ri a l Po rt x 1
LAN port x1
USB Port x4
Audio Jack (Ver 6.x) x3
Audio Jack (Ver 5.x) x6
Board Size 200 mm (W) x 293 mm (L) 200 mm (W) x 293 mm (L)
Special
Feature
RAID 0 / 1 / 0+1 support RAID 0 / 1 support
OS Support
Windows 2000 / XP / VISTA
Biostar Reserves the right to add or remove
support for any OS with or without notice.
Windows 2000 / XP / VISTA
Biostar Reserves the right to add or remove
support for any OS with or without notice.
