2.4 CONNECTORS AND SLOTS

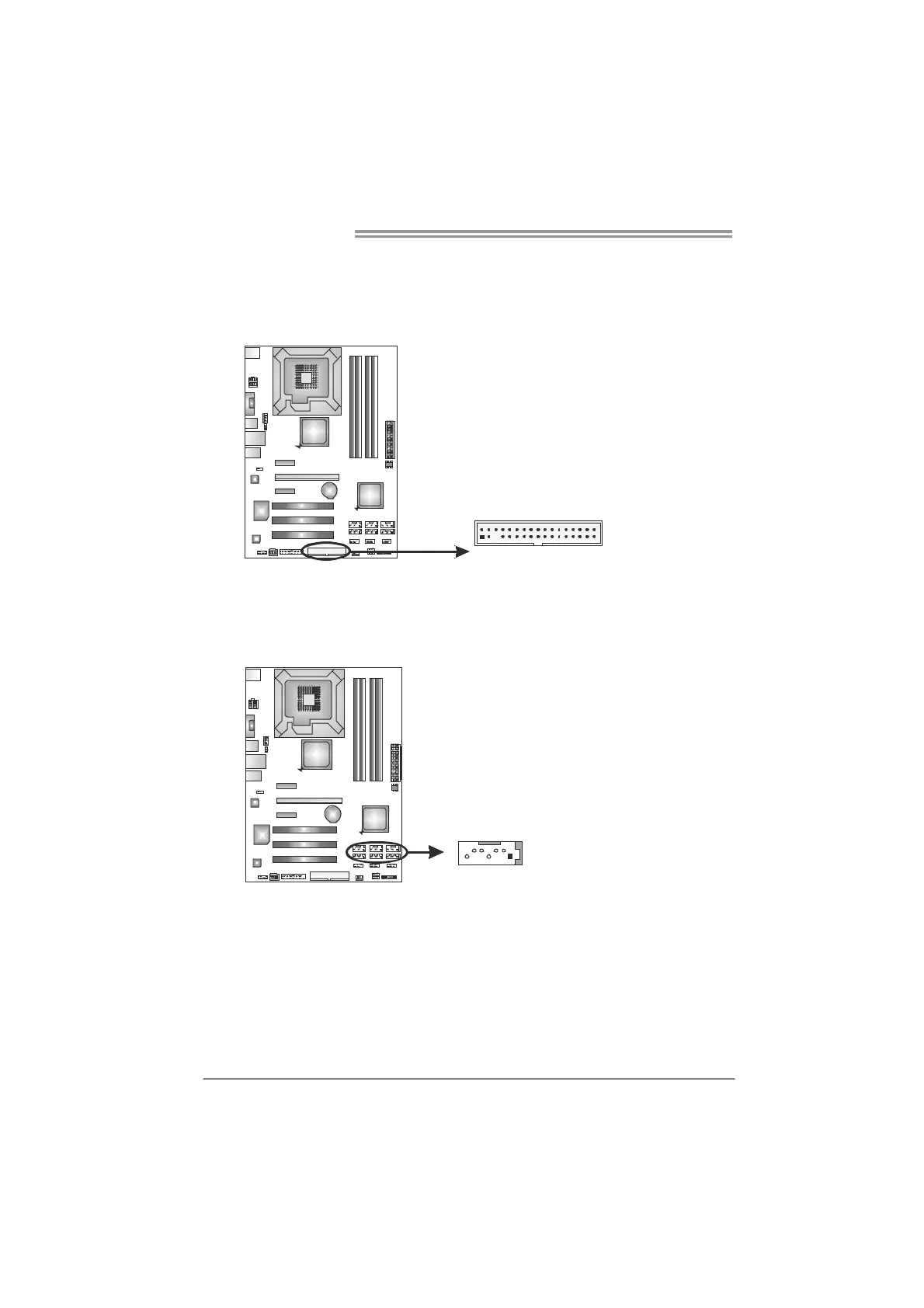

FDD1: Floppy Disk Connector
The motherboard provides a standard floppy disk connector that supports 360K,
720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the
provided floppy drive ribbon cables.
133
234
SATA1~SATA6: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 6channels SATA interface, it
satisfies the SATA 2.0 spec and with transfer rate of 3Gb/s.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
1
47
S ATA 6 S ATA 4 S ATA 2
S ATA 5 S ATA 3 S ATA 1
7 Ground
To Next Page
