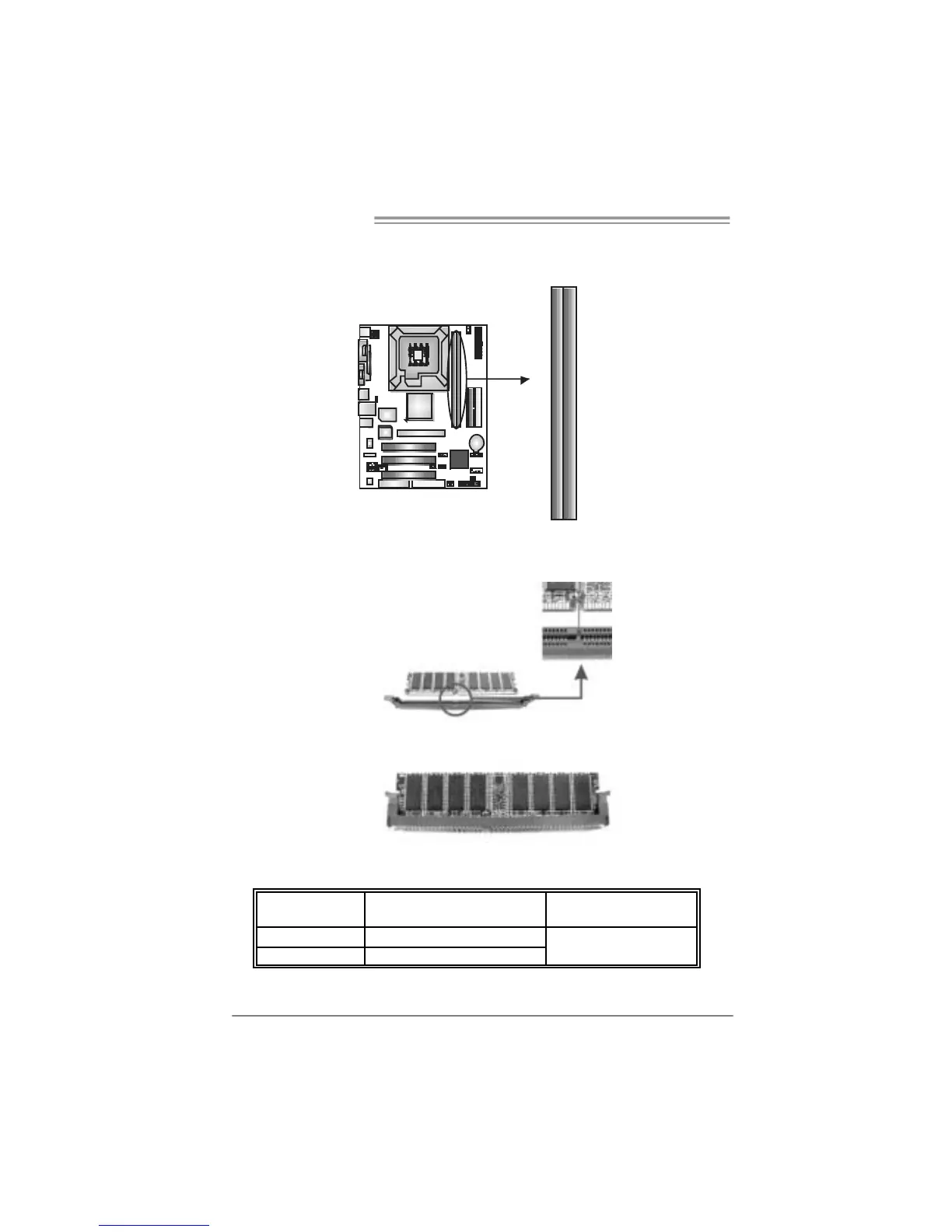

2.3 INSTALLING SYSTEM MEMORY
A. Memory Modules
DDR2_A2
DD R2 _ A1
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
B. Memory Capacity
DIMM Socket
Location
DDR Module
Total Memory Size
DDR2_A1 256MB/512MB/1GB
DDR2_A2 256MB/512MB/1GB
Max is 2GB.
