P4M800 Pro-M7
9

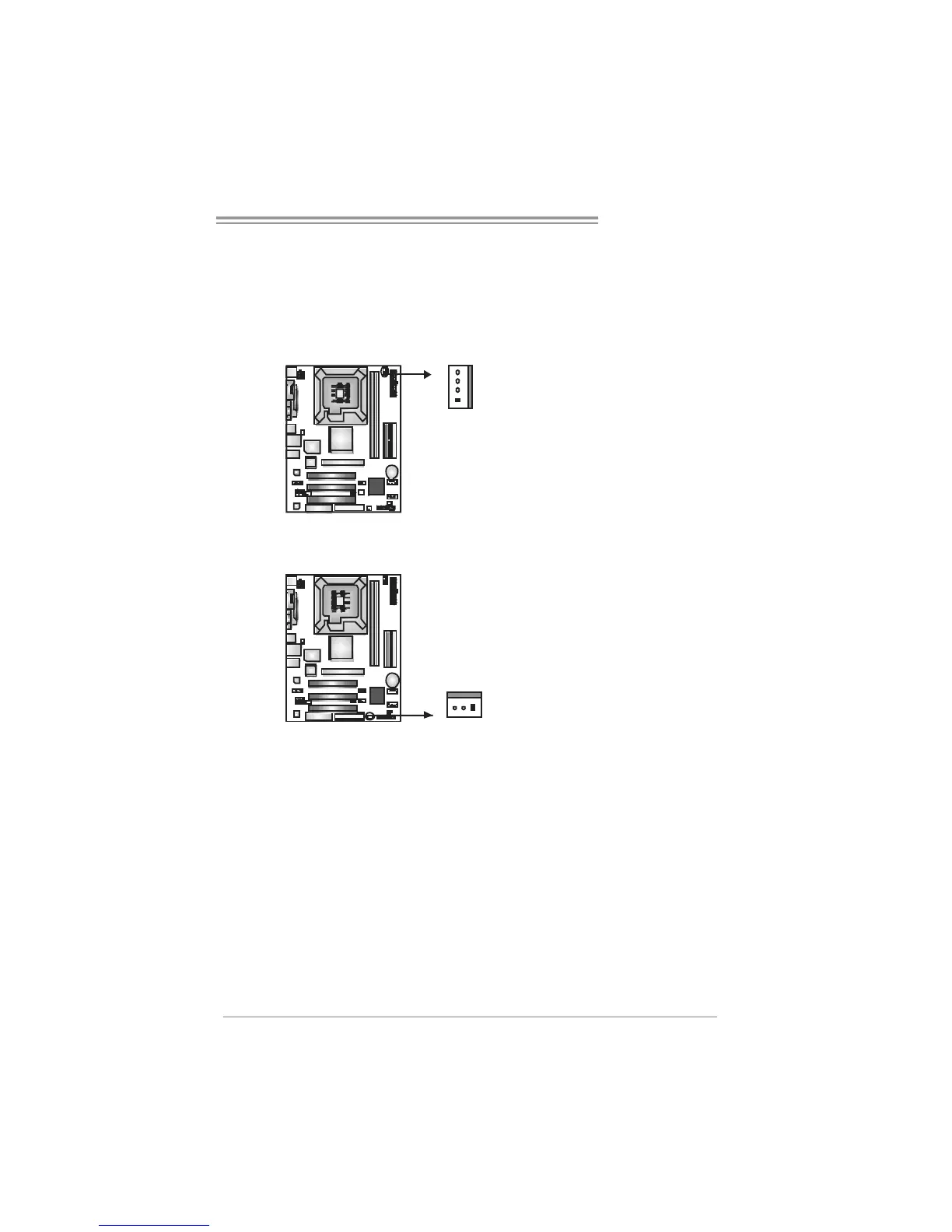

2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
JCFAN1: CPU Fan Header
Pin
Assignment
1 Ground
2 +12V
3 FAN RPM rate
sense
1
4
JCFAN1
4 Smart Fan
Control
JSFAN1: System Fan Header
Pin
Assignment
1 Ground
2 +12V
13
JSFAN1
3 FAN RPM rate
sense
Note:
The JSFAN1 s upport 3-pi n head connec tor. When c onnecti ng with wires ont o connec tors,
pleas e note that t he red wire is the positi ve and s hould be c onnected to pin#2, and the
blac k wire is Ground and s hould be c onnect ed to GND.
