P4M800 Pro-M7
5
SPEC
Front Audi o Co nnector x1 Supports front panel a udio function
CD-in Co nnector x1 Supports CD au dio-in f unction
S/PDIF out connector x1 Supports digital audio out function
CPU Fan hea der x1 CPU Fan power s upply (with Smart Fa n f unction )
System Fan hea der x1 System Fan Power supply
Chassis open header(optional) x1 For chassis intruder detection function
Clear CMO S head er x1 Restore CMO S data to factory d efa ult
USB connector x2 Each connector supports 2 front panel USB ports
Power Connector (20pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
Serial Port x1
Printer Port x1
VGA Port x1
LAN port x1
USB Port x4
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/ 2 Mo use
Provide RS- 232 Serial connection
Connects to various types of device
Connects to mo nitor.
Connects to RJ-45 ethernet cable
Connects to USB devices
Provide Audio-In/O ut a nd microph one co nnection
Board Siz e 201 mm (W) x 24 4 mm (L) Micro ATX form Fac tor
Special
Features
RAID 0 / 1 support
OS
Support
Windows 2000 / XP
Biostar Reserves the right to add or remove
support for any OS with or without notice.

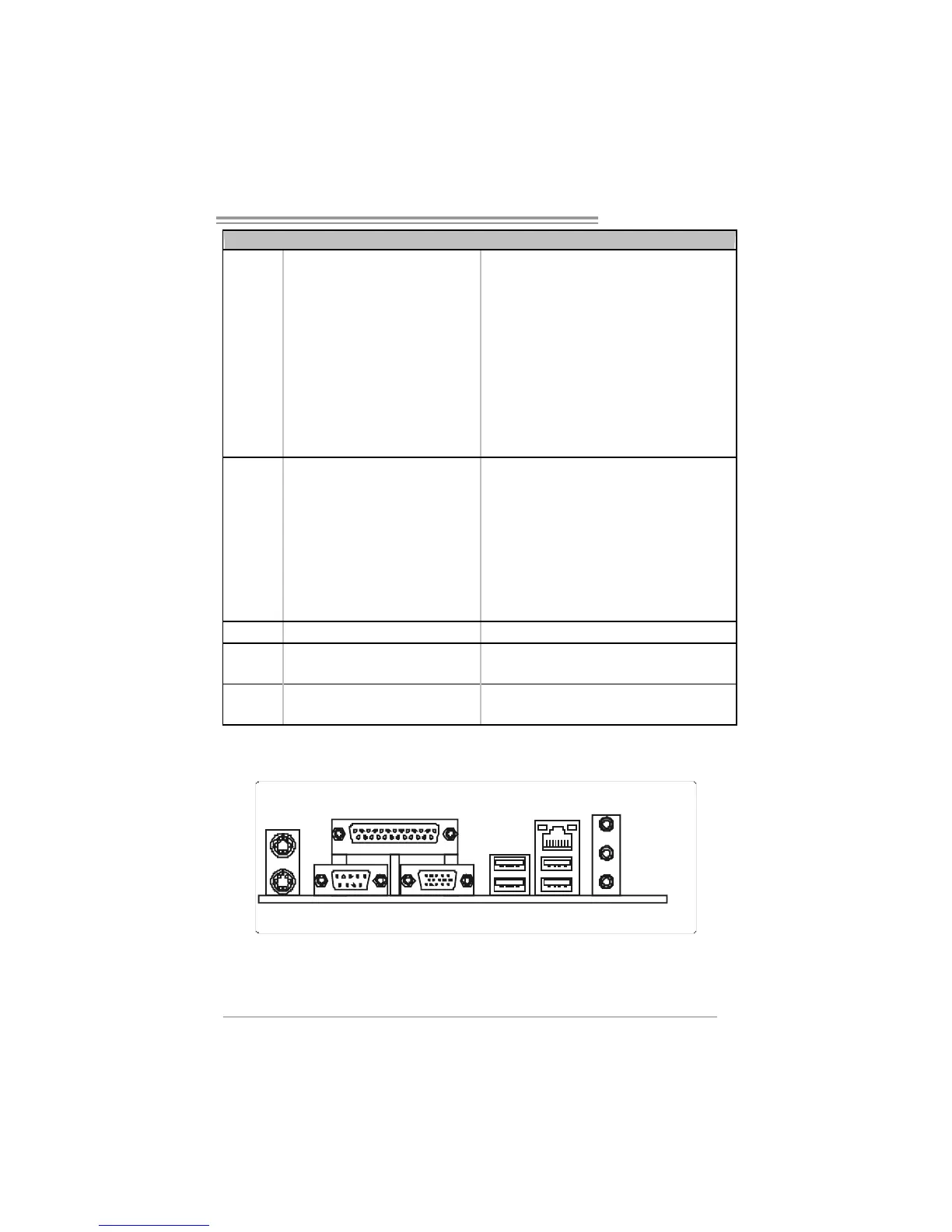

1.4 REAR PANEL CONNECTORS
PS/2
Mouse
PS/2
Keyboard
COM1 VGA1 USBX2USBX2
LAN
Line In/
Surround
Line Out
Mic In 1/
Ba ss/ Center
Printer Po rt
To Next Page
