Bird Model 5000 Digital Power Meter
4
Display Description

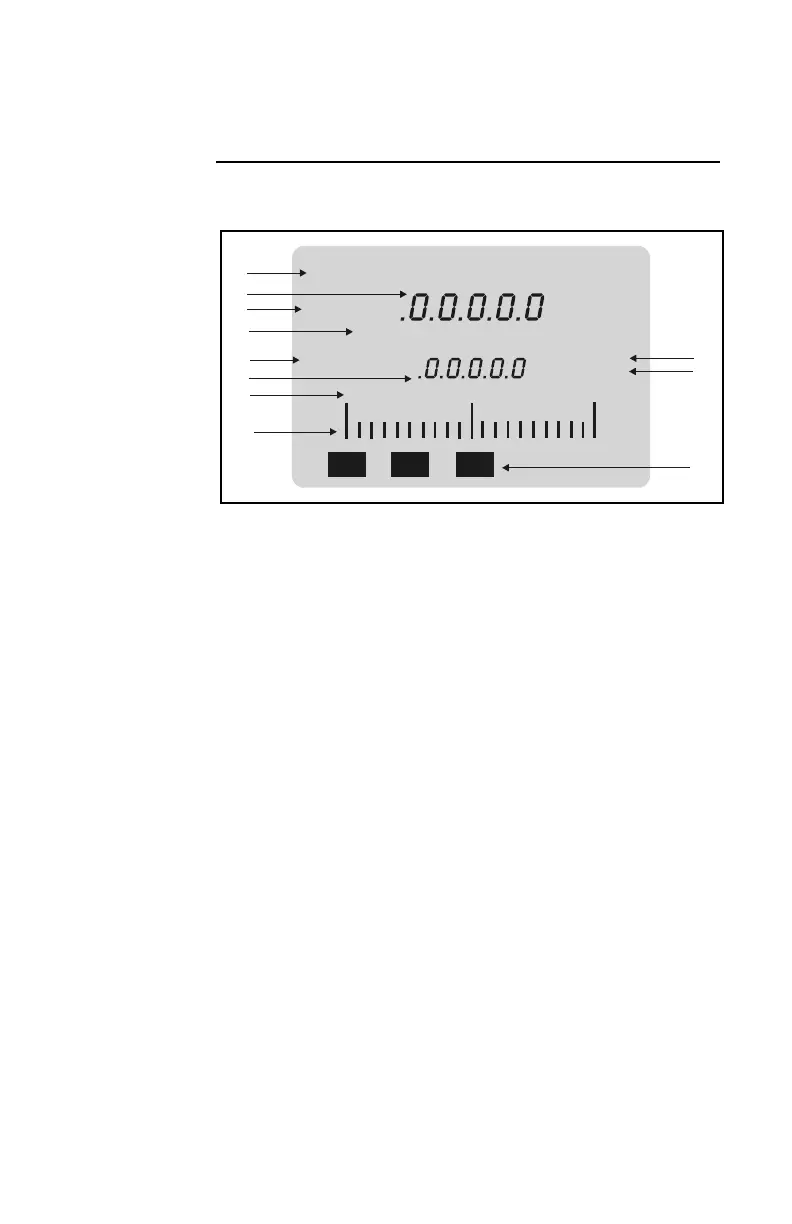

Figure 3 Display Description
1. Field Indicator Indicates the type of power
being measured.
2. Major Display Displays forward power or
match efficiency, rho, VSWR, or
return loss.
3. Major Display
Annunciator
Indicates function being
measured.
4. Major Display Unit Unit of measure for the major
display.
5. Minor Display Displays reflected power or
match efficiency, rho, VSWR, or
return loss.
6. Minor Display
Annunciator
Indicates function being
measured.
7. Minor Display Unit Unit of measure for the minor
display.
Scale
Fwd
Units
Rfl
Units
True Avg Power
MAX
Fwd
MIN
Overrange
Low Bat
Match Eff% Rho VSWR dBr RL dBm W mW KW µ
Match Eff% Rho VSWR dBr RL dBm W mW KW µ
Dpm
Rfl
Sens
1
2
3
4
5
6
7
8
9
1
0
1
1
