BIRO AFMG-52 - Standard and Optional Bowl Assemblies

19

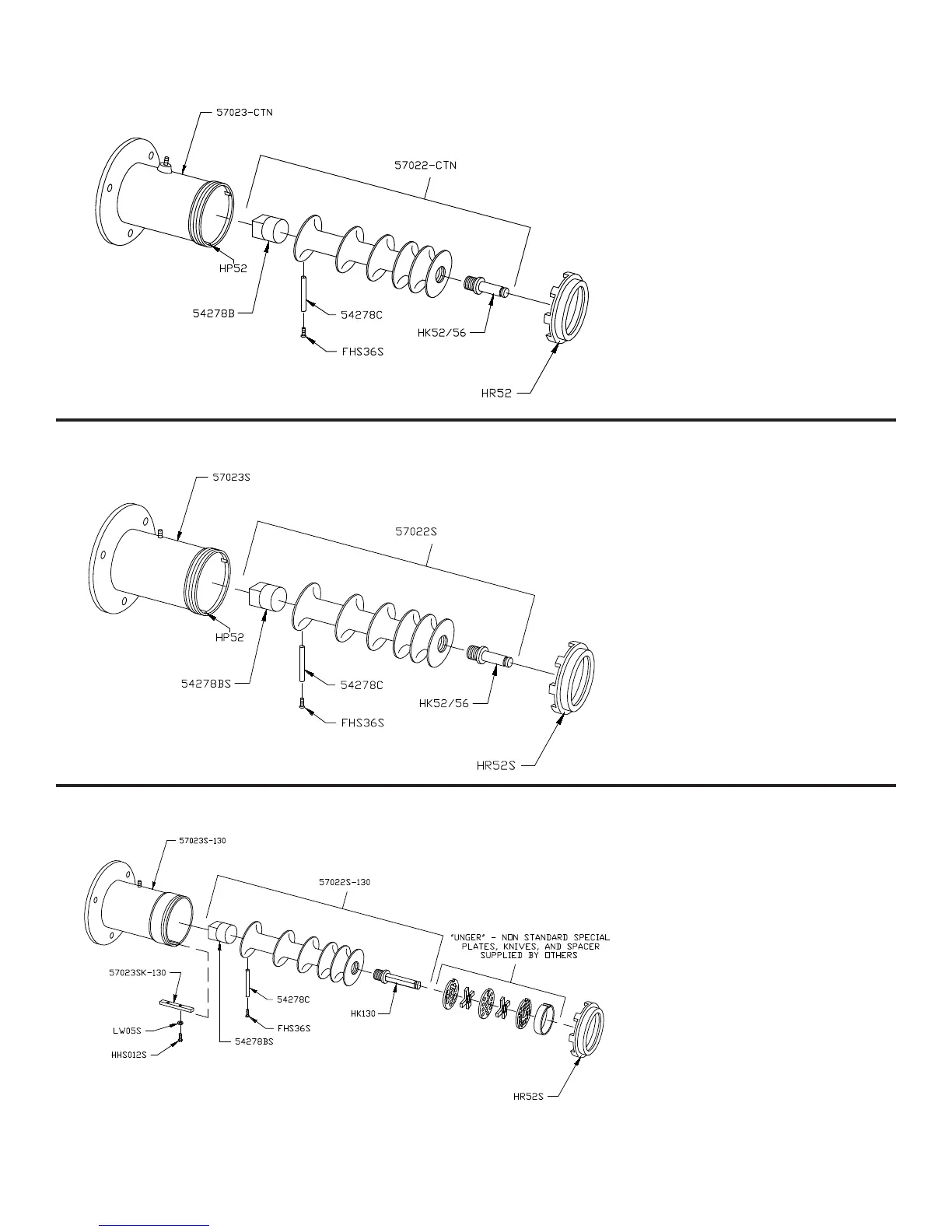

STANDARD “ENTERPRISE” BOWL ASSEMBLY
(SINGLE KNIFE & SINGLE PLATE)
OPTIONAL STAINLESS STEEL “ENTERPRISE” BOWL ASSEMBLY
(SINGLE KNIFE & SINGLE PLATE)
OPTIONAL STAINLESS STEEL “UNGER” BOWL ASSEMBLY
(NON-STANDARD MULTI KNIVES & PLATES)
Description
Item No.
54278B
Square drive auger adapter
54278C
Auger shear pin
57022-CTN
Auger assembly complete
57023-CTN
Bowl with plate pins
FHS36S
Shear pin fasteners ¼-20 x 1, SS
HK52/56
Knife drive pin, coarse thread
HP52
Bowl plate pin ( 3 req.)
HR52
Bowl ring
Description
Item No.
MC52-17
Knife, 4 blade
MC52-18-125
Plate, ⅛” Holes (3.5 mm)
MC52-18-156
Plate,
5
/32” Holes (4.0 mm)
MC52-18-187
Plate,
3
/16” Holes (5.0 mm)
MC52-18-375
Plate, ⅜” Holes (9.0 mm)
OPTIONAL “ENTERPRISE” SIZE 52
SINGLE KNIFE & SINGLE PLATE
Description
Item No.
54278BS
Square drive auger adapter, SS
54278C
Auger shear pin
57022S
Auger assembly complete, SS
57023S
Bowl with plate pins, SS
FHS36S
Shear pin fasteners ¼-20 x 1, SS
HK52/56
Knife drive pin, coarse thread
HP52
Bowl plate pin ( 3 req.)
HR52S
Bowl ring, SS
Description
Item No.
MC52-17
Knife, 4 blade
MC52-18-125
Plate, ⅛” Holes (3.5 mm)
MC52-18-156
Plate,
5
/32” Holes (4.0 mm)
MC52-18-187
Plate,
3
/16” Holes (5.0 mm)
MC52-18-375
Plate, ⅜” Holes (9.0 mm)
OPTIONAL “ENTERPRISE” SIZE 52
SINGLE KNIFE & SINGLE PLATE
Description
Item No.
54278BS
Square drive auger adapter, SS
54278C
Auger shear pin
57022S-130
Auger assembly, SS, 130mm Unger
57023S-130
Bowl, SS, 130mm Unger
FHS36S
Shear pin fastener ¼-20 x 1, SS
57023SK-130
HHS012S
Hex head screw, 10-32 x ½, SS
HK130
Bowl ring, SS
HR52S
Key, 130mm Unger
LW05S
Lock washer #10, SS
Knife drive pin, 130mm Unger
130mm UNGER
NOTE:
THE UNGER SYSTEM IS NON-STANDARD, IT UTILIZES MULTIPLE KNIVES & PLATES AT A TIME.
WHEREAS A STANDARD SYSTEM USES ONE OF EACH. PROVIDE SERIAL NUMBER WHEN ORDERING.
