BIRO AFMG-52 - Tandem Operation Parts (From S;N 52345)

22
ITEMS REQUIRED
FOR TANDEM OPERATION
USED ON ALL UNITS UP TO SERIAL No. 52344
PLEASE NOTE - THESE ARE DESIGNED
TO WORK ON BIRO EQUIPMENT ONLY
272-7-1
Knob, 3 point,
5
/16-18
From 24/42/46/48 to 24/48/52 inlet
57044
Connecting bracket, AFMG-52 to AFMG-48
and AFMG-52 to AFMG-52
53552-1A
Connecting bracket assembly, less seal/horn
53604
Discharge horn less seal, 52 to 24/48/52 inlet
53667
Discharge horn less seal, 56 to 24/48/52 inlet
53671
Seal only, 24/42/46/48 to 24/48/52 inlet
53673
Discharge horn assembly 48-52 w/seal
53933
Seal only, 52/56 to 24/48/52 inlet
56135-1
Chub packing discharge horn 52 to 3½ dia.
53489
Discharge horn less seal

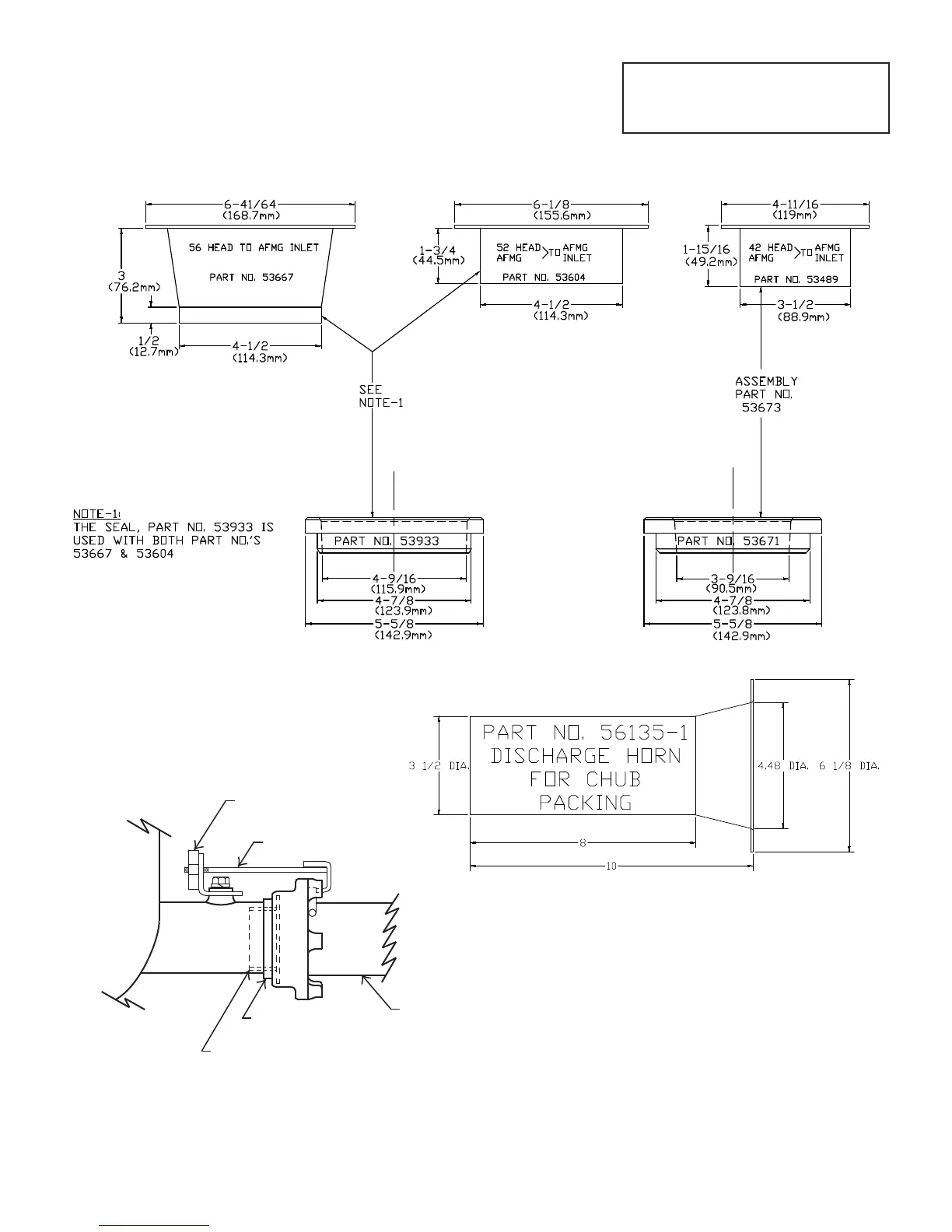

TANDEM OPERATION PART LIST
includes 53489 & 53671
BIRO MANUAL TO BIRO AFMG-52
BIRO AFMG-52 TO BIRO AFMG-48
BIRO AFMG-52 TO BIRO AFMG-52
HOPPER
INPUT
FEED TUBE
SEAL
DISCHARGE HORN
(MUST SPECIFY SIZE
OF No. 1 FEED GRINDER
BOWL)
BOWL OF
No. 1 FEED
GRINDER
ITEM No. 53552-1A
ITEM No. 272-7-1
