BIS TRADITION - 4.2 Chimney Installation Instructions

27

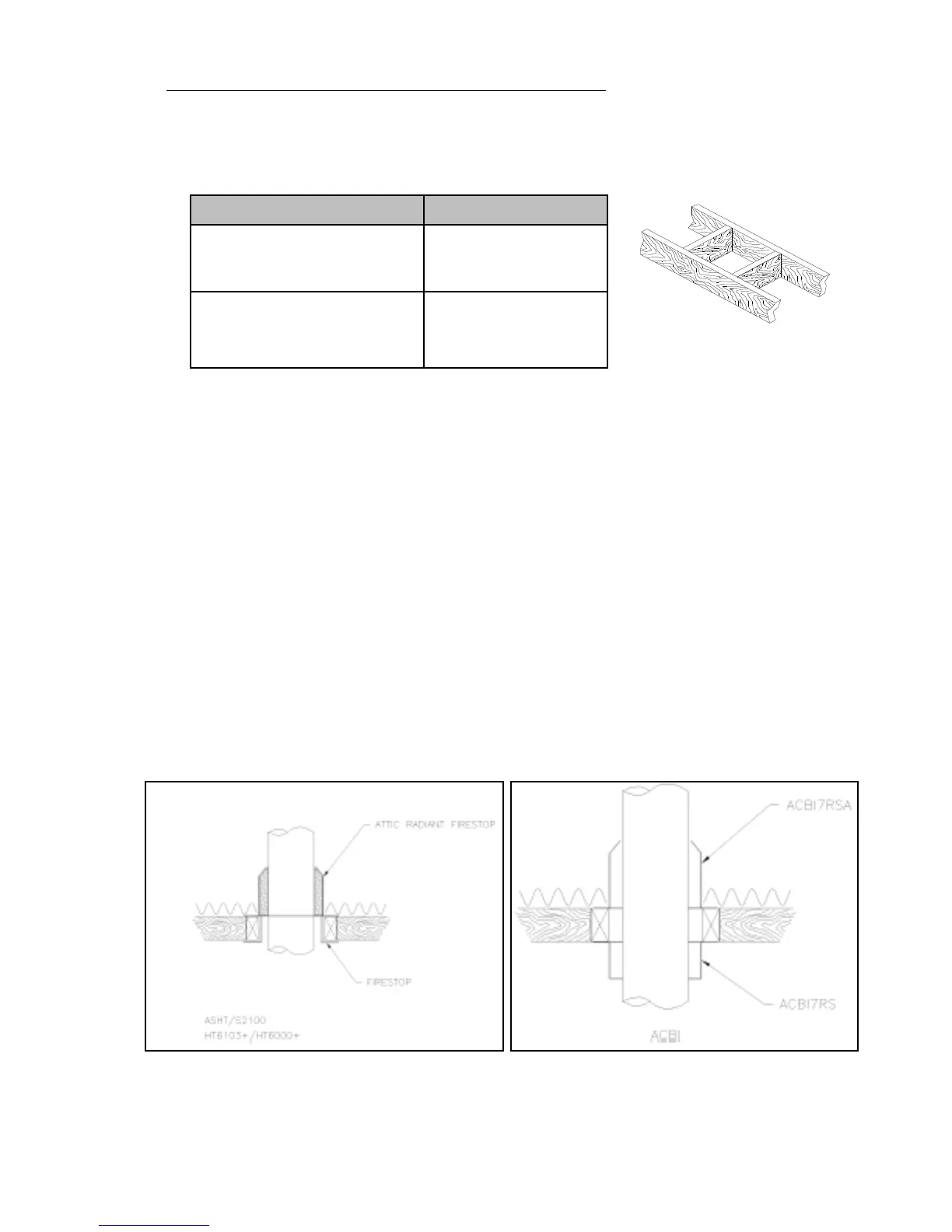

4.2 CHIMNEY INSTALLATION INSTRUCTIONS
1. Cut and frame the holes in the ceiling, floor and roof where the chimney will pass (see figure
27). Use a plumb bob to line up the centre of the holes. The sizes are indicated in table 1 for
the floor and ceiling holes and table 2 (page 28) for the roof holes.
CHIMNEY MODEL
HOLE SIZE
Secure Temp
S2100+
Nova Temp
HT6000+
Secure Temp
GX
15 in. (380 mm)
ACBI :
Ceiling
(1” clearance)
Wall
15 in. (380 mm)
17 in. (432 mm)
Table 1
From below, install a firestop in each ceiling/floor separation through which the chimney
will pass. At the attic level, install an attic radiation shield from above. (figures 28 & 29).
2. For Secure Temp
S2100+
/ Nova Temp
HT6000+
/ Secure Temp
GX
chimneys, place the first
chimney length on the fireplace. To lock it in place, turn _ of a turn clockwise. With the
ACBI chimney, you must use a starter section before installing the first chimney length
(figure 30). Continue installing chimney lengths making sure to lock each length in place.
3. Every time the chimney passes through a ceiling or a wall, install the appropriate firestop.
When you reach the desired height, install the roof support. (Refer to instructions included
with the support). For an ACBI chimney use an universal support AC10SU.
4. Put the roof flashing in place and seal the joint between the roof and the flashing with
roofing pitch. (see figures 31 & 32). For sloping roofs, place the flashing under the upper
shingles and on top of the lower shingles. Nail the flashing to the roof, using roofing nails.
5. Place the storm collar over the flashing, and tighten it with the bolt supplied. Finally, seal
the joint between the storm collar and the chimney, using silicone caulking.
6. Install the chimney cap.
Figure 27
Figure 28
Figure 29
