Table 2
ROOF DOWN SLOPE HOLE SIZE
Secure Temp
S2100+
Nova Temp
HT6000+
Secure Temp
GX
ACBI
DEGREE OF
SLOPE
7"
7"
0 *
15" (380 mm)
15" (380 mm)
2/12
15 3/8" (390 mm)
15 3/8" (390 mm)
4/12
16 1/8" (410 mm)
16 1/8" (410 mm)
6/12
16 7/8" (430 mm)
16 7/8" (430 mm)
8/12
18 _" (465 mm)
18 _" (465 mm)
10/12
19 5/8" (500 mm)
19 5/8" (500 mm)
12/12
21 3/8" (545 mm)
21 3/8" (545 mm)
* CROSS SLOPE HOLE SIZE
CHIMNEY MODEL ACBI

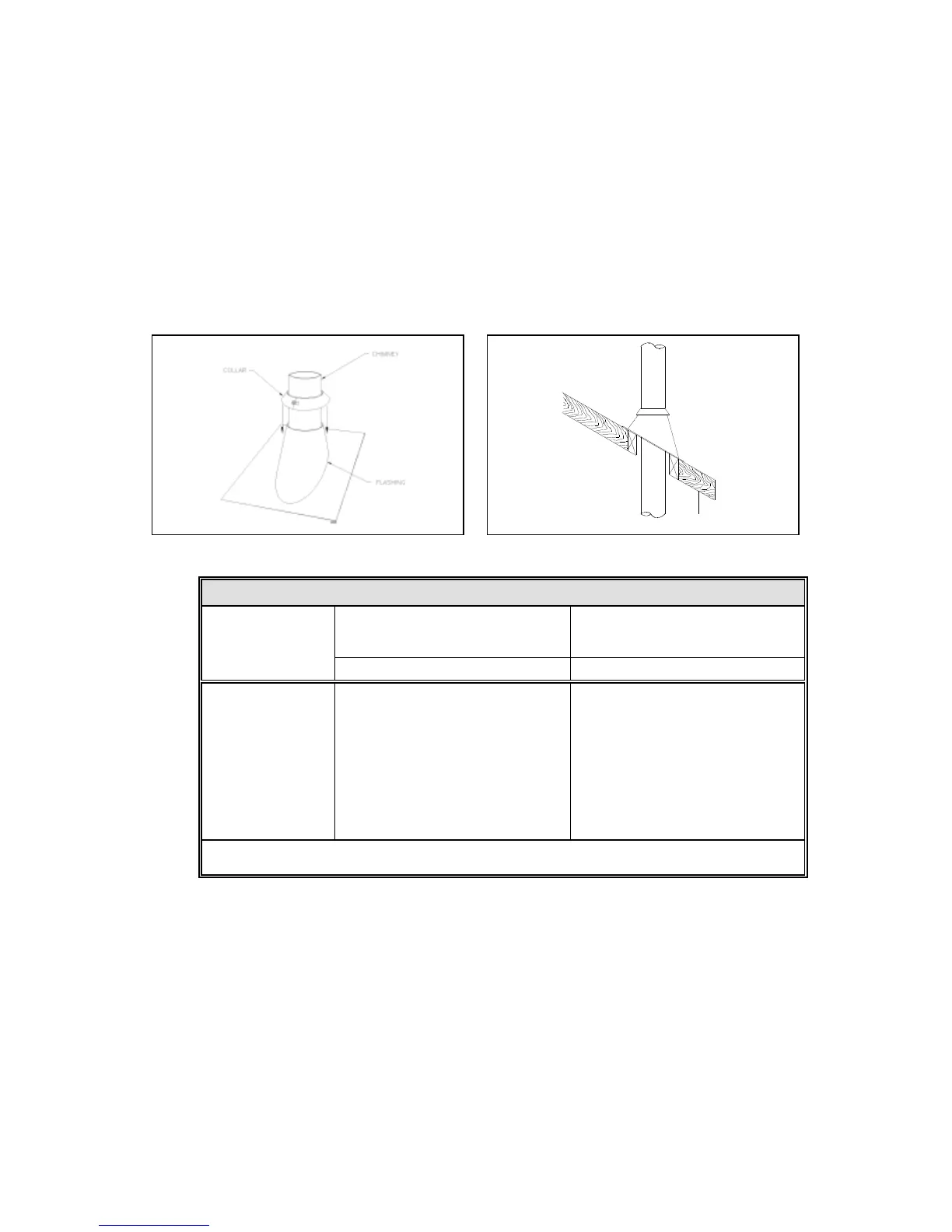

Figure 31
Figure 32
