BIS Ultima - Chimney Adaptor (S-2100+; Ht6000+)

31

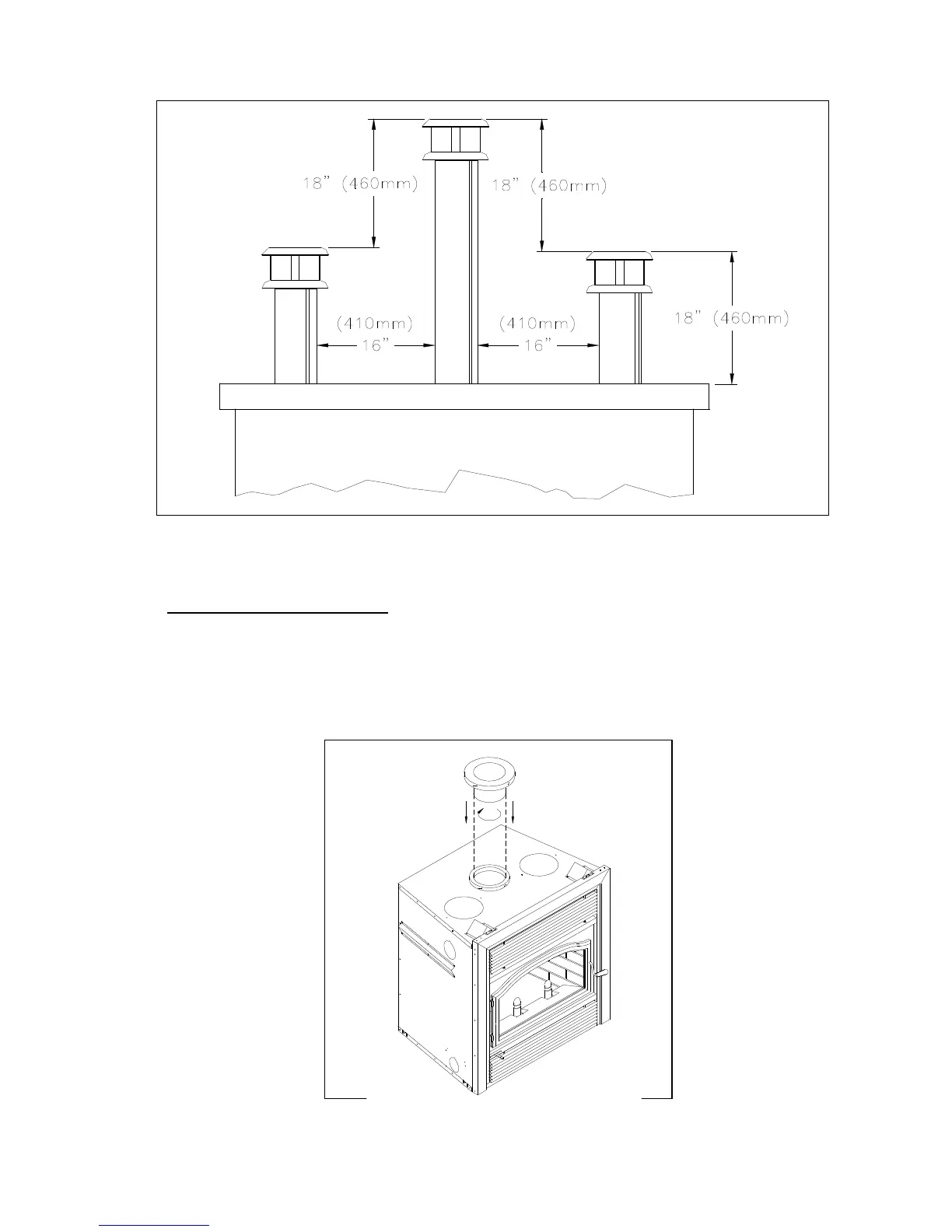

Figure 34
4.7 CHIMNEY ADAPTOR (S-2100+ / HT6000+)
The fireplace is normally supplied with a chimney adaptor suitable for the ASHT+ /
HT6103+ chimney. If you want to install a S-2100+ / HT6000+ chimney, an adaptor is
available (6UCA) (figure 35). A separate starter section will also be required if AC
chimney is installed.
Figure 35
