BIXOLON SPP-R200II Connection Manual

Rev. 1.00
- 13 -
Mobile Printer
4-3 Initial Wireless LAN Connection (Windows VISTA, Windows 7)
When wireless utility program is installed, you have to set the wireless control values
via the program, otherwise you have to terminate the program in order to do proper
setting after following the steps 'Control Panel>>Administrative tools>>
Services>>Wireless Zero Configuration>>Start'.

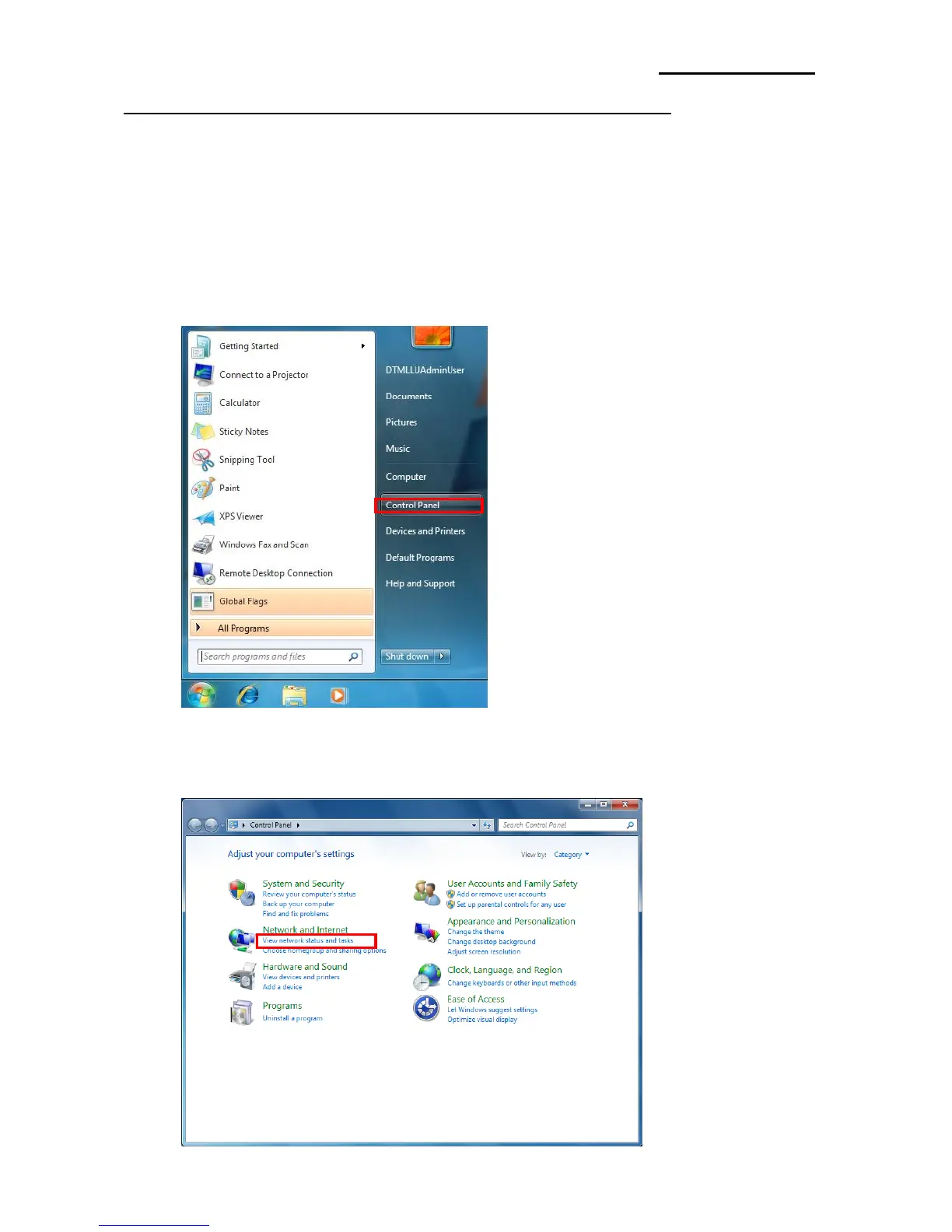

1) Click the “Start>>Conftrol Panel”.
2) Click the “View network status and tasks”.

BIXOLON SPP-R200II Specifications

General

Type	Mobile printer
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Compatible operating systems	Windows XP/Vista/Server 2003/2008/7/8\\r OPOS\\r Linux CUPS
Flash memory	32 MB
Internal memory	64 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Maximum printing width	50 mm
USB port	Yes
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Dimensions (WxDxH)	79.5 x 43.6 x 126.7 mm
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	10 - 80 %
Ethernet LAN	No
Battery voltage	7.4 V
Power source type	Battery
Battery life (max)	6.2 h
