BIXOLON SPP-R200II Connection Manual

Rev. 1.00
- 34 -
Mobile Printer
6. SNMP
SNMP supports MIB-2
When mobile printer booting, Trap provides Coldstart Trap message transmission function
to trap server. To know about SNMP, SNMP should be enable and SNMP server and
community name should be same.
You can use the web browser, telnet, or ftp to enable the SMTP.
(Refer to Configuration)

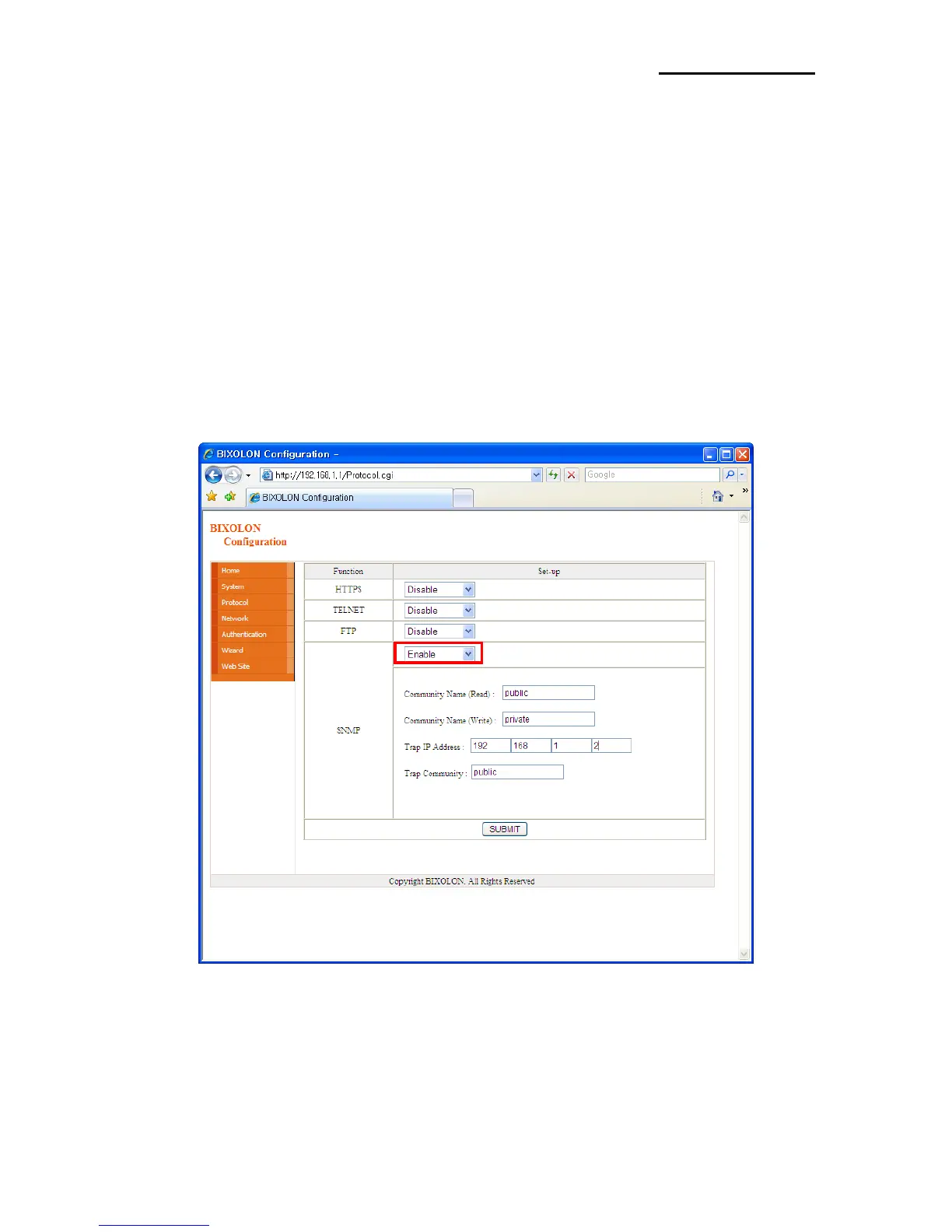

Using Web Browser
Connect to the printer web-server. (Enter the IP address of the printer in the address bar.)
Select LAN or WLAN configuration, and then select the Protocol tab.

BIXOLON SPP-R200II Specifications

General

Type	Mobile printer
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Compatible operating systems	Windows XP/Vista/Server 2003/2008/7/8\\r OPOS\\r Linux CUPS
Flash memory	32 MB
Internal memory	64 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Maximum printing width	50 mm
USB port	Yes
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Dimensions (WxDxH)	79.5 x 43.6 x 126.7 mm
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	10 - 80 %
Ethernet LAN	No
Battery voltage	7.4 V
Power source type	Battery
Battery life (max)	6.2 h
