BIXOLON SPP-R200II Connection Manual

Rev. 1.00
- 31 -
Mobile Printer

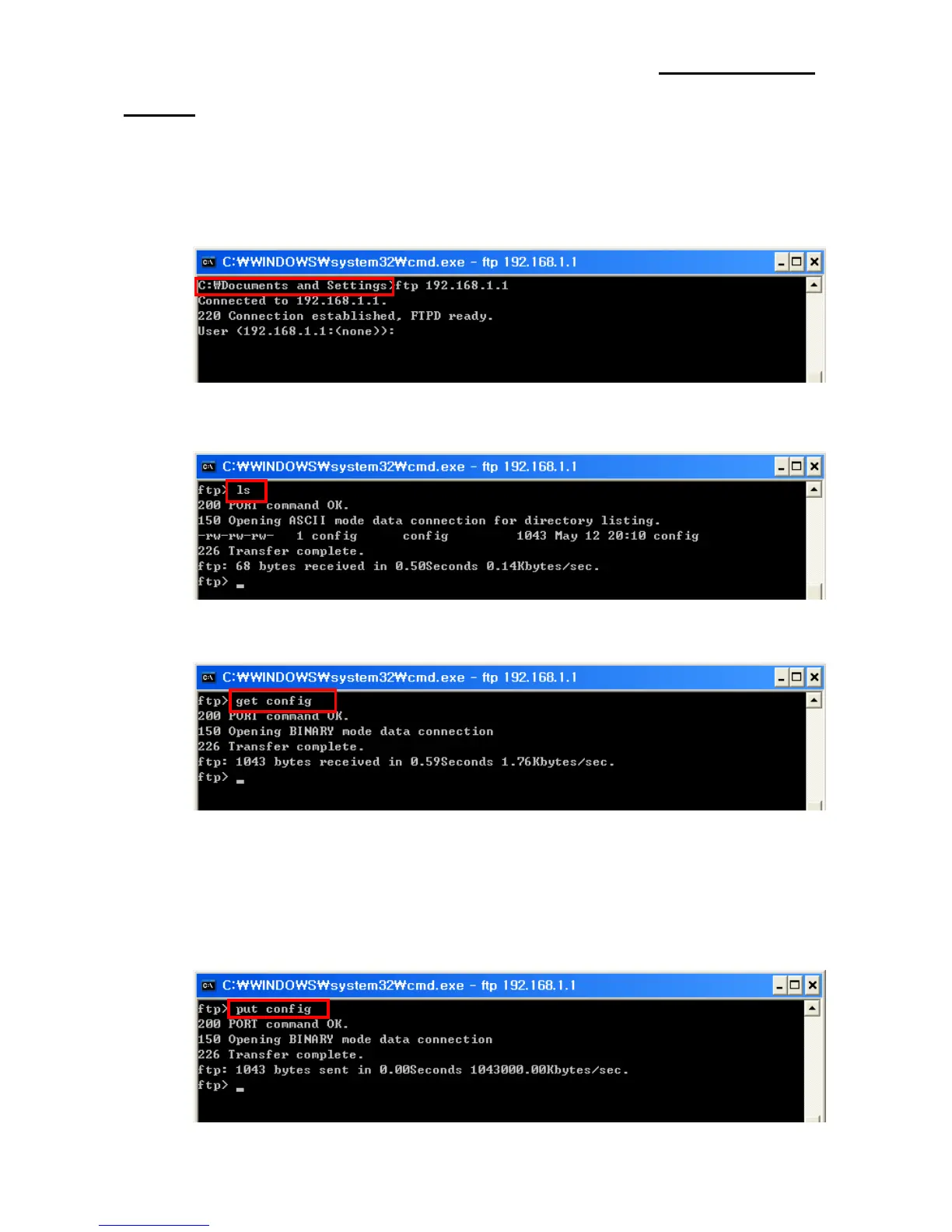

5-4 FTP
The configuration files will be downloaded and uploaded to and from the current path. In
the following case, the current path is “C:\Documents and Settings”.
Enter “ftp Printer IP”, and enter the ID and Password set for the printer.
Enter the “ls” command to check the file name to download.
Enter “config” to download the configuration file.
You can see that the “config” file is created in the corresponding directory.
Enter “put config” command if you want to upload the configuration file in the
corresponding directory for the printer.

BIXOLON SPP-R200II Specifications

General

Type	Mobile printer
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Compatible operating systems	Windows XP/Vista/Server 2003/2008/7/8\\r OPOS\\r Linux CUPS
Flash memory	32 MB
Internal memory	64 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Maximum printing width	50 mm
USB port	Yes
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Dimensions (WxDxH)	79.5 x 43.6 x 126.7 mm
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	10 - 80 %
Ethernet LAN	No
Battery voltage	7.4 V
Power source type	Battery
Battery life (max)	6.2 h
