BIXOLON SPP-R200II Connection Manual

Rev. 1.00
- 44 -
Mobile Printer
Ping TEST
- Turn off the printer.
- Select “Run” from the Windows Start menu, and then enter “cmd”.
- Enter “ARP –d” and delete ARP table.
- Enter “ping {printer IP}”.
- ARP –d, ping {IP address}

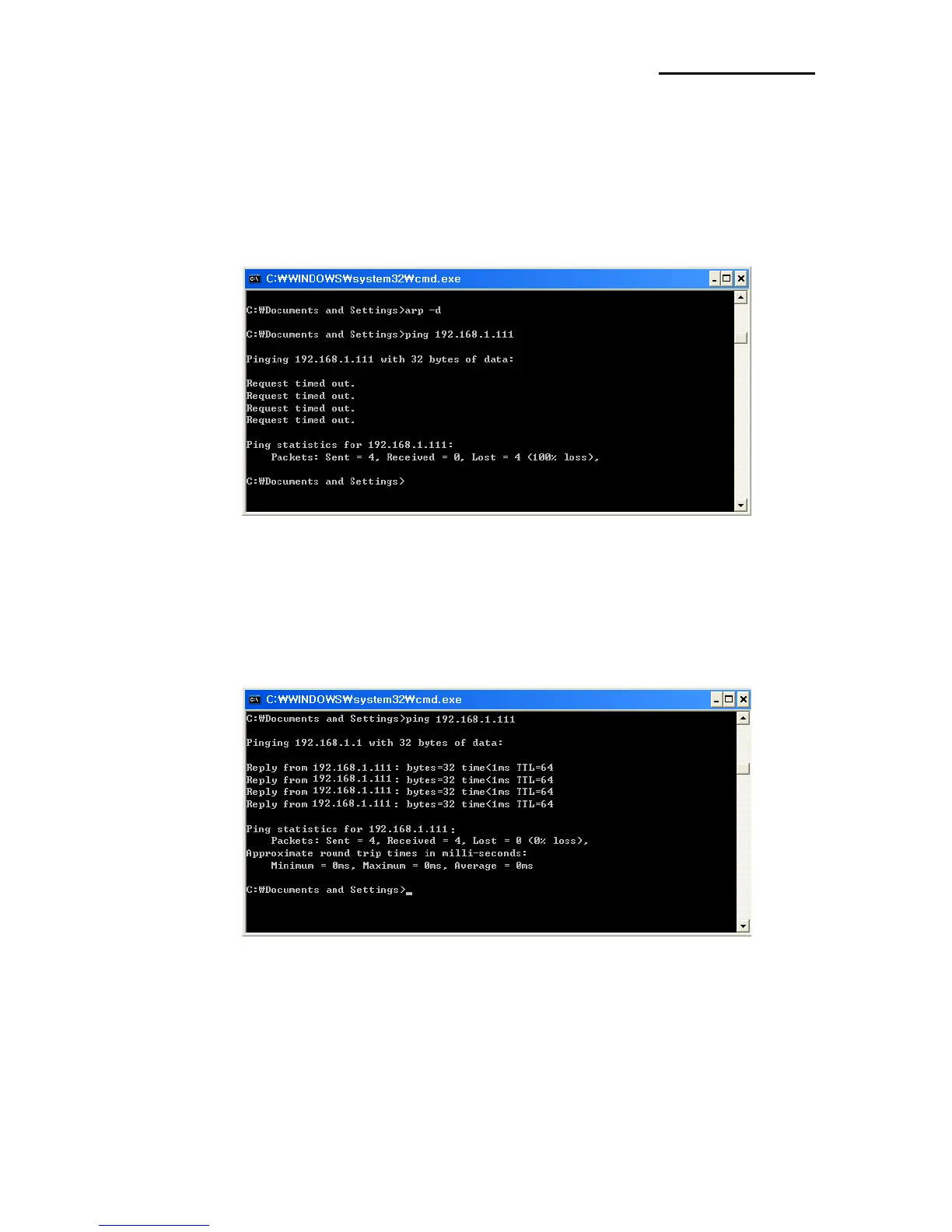

When you see “Request timed out.” as shown below, it means that there is
no collision. The corresponding IP can be used.
On the other hand, if there is a reply as shown below, then the
corresponding IP is used by another network terminal and it cannot be
used for the printer IP.
Inactivity Time
If multiple host devices are used with one printer, “Inactivity Time” is
recommended. (Other host devices are restricted to use a printer if one host
device keep connecting to a printer.), ex> 5sec

BIXOLON SPP-R200II Specifications

General

Type	Mobile printer
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Compatible operating systems	Windows XP/Vista/Server 2003/2008/7/8\\r OPOS\\r Linux CUPS
Flash memory	32 MB
Internal memory	64 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Maximum printing width	50 mm
USB port	Yes
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Dimensions (WxDxH)	79.5 x 43.6 x 126.7 mm
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	10 - 80 %
Ethernet LAN	No
Battery voltage	7.4 V
Power source type	Battery
Battery life (max)	6.2 h
