Virtual COM for Ethernet Driver / Configuration Tool
Rev. 2.02
- 12 -
4-5 Virtual Serial Port Deletion

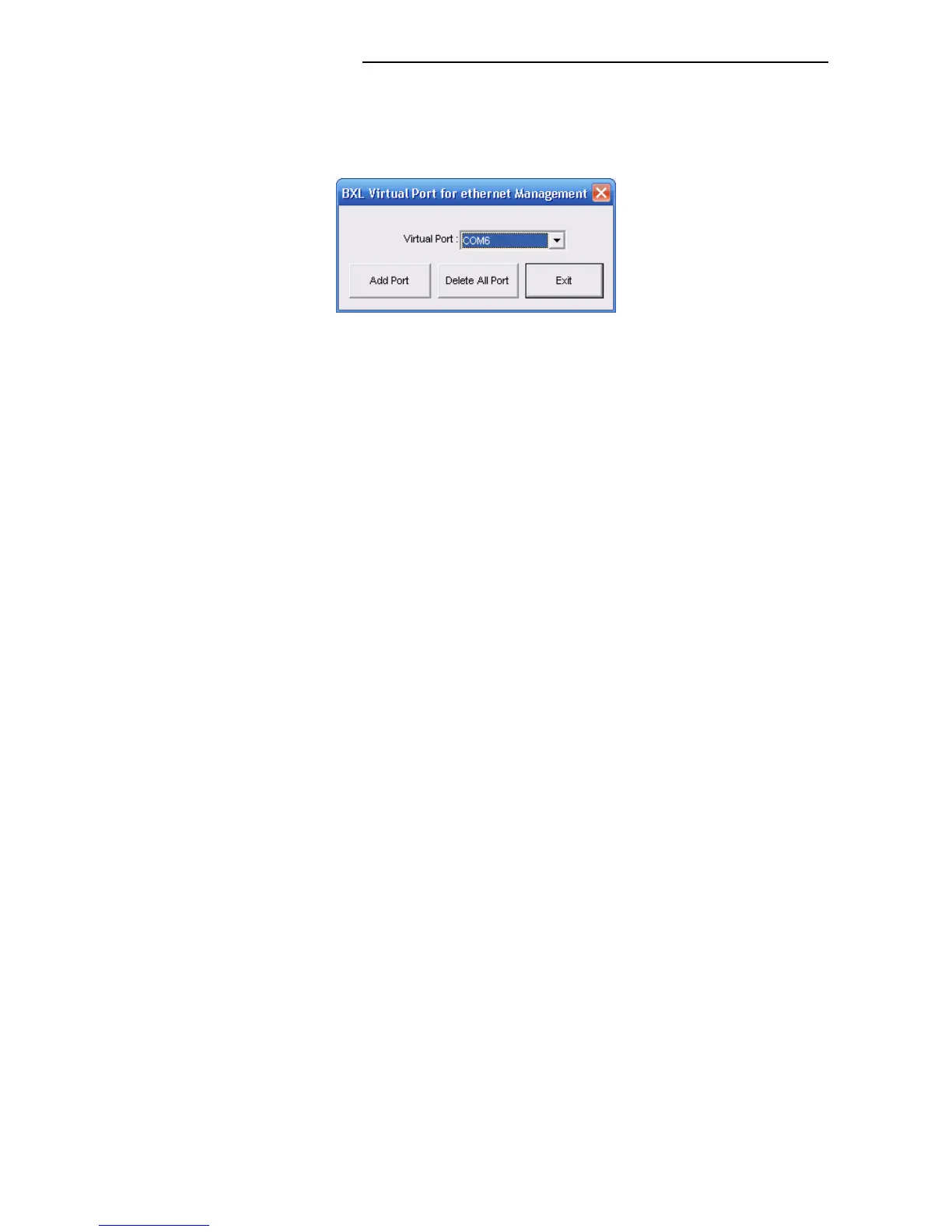

Click the “Port Management” button to delete the connection settings of virtual serial ports.
The “Delete All Port” button can be used to delete all virtual serial ports.
4-6 Firmware Update of the Ethernet Interface
1) To update the Ethernet interface firmware, the firmware update file must first
be prepared.
2) After setting the file to a specified folder, click the “Firmware Update” button.
3) The file is selected, and the Ethernet interface firmware is updated.
NOTE
- The “Firmware Update” button and its function differs from that of the printer firmware
update, and thus a different utility must be used for the firmware upgrade of the printer
itself.
- If the printer power is turned off during a firmware update, damage to the Ethernet
interface card may result.
