Virtual COM for Ethernet Driver / Configuration Tool
Rev. 2.02
- 14 -

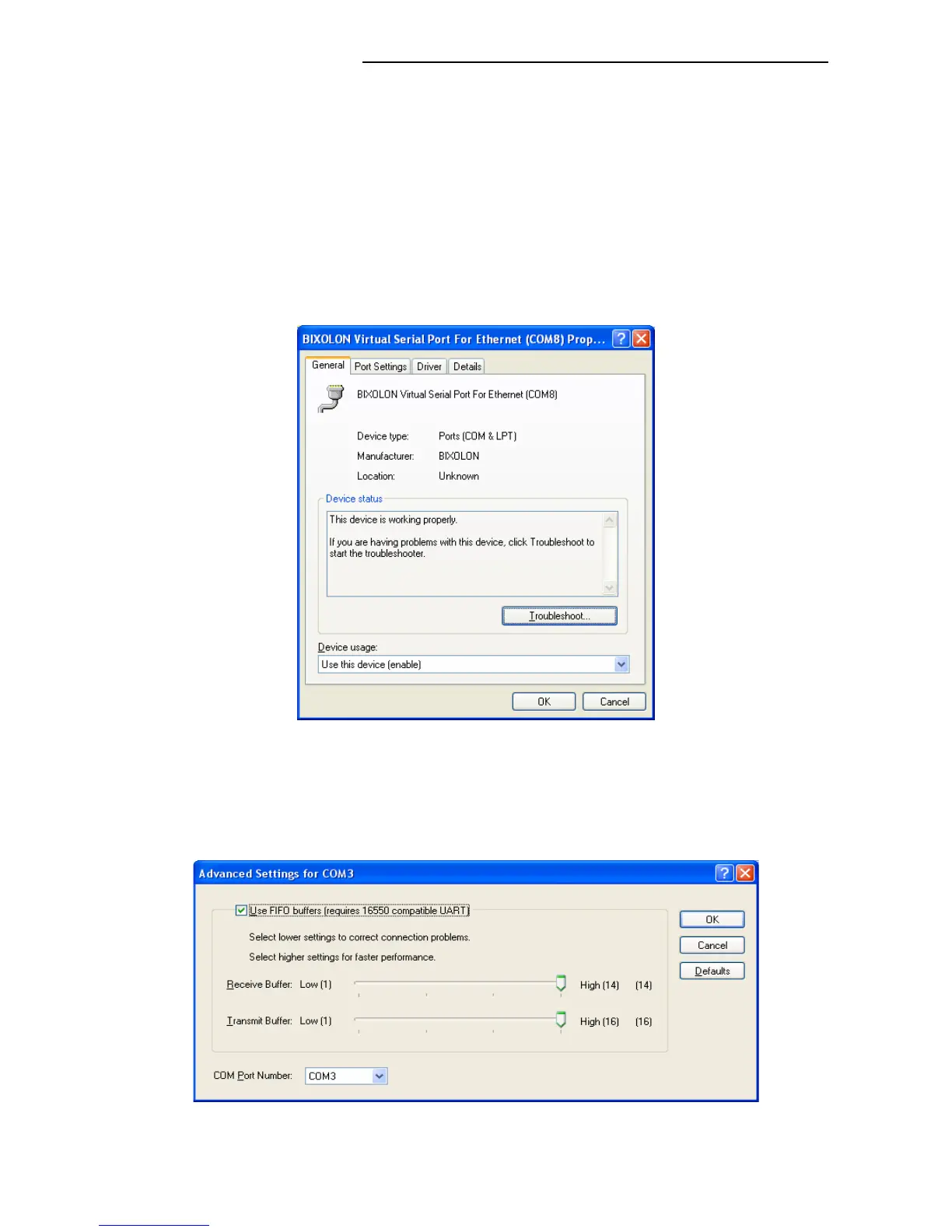

5-2 Port Setting/Number Modification Via the Device Manager
1) Select the desired virtual serial port and click the right mouse button. On the popup
menu, select “Properties”.
2) In the “Properties” window, click the “Port Settings” tab.
3) The “Port Settings” tab can be used to set the baud rate, data bits, parity, stop bits, and
flow control of a port.
4) Click the “Advanced” button to modify the port number and/or designate buffer settings.
Modification of buffer settings is not recommended. The COM port number is changed
by selecting a number in the combo box.
To Next Page
