BIXOLON SRP-275II Windows Driver Manual

SRP-275II
Rev. 1.05
- 21 -

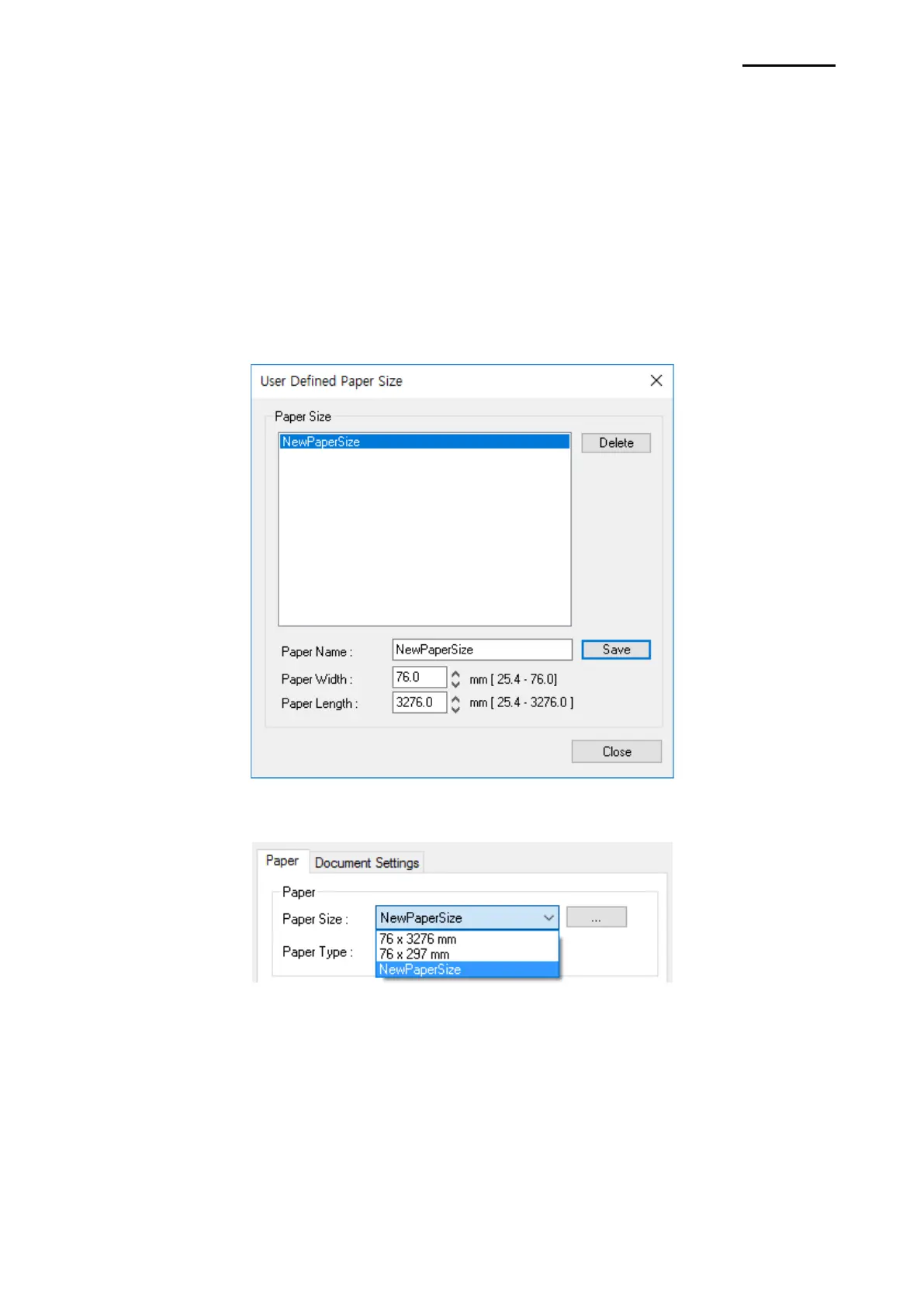

5-1-1 Paper Size
Paper size of 76 x 3276 mm is selected by default, and the following sizes can be selected.
76 � 297 mm
76 � 3276 mm
If a custom paper size is required, click “…” to add or update a custom paper size. Click
Save after specifying the paper width/length and a paper name. If the specified paper
name already exists on the system, you can update the paper width/length.
Paper Width
:
25.4 mm (Min) ~ 76.0 mm (Max)
Paper Length
:
25.4 mm (Min) ~ 3276.0 mm (Max)
You can choose the new paper size on the Paper Size combo-box after adding a paper
size.
Delete button
:
Deletes the paper size selected in the list.
Save button
:
Adds a new paper size or update the paper size selected in the list if
the paper name already exists on the system.

BIXOLON SRP-275II Specifications

General

Type	POS printer
Print speed	5.1 lps
Maximum resolution	80 x 144 DPI
Maximum roll diameter	85 mm
Supported paper width	76.5 mm
Maximum printing width	63.5 mm
Flash memory	2 MB
RAM capacity	0.008 GB
Autocutter durability	1.5 million cuts
Built-in sensors details	Paper End, Paper Near End, Wall Mounting Paper Near End, Rear Cover Open, Black Mark
AC input voltage	100-240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Mean cycles between failures (MCBF)	18000000
Product color	Black
USB port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Parallel ports quantity	1
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	239 mm
Width	160 mm
Height	157 mm
Weight	2400 g
