BIXOLON SRP-275II User Manual

Rev. 1.04
- 11 -
SRP-275II

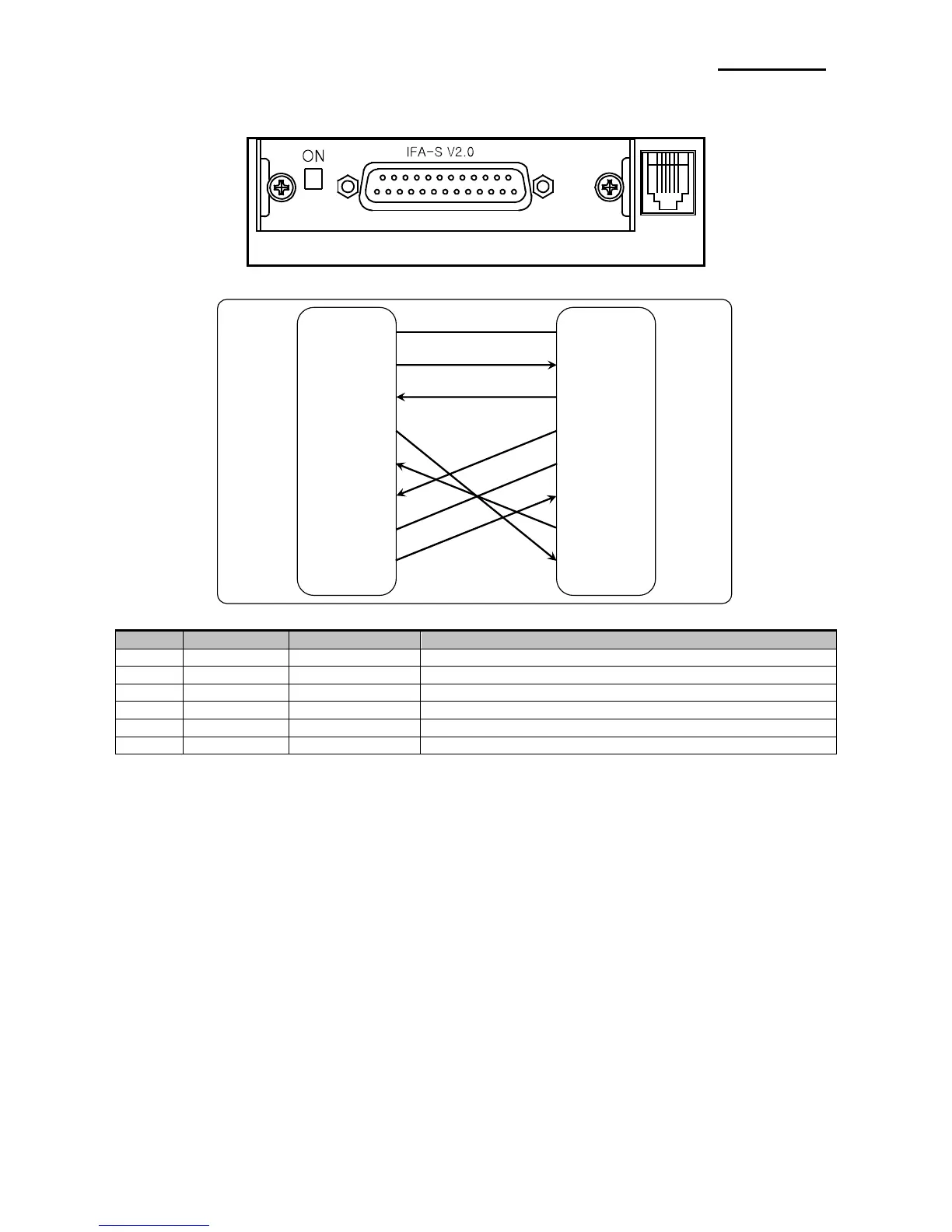

2-2-1 Serial Interface (RS-232C)
Interface connector
Drawer kick-out
Connector
(F.G) 1
(TXD) 2
(RXD) 3
(RTS) 4
(CTS) 5
(DSR) 6
(S.G) 7
(DTR) 20
1 (F.G)
2 (RXD)
3 (TXD)
4 (DTR)
5 (S.G)
6 (DSR)
7 (RTS)
8 (CTS)
PRINTER
SIDE
(25Pin)
HOST
SIDE
(9Pin)
Pin No.
Signal name
Direction
Function
1
FG
-
Frame Ground
2
TxD
Output
Transmit Data
3
RxD
Input
Receive Data
6
DSR
Input
Data Set Ready
7
SG
-
Signal Ground
20
DTR
Output
Data Terminal Ready

BIXOLON SRP-275II Specifications

General

Type	POS printer
Print speed	5.1 lps
Maximum resolution	80 x 144 DPI
Maximum roll diameter	85 mm
Supported paper width	76.5 mm
Maximum printing width	63.5 mm
Flash memory	2 MB
RAM capacity	0.008 GB
Autocutter durability	1.5 million cuts
Built-in sensors details	Paper End, Paper Near End, Wall Mounting Paper Near End, Rear Cover Open, Black Mark
AC input voltage	100-240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Mean cycles between failures (MCBF)	18000000
Product color	Black
USB port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Parallel ports quantity	1
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	239 mm
Width	160 mm
Height	157 mm
Weight	2400 g
