BIXOLON SRP-275II User Manual

Rev. 1.04
- 12 -
SRP-275II

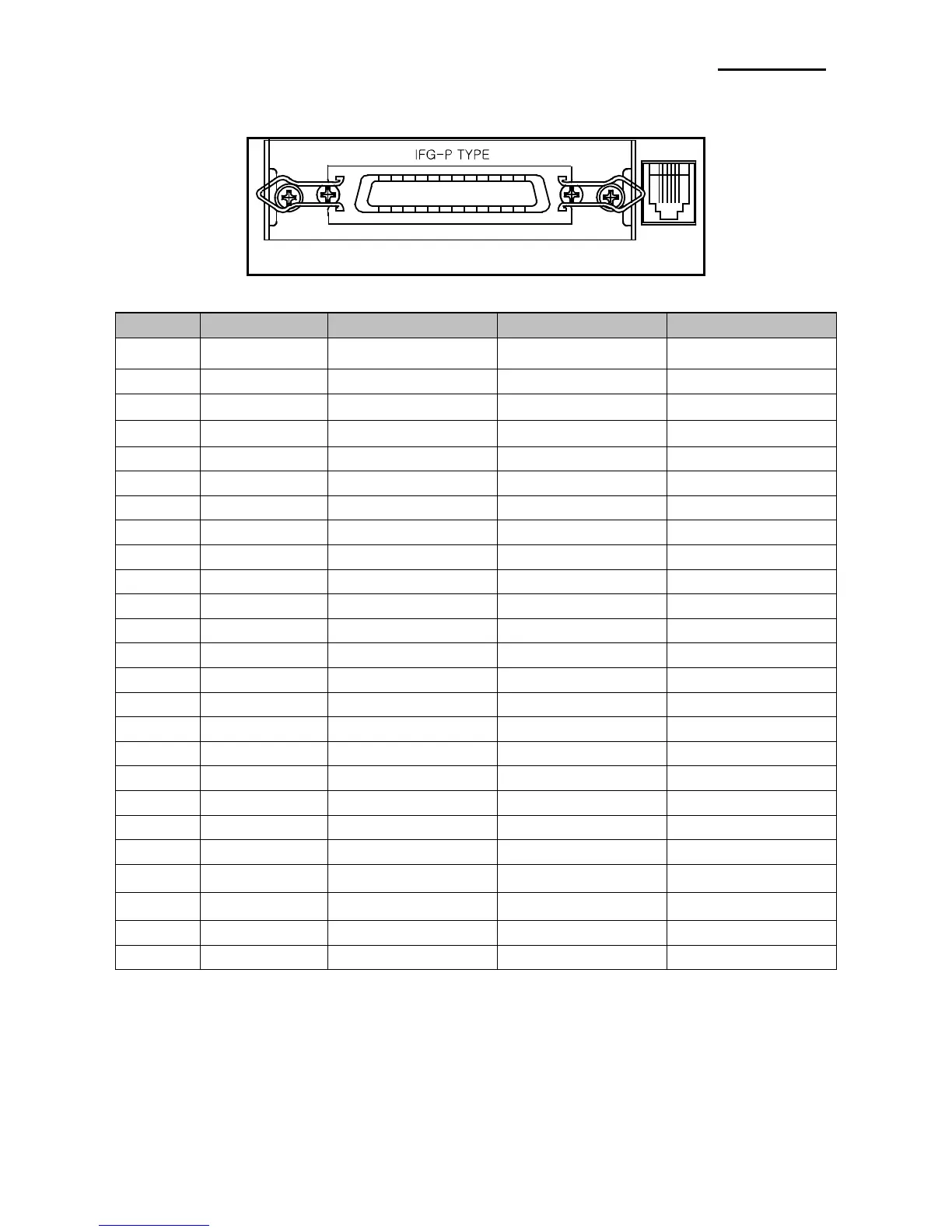

2-2-2 Parallel Interface (IEEE1284)
Interface connector
Drawer kick-out
Connector
Pin no.
Source
Compatibility mode
Nibble mode
Byte mode
1
Host
nStrobe
HostClk
HostClk
2
Host / Printer
Data 0 (LSB)
-
Data 0 (LSB)
3
Host / Printer
Data 1
-
Data 1
4
Host / Printer
Data 2
-
Data 2
5
Host / Printer
Data 3
-
Data 3
6
Host / Printer
Data 4
-
Data 4
7
Host / Printer
Data 5
-
Data 5
8
Host / Printer
Data 6
-
Data 6
9
Host / Printer
Data 7 (MSB)
-
Data 7 (MSB)
10
Printer
nAck
PtrClk
PtrClk
11
Printer
Busy
PtrBusy / Data3,7
PtrBusy
12
Printer
Perror
AckDataReq / Data2,6
AckDataReq
13
Printer
Select
Xflag / Data1,5
Xflag
14
Host
nAutoFd
HostBusy
HostBusy
15
-
NC
ND
ND
16
-
GND
GND
GND
17
-
GND
FG
FG
18
Printer
Logic-H
Logic-H
Logic-H
19~30
-
GND
GND
GND
31
Host
nInit
nInit
nInit
32
Printer
nFault
nDataAbail /
nDataAvail
33
-
NC
ND
ND
34
Printer
NC
ND
ND
35
Printer
NC
ND
ND
36
Host
nSelectln
1284-Active
1284-Active

BIXOLON SRP-275II Specifications

General

Type	POS printer
Print speed	5.1 lps
Maximum resolution	80 x 144 DPI
Maximum roll diameter	85 mm
Supported paper width	76.5 mm
Maximum printing width	63.5 mm
Flash memory	2 MB
RAM capacity	0.008 GB
Autocutter durability	1.5 million cuts
Built-in sensors details	Paper End, Paper Near End, Wall Mounting Paper Near End, Rear Cover Open, Black Mark
AC input voltage	100-240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Mean cycles between failures (MCBF)	18000000
Product color	Black
USB port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Parallel ports quantity	1
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	239 mm
Width	160 mm
Height	157 mm
Weight	2400 g
