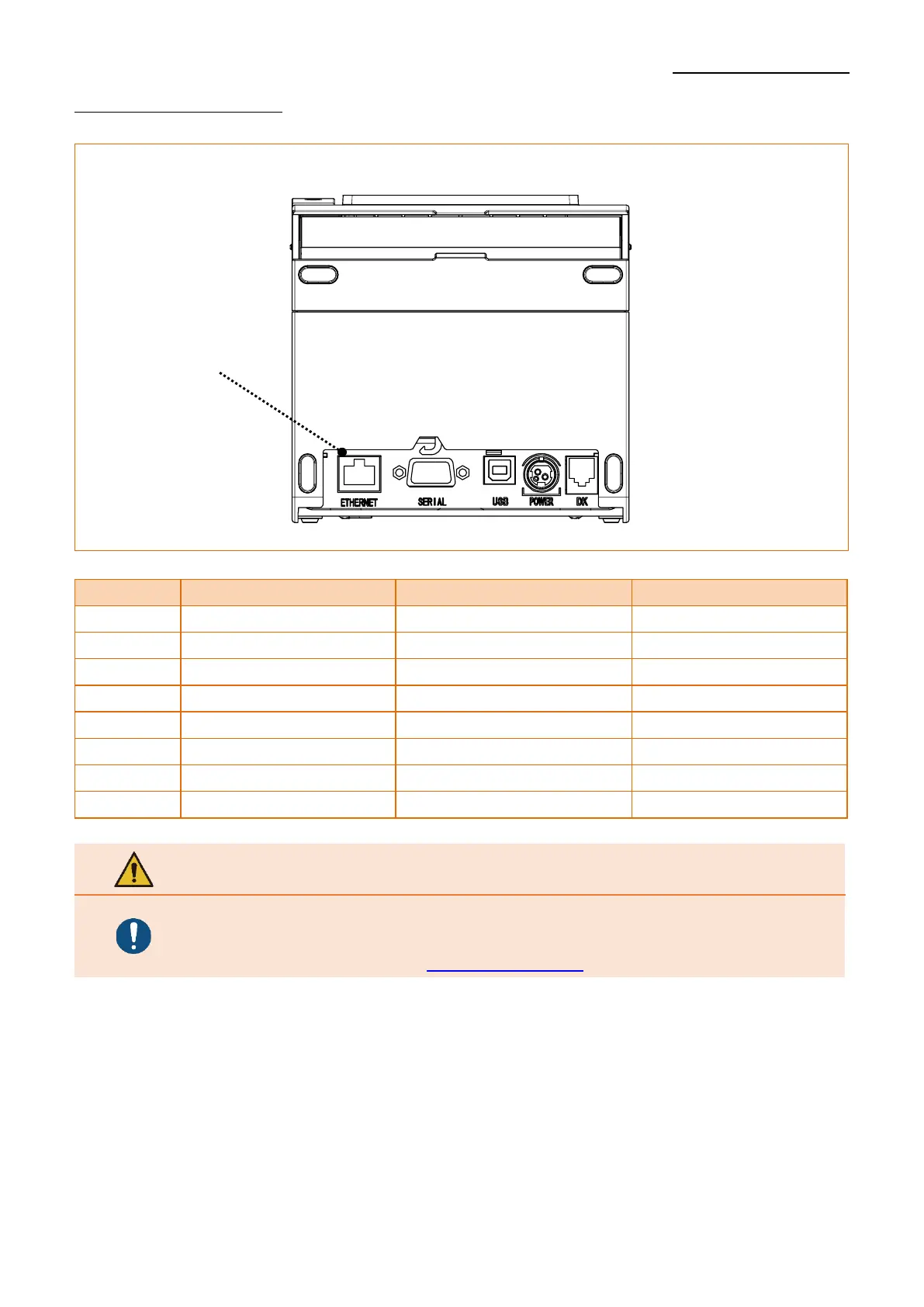

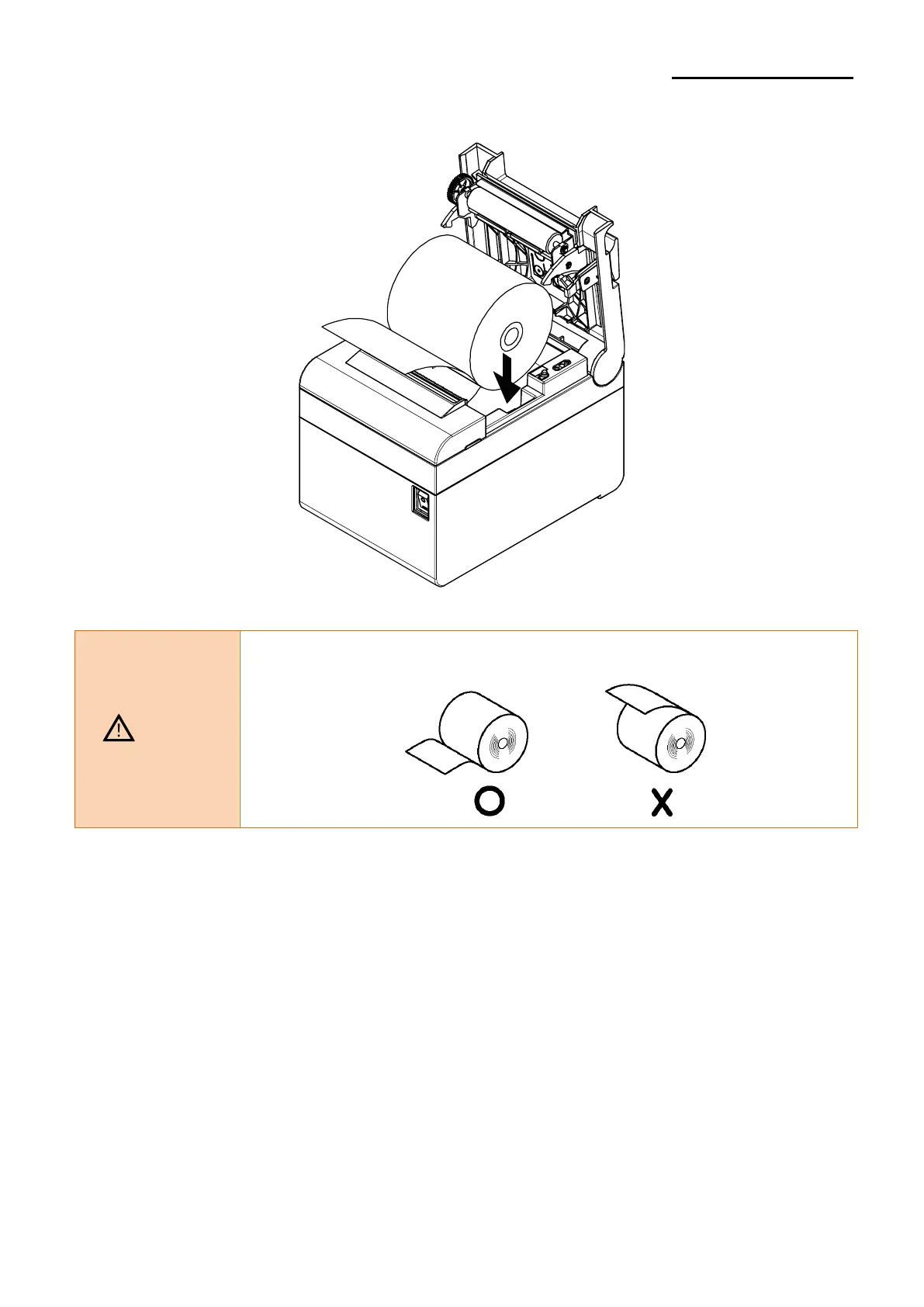

2-2-2 Ethernet Interface
- SRP-E300ES/E302ES
Pin No.
Signal Name
Designation (Color)
Function
1
TD+
WHITE ORANGE
Transmit +
2
TD-
ORANGE
Transmit -
3
TCT
WHITE GREEN
Receive +
4
NC
BLUE
-
5
NC
WHITE BLUE
-
6
RCT
GREEN
Receive -
7
RD+
WHITE BROWN
-
8
RD-
BROWN
-
Connect or disconnect the communication cable while the printer
power is off. If power is on, your data may be lost.
Refer to the utility and network connection manual for
Interface connection information. The network connection manual is
on the BIXOLON website (www.bixolon.com) We're offering it
Ethernet Port
