BIXOLON SRP-E300ESK - Ethernet Interface

Ver. 1.00
- 7 -
SRP-E300/E302

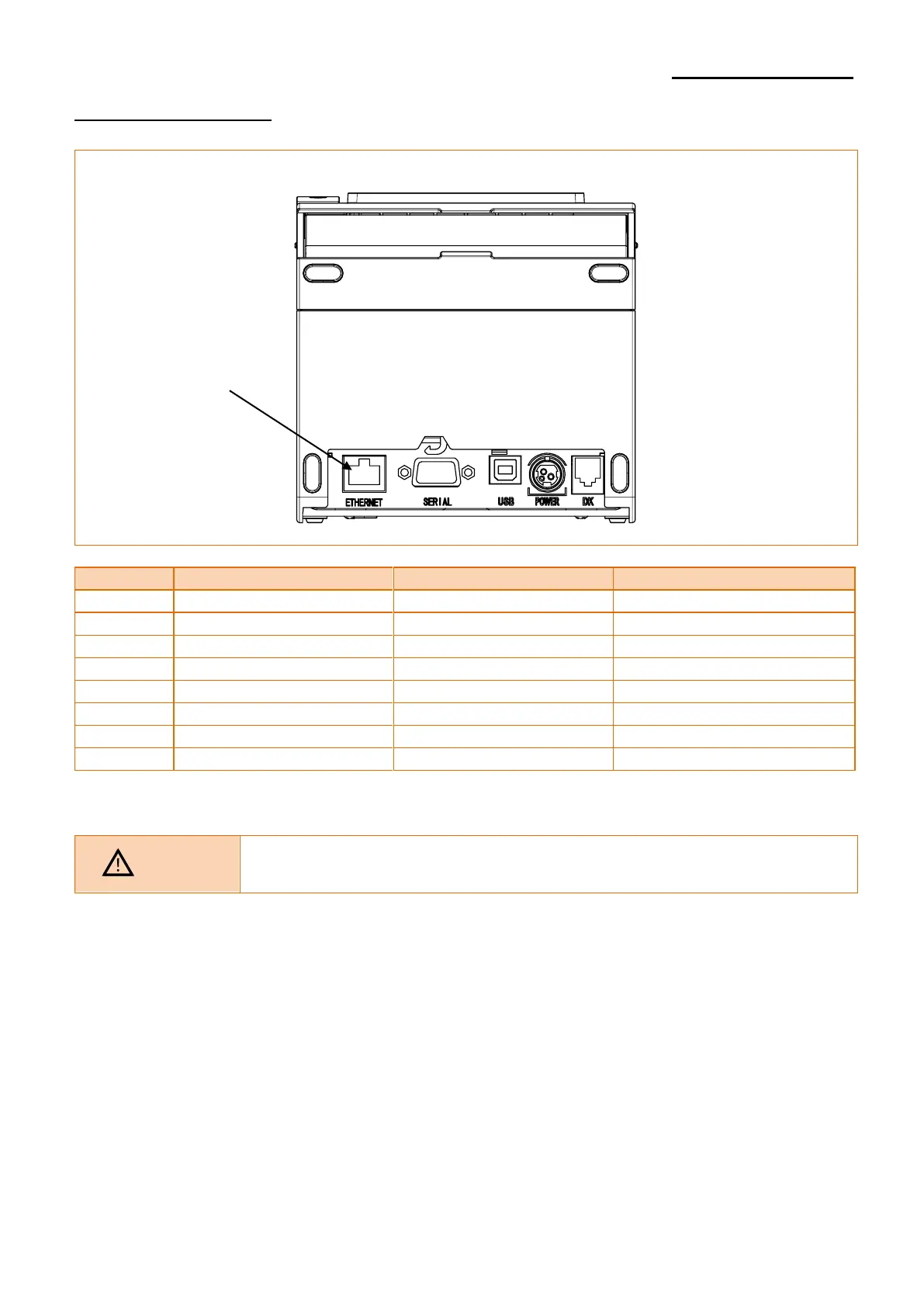

1-2-2 Ethernet Interface
- SRP-E300ES/E302ES
Pin No.
Signal Name
Designation (Color)
Function
1
TD+
WHITE ORANGE
Transmit +
2
TD-
ORANGE
Transmit -
3
TCT
WHITE GREEN
Receive +
4
NC
BLUE
-
5
NC
WHITE BLUE
-
6
RCT
GREEN
Receive -
7
RD+
WHITE BROWN
-
8
RD-
BROWN
-
* Refer to the Ethernet User’s Manual that is available from the BIXOLON website for more
detailed information.
Caution
All cables must be connected while the product is turned off.
Ethernet Port
