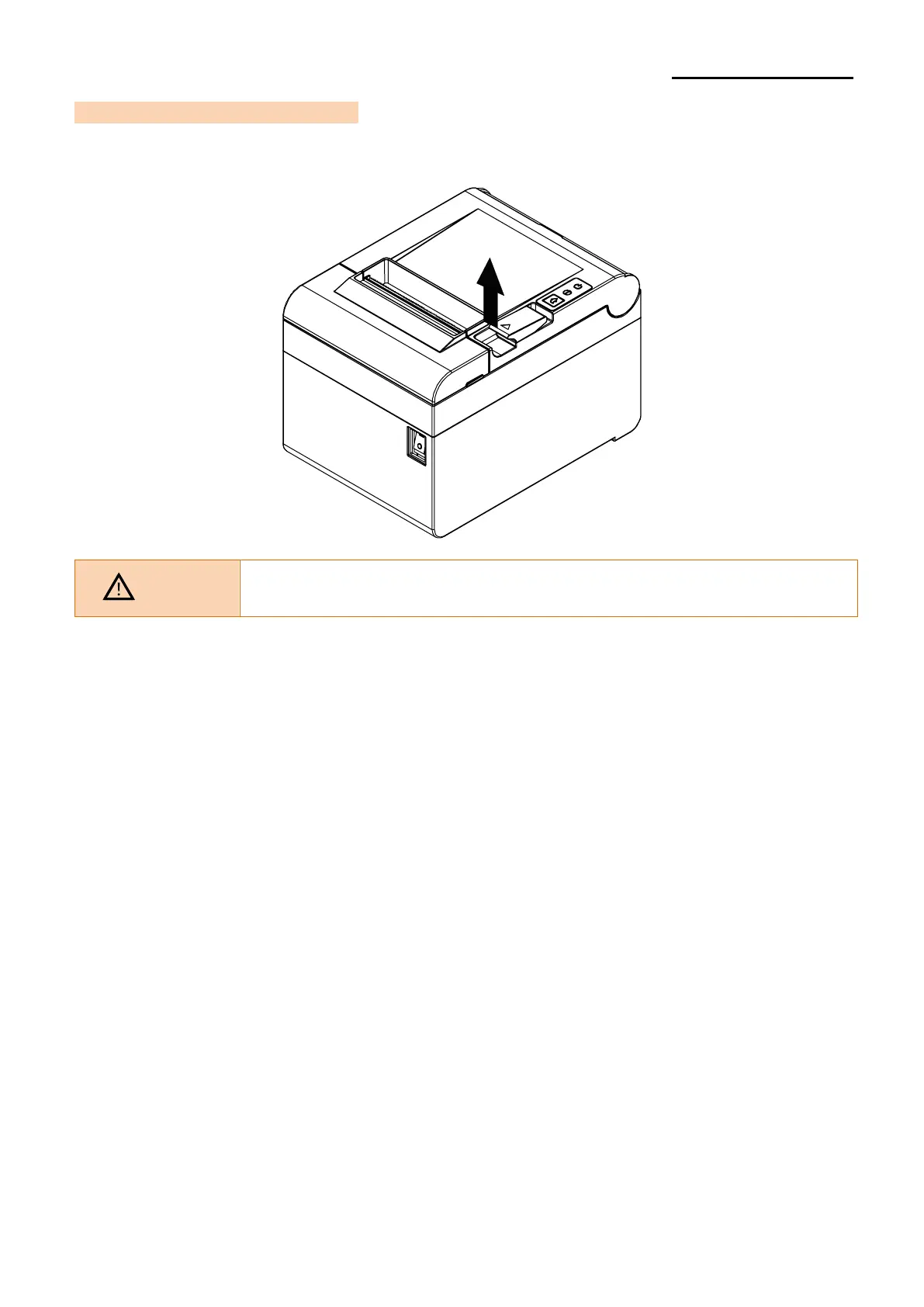

2-2 Interface Part Names
• Connect the printer to the host computer using the right interface cable that complies
with the specifications of the interface.

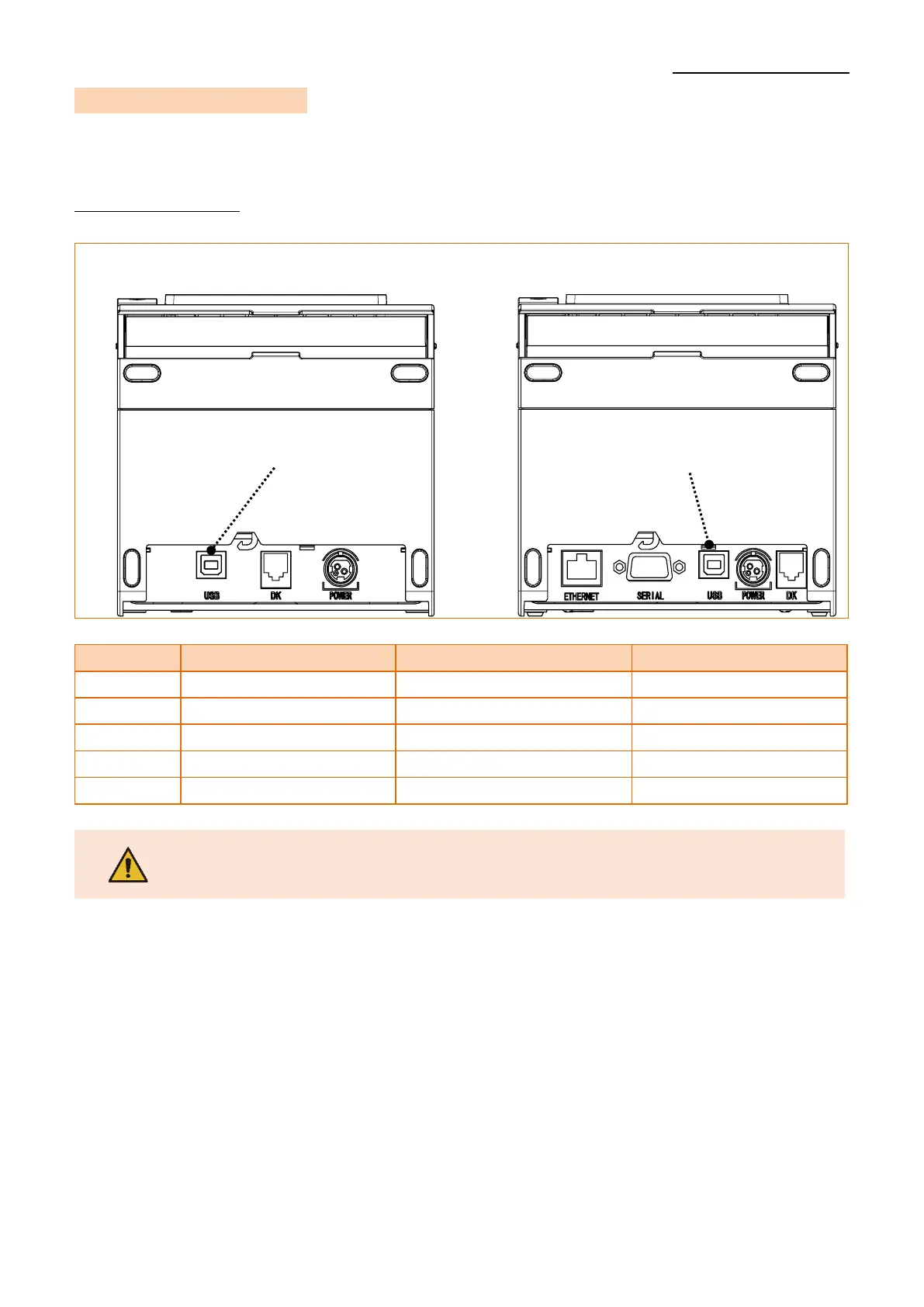

2-2-1 USB (Built-in)
- SRP-E300/E302 - SRP-E300ES/E302ES
Pin No.
Signal Name
Designation (Color)
Function
Shell
Shield
Drain Cable
Frame Ground
1
VBUS
RED
Host Power
2
D-
WHITE
Data Line (D-)
3
D+
GREEN
Data Line (D+)
4
GND
BLACK
Signal Ground
Connect or disconnect the communication cable while the printer
power is off. If power is on, your data may be lost.
USB Port
USB Port
