BIXOLON SRP-S300 - Serial Interface (RS232)

SRP-S300
Ver. 2.00
- 15 -

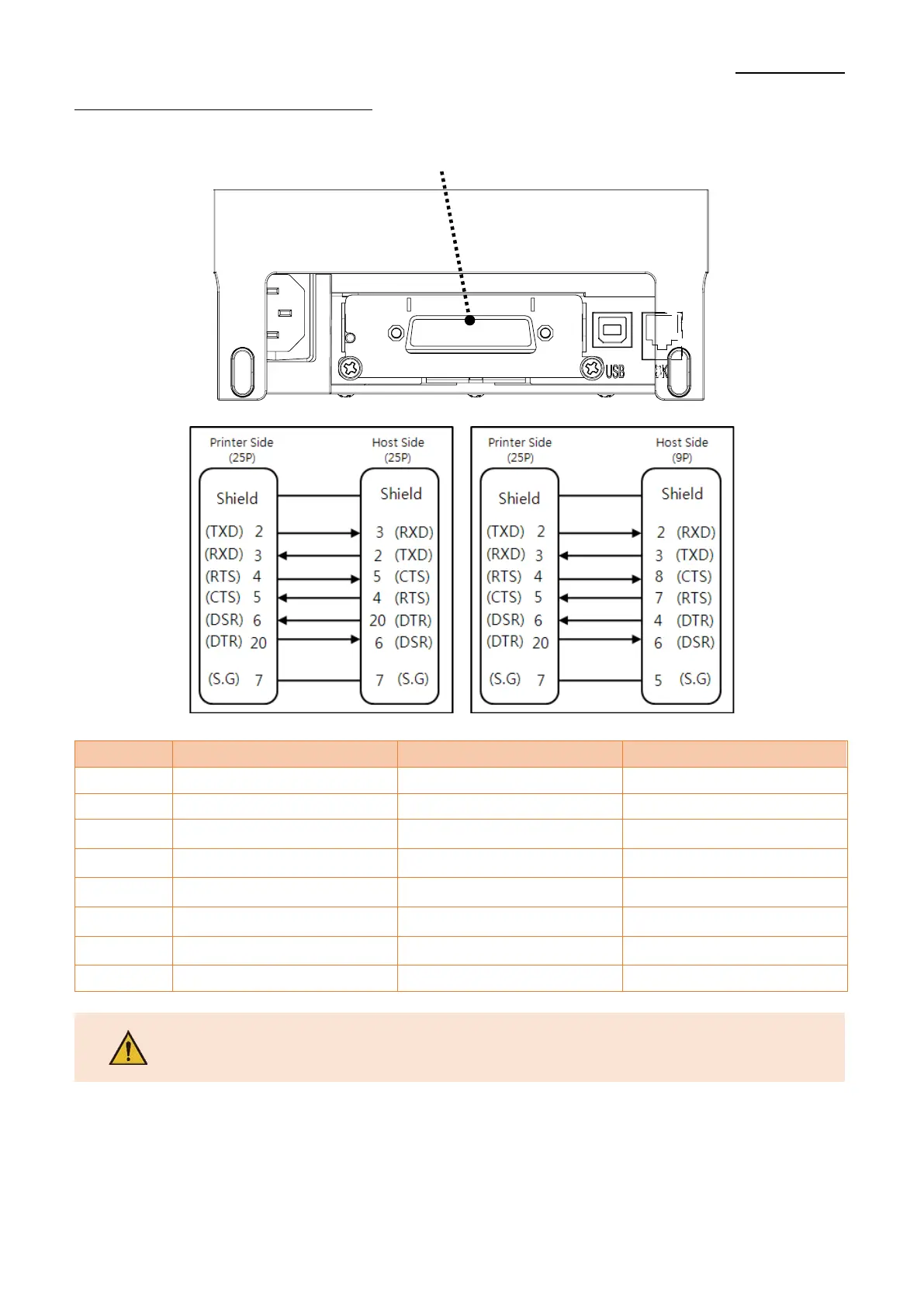

2-2-3 Serial Interface Card (RS232)
Pin No.
Signal Name
Direction
Function
FG
FG
-
Frame Ground
2
TxD
Output
Transmit Data
3
RxD
Input
Receive Data
4
RTS
Output
Ready To Send
5
CTS
Input
Clear To Send
6
DSR
Input
Data Set Ready
7
SG
-
Signal Ground
20
DTR
Output
Data Terminal Ready
Connect or disconnect the communication cable while the printer
power is off. If power is on, your data may be lost.
Serial Port
