BIXOLON STP-103 User Manual

8

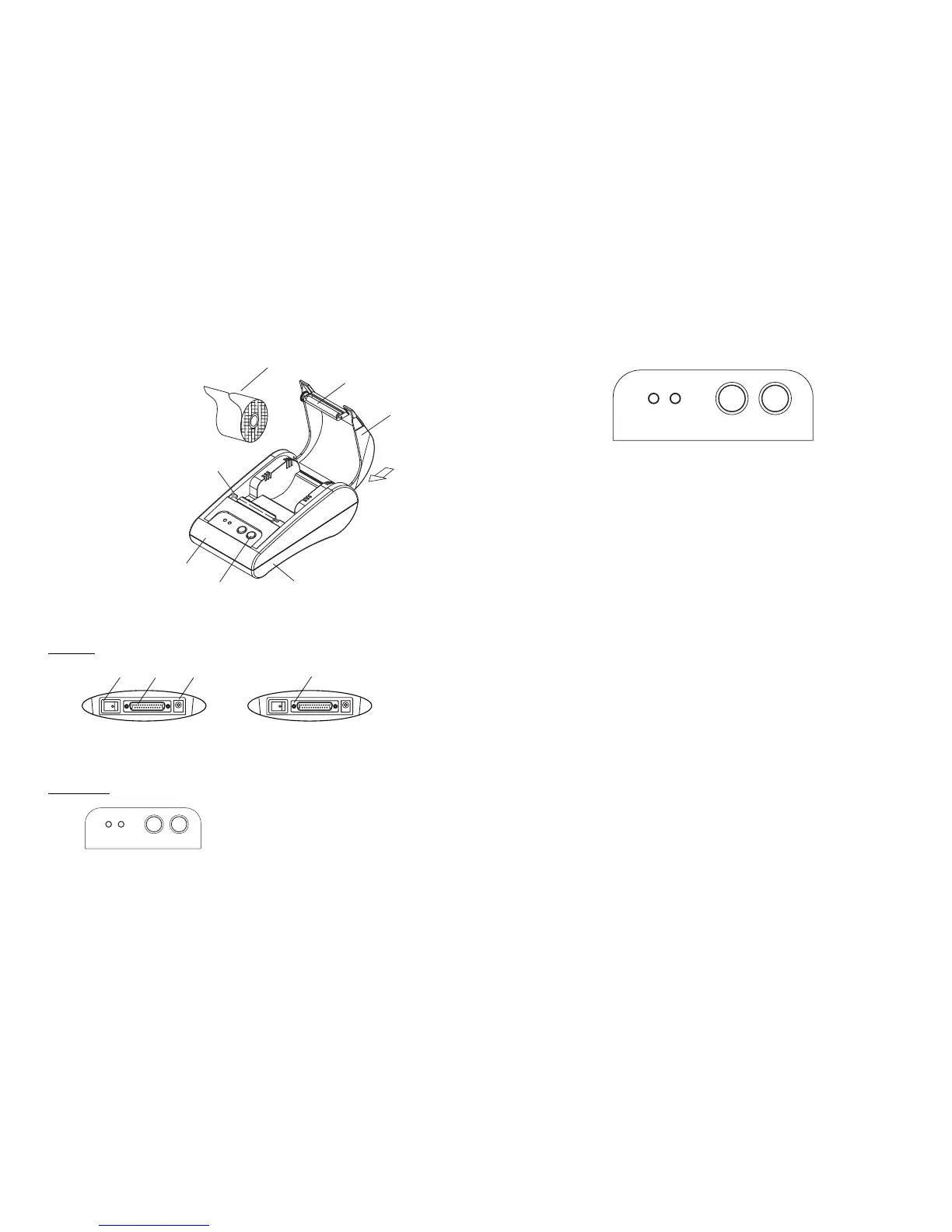

1-3. Printer Part Names
(1)
(4) (3)
(2)
(5)
(10)
(11)
Rear View
Rear View
STP-103S STP-103P
(6) (7) (8)
(9)
Control Panel
POWER ERROR FEED ON LINE
(1) Cover top
(2) Case top
(3) Case bottom
(4) Control panel
(5) Roller
(6) Power switch
(7) Interface connector (male)
(8) DC Jack
(9) Interface connector (female)
(10) Roll paper
(11) Detector switch
9
1-4. Operating Control Panel
The control panel has two buttons and two lights.
POWER ERROR FEED ON LINE
Buttons
The control panel buttons perform paper feeding and on line function.
ON LINE
Press the ON LINE button to ready to receive data from the computer.
FEED
Press the FEED button once to advance paper one line. You can also press the
FEED button continuously to feed paper continuously.
Feed button is valid when ON LINE button is off.
Indicator Lights
The control panel lights provide information on printer conditions.
POWER (green)
The POWER light is on when the printer power is on.
ERROR (red)
1) The error LED blinks fast when paper is out.
2) The error LED blinks when the Near End Sensor triggered.

BIXOLON STP-103 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	Parallel
Connectivity technology	Wired
Parallel ports quantity	1
Flash memory	8 MB
Tape cutting	Manual
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A
Mean cycles between failures (MCBF)	30000000
LED indicators	Yes
Power consumption	1500 mA
Power requirements	24V DC
Compatible operating systems	Windows 95 Windows 98 Windows ME Windows NT4.0 Windows XP Windows 2003 Server OPOS
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	60 mm
Supported paper width	58 mm
Product color	Black, Silver

Weight and Dimensions

Depth	180 mm
Width	116 mm
Height	90 mm
