98
Resistance Measurement

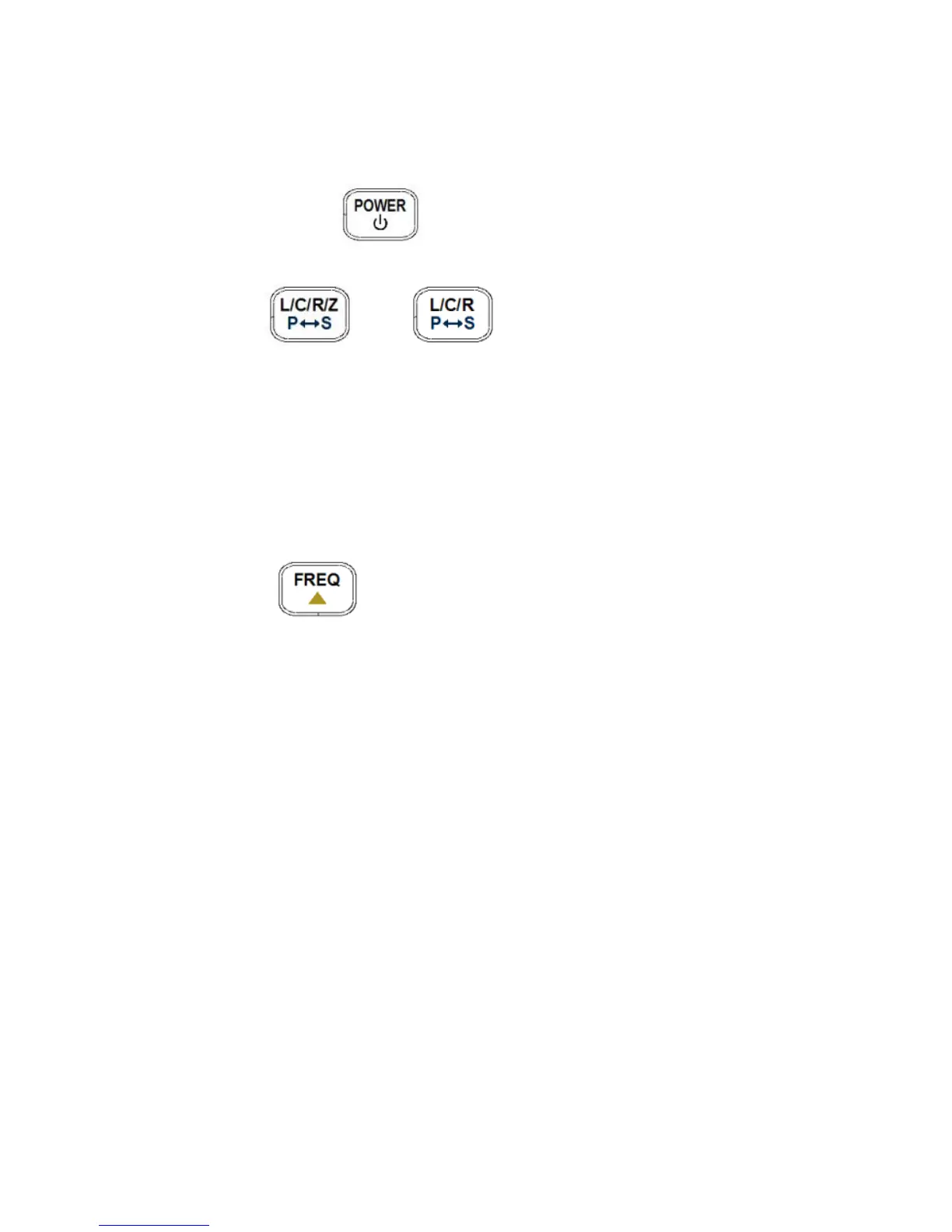

1. Press down button for one second to turn
on the meter.
2. Press (or for model 878B) button
until “R” is on the screen to select resistance
measurement.
3. Insert resistor or resistive component into the
input sockets or connect alligator leads into the
banana jack input terminals and connect the clips
to the component leads as illustrated in Figure 12.
4. Press button until the desired test
frequency is displayed on screen.
Note: This meter does not provide a DC
resistance measurement of the component. It
uses an AC signal for measurement. For this
reason, some applications or device under test
may not give correct readings if they are designed
for measurement in DC.
5. Read the display readings for resistance
measured values.
