Page 45
Chapter 6: Application Examples

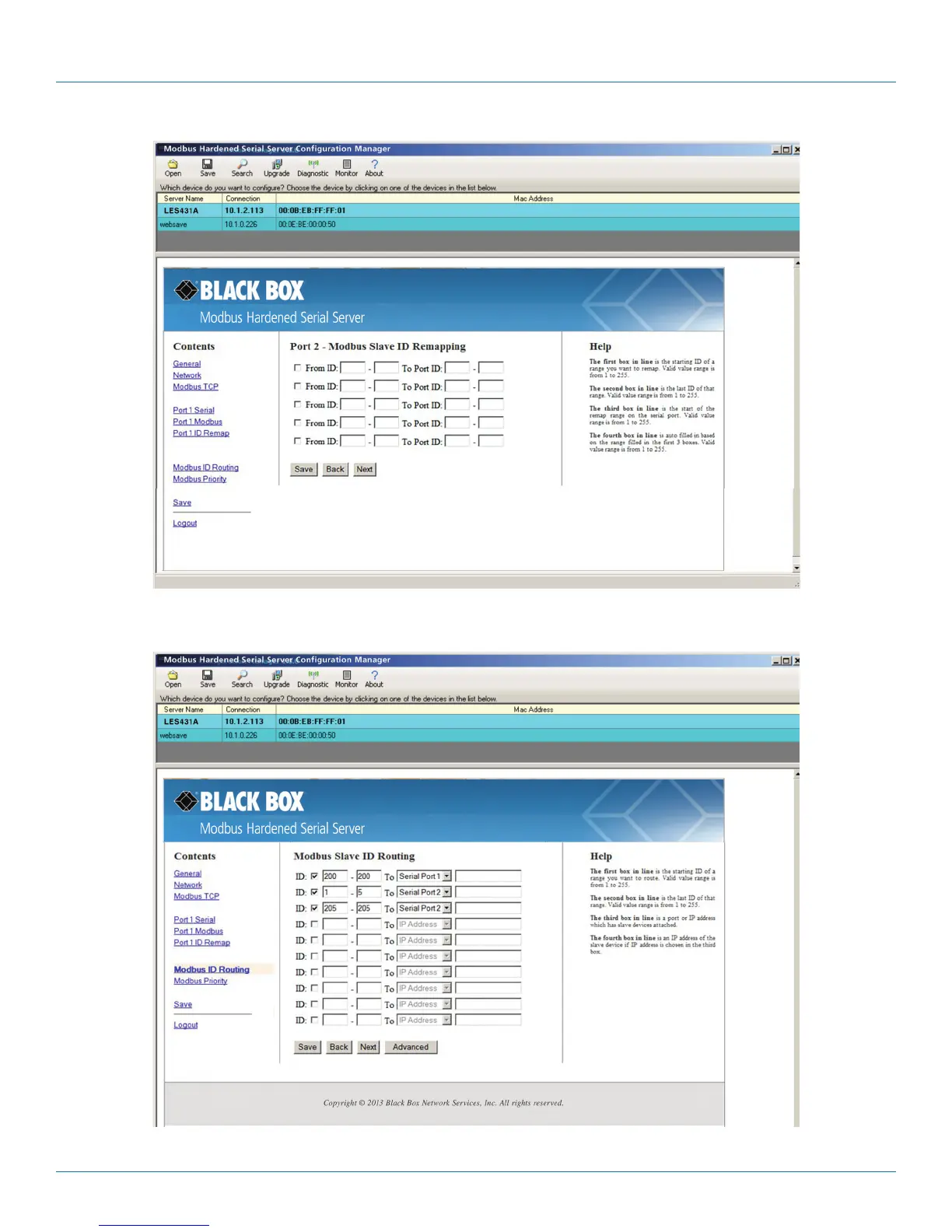

Figure 6-4. Port x Modbus Slave ID remapping.
7. Access Modbus ID Routing. Configure as necessary. In this example, Slave ID 200 is mapped to serial port 1.
Figure 6-5. Modbus ID routing.
