15
CHAPTER 2: Introduction

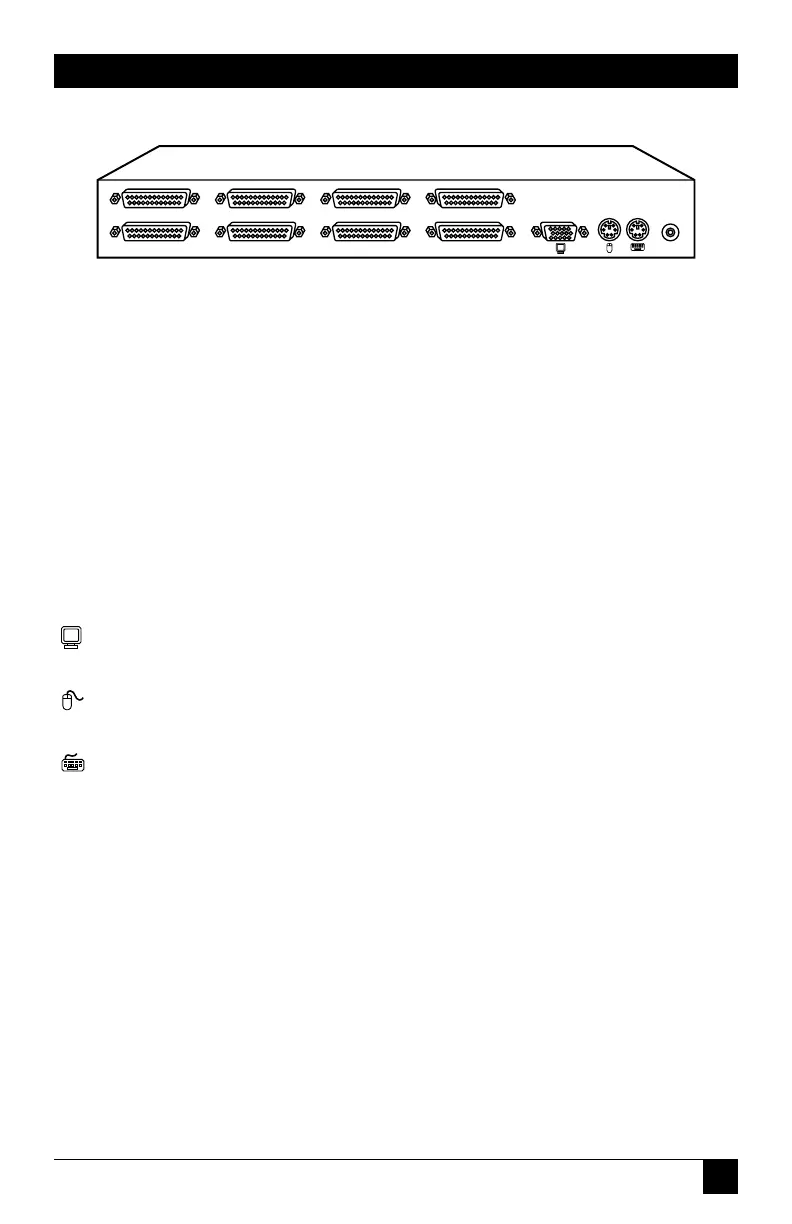

Figure 2-4. The rear panel of an 8-port ServSwitch Jr. (SW629A-R2).
Panel Label Connector Description
[Numbered DB25 F Connect the sharing computers to these ports with
Ports] special “CPU Adapter Cables.” At the Switch end,
these cables have a DB25 male connector; at the
other ends, they have appropriate connectors to
plug into your CPUs’ video, keyboard, and mouse
ports. These cables take the signals that would
normally be carried between the CPUs’ ports and
the monitor, keyboard, and mouse, and carry them
between the CPUs’ ports and the ServSwitch Jr.
instead.
(VGA HD15 F Attach the shared monitor’s video cable directly to
MONITOR) this port.
(PS/2 6-pin mini- Attach your regular PS/2 or PS/2 wheel type mouse
MOUSE) DIN F directly to this port.
(PS/2 6-pin mini- Attach your PS/2 type keyboard directly to this port.
KEYBOARD) DIN F
Optional 3.5-mm If you want to give the Switch more power than the
5V DC barrel jack attached CPUs can provide, plug the output cord of
the optional PS255 external power supply into this
jack.
