| OWNER’S MANUALASSEMBLY GUIDEMODEL(S): 2311 • 2311CA

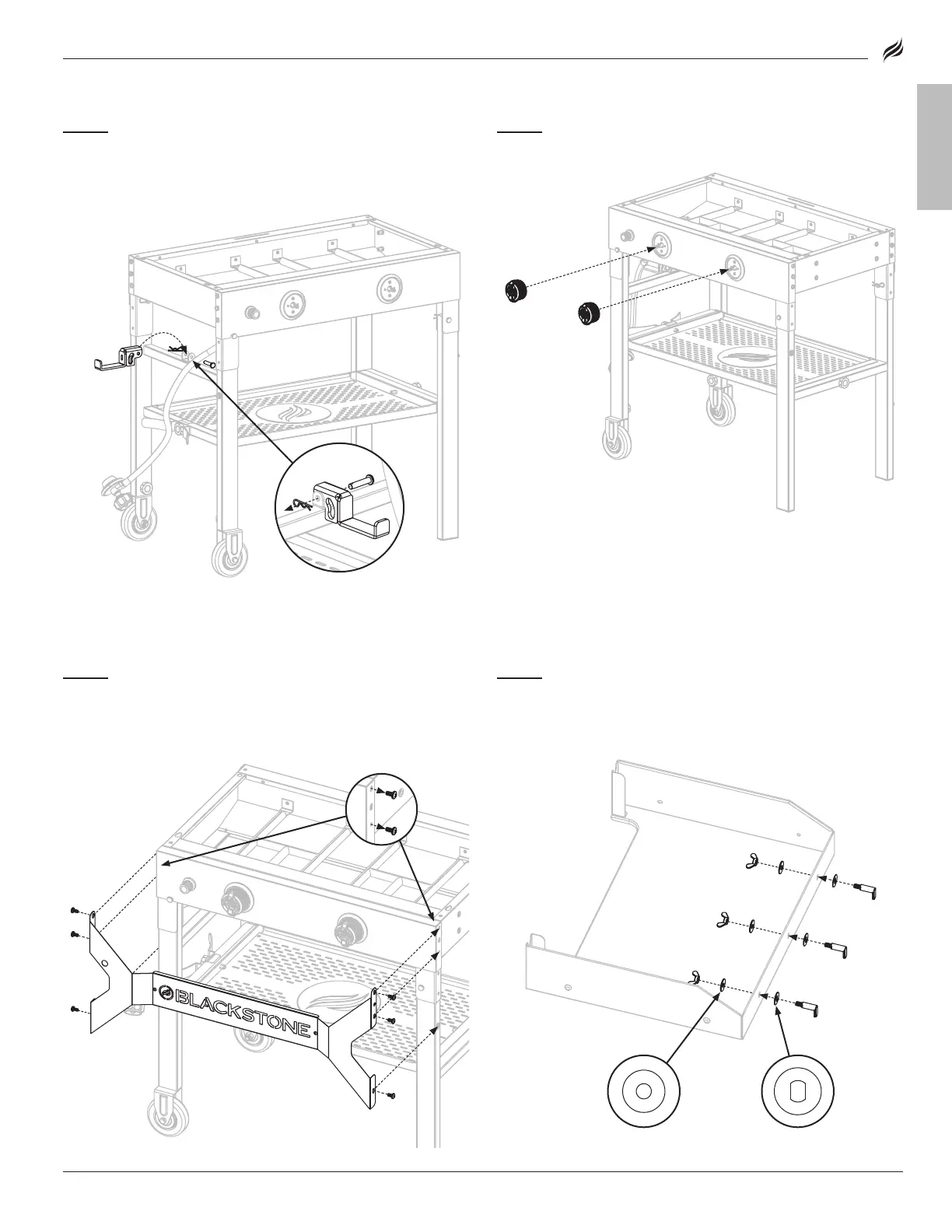

STEP 03
With the help of another person, set the griddle on its feet.
Use one (1) shear pin [c.] and one (1) cotter pin [d.] to attach the LPG
hook to the upper bar of the left leg assembly.
STEP 04
Install the two (2) control knobs by pushing them into place
in the OFF position.
STEP 05
Unscrew the four (4) upper bolts from the sides of the
griddle body.
Use these four bolts and two (2) M6x12 bolts [a.] to attach the logo
panel to the front of the griddle.
STEP 06
Use three (3) wing nuts [f.], three (3) washers [k.], and three
(3) slotted washers [j.] to attach three (3) shelf hooks [g.] to one (1)
side shelf.
Repeat with the other side shelf.
[a.]
[a.]
