Using Videohub Routers
SDI Interface Card
SDI interface cards feature 4 SDI inputs, 4 SDI outputs and a connector for a Universal Videohub Deck
Control Cable. All SDI connections support auto detection of SD, HD or 3G-SDI, and reclocking on all SDI
outputs. Simultaneous routing of 2K, HD, SD video and DVB-ASI are supported with Universal Videohub.
SDI interface cards are designed to be installed while Videohub is running and become active immediately.
They do not require Videohub to be power cycled. You will need a number 01 and a number 02 size Pozidriv
screwdriver to install the various cards.
There are two models of SDI interface cards that can be used with Universal Videohub:
Universal Videohub SDI Interface card with BNC connectors.
Universal Videohub Optical Interface card has standard SFP transceiver modules with 1310 nm
laser drivers and receivers. Each module includes an LC connector port to be used with single-
mode optical fiber cables.

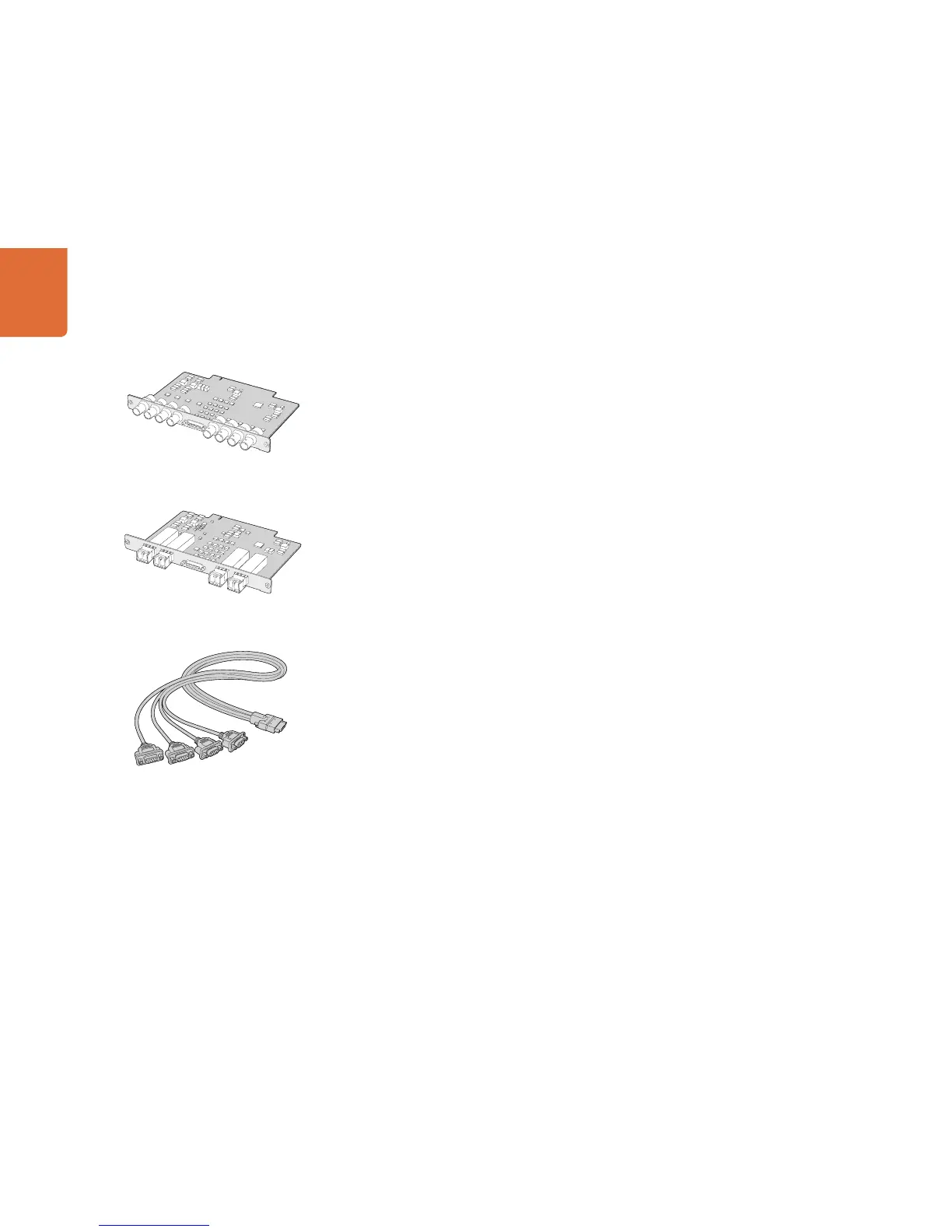

Universal Videohub Deck Control Cable
This cable features a single serial port at one end, for connection to both types of SDI interface cards, and
four RS-422 deck control ports at the other end.
Universal Videohub Deck Control Cable
Universal Videohub Optical Interface card
Universal Videohub SDI Interface card
