Controlling Videohub with Software
Monitoring
SDI outputs
Deck Control Connections
RS-422 serial ports
Source
SDI input
Main Router Control

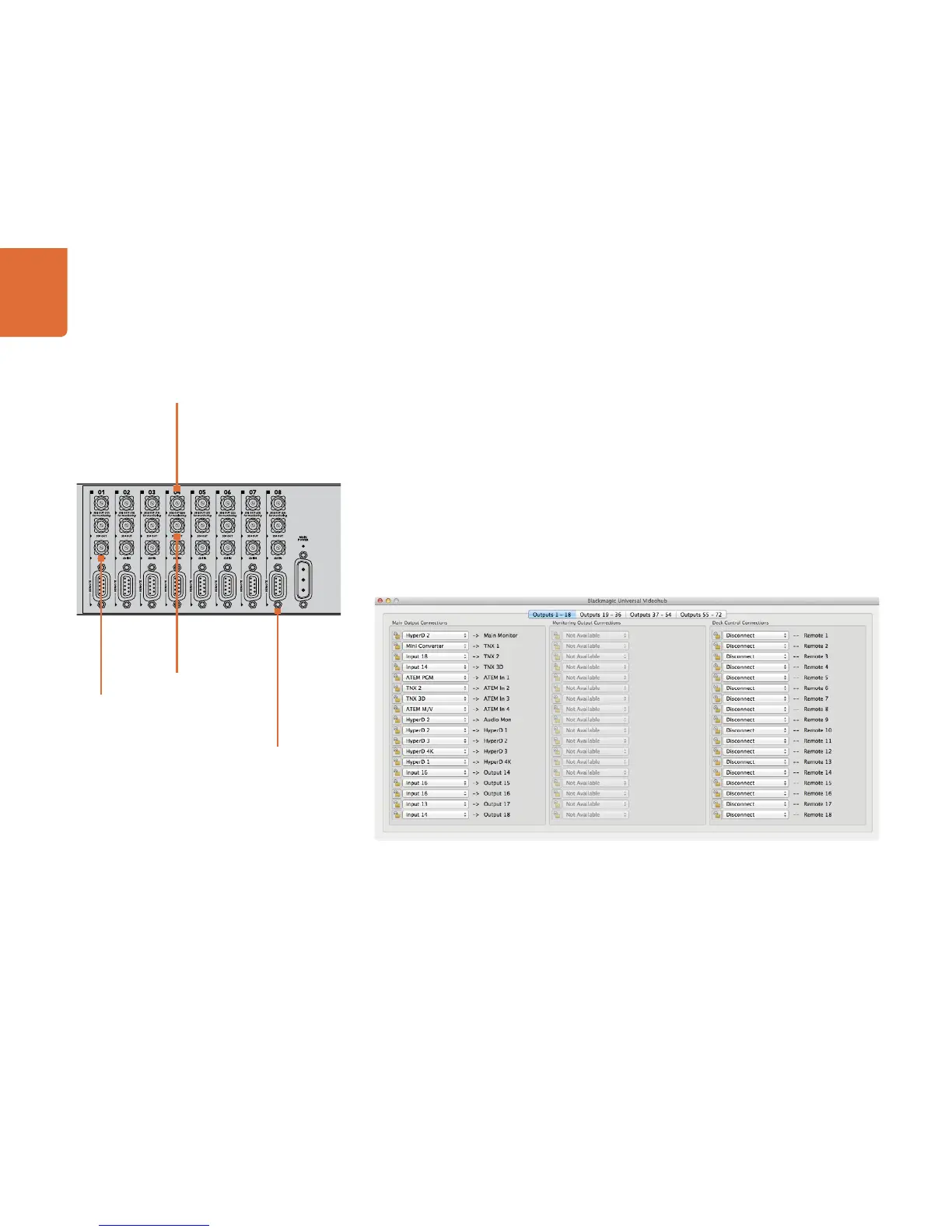

After launching the Videohub application, the Main Router Control window will be displayed. The window
is split into three distinct areas:
1. Main Output Connections
Controls routing for the Destination SDI outputs.
2. Monitoring Output Connections
Controls routing for the Monitor SDI outputs.
3. Deck Control Connections
Controls routing for the RS-422 serial ports.
Connect a video input to a video output by selecting the menu of any destination outputs or
monitoring outputs.
Controlling Videohub with Software
Destination
SDI output
The Main Router Control window is split into three distinct areas.
