Blackmagicdesign Micro Videohub User Manual

Using Software Control Panels
51
Simple and easy
to understand icons
Arrow buttons allow
you to move through
your Source screens
This button is reserved
by Videohub for
when a destination is
connected to a source
which does not appear
in the sources panel.
Arrow buttons allow
you to move through
your Destination
screens
Title Bar shows
which type of
Videohub you
are using
Highlighted icon denotes
paired connections
The number of dots below the Sources and Destinations
panels show the number of screens you have, and indicates
which screen you’re viewing.

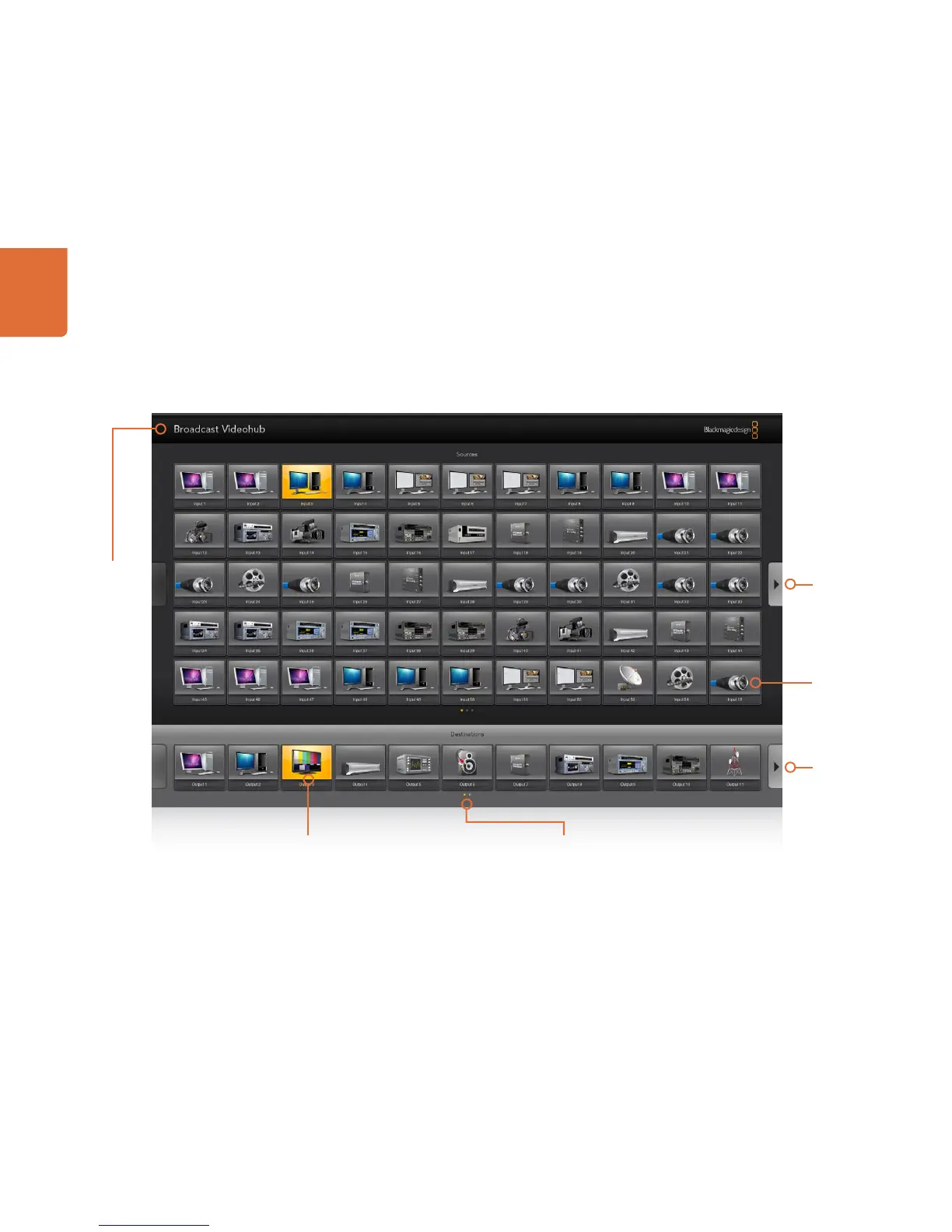

Pushbutton View at a Glance
Arrow buttons and dots make it easy to move through screens of Sources and Destinations when more than one screen is used. Multiple screens are
available in Full Screen 24” Pushbutton view but not in smaller views.
