Blackmagicdesign Micro Videohub User Manual

Using Software Control Panels
57
When using a Full Screen Pushbutton view, you may choose to show multiple instances of a source or
destination pushbutton. The example pictured on this page shows a Studio Videohub with all of its inputs
configured in the first rows of the Pushbutton view. Some of the same inputs have been duplicated and then
grouped together, with devices of the same type, enabling them to be quickly located, e.g. a camera group,
a deck group, etc. Destinations can also be duplicated if desired.
If a destination pushbutton is routed from a source, which appears multiple times in the Sources panel,
selecting the destination pushbutton will illuminate all instances of the source pushbutton, regardless
of how deck control has been configured for each source pushbutton. Similarly if multiple instances of
an output pushbutton appear in the Destinations panel, they will illuminate together when any one has
been selected.

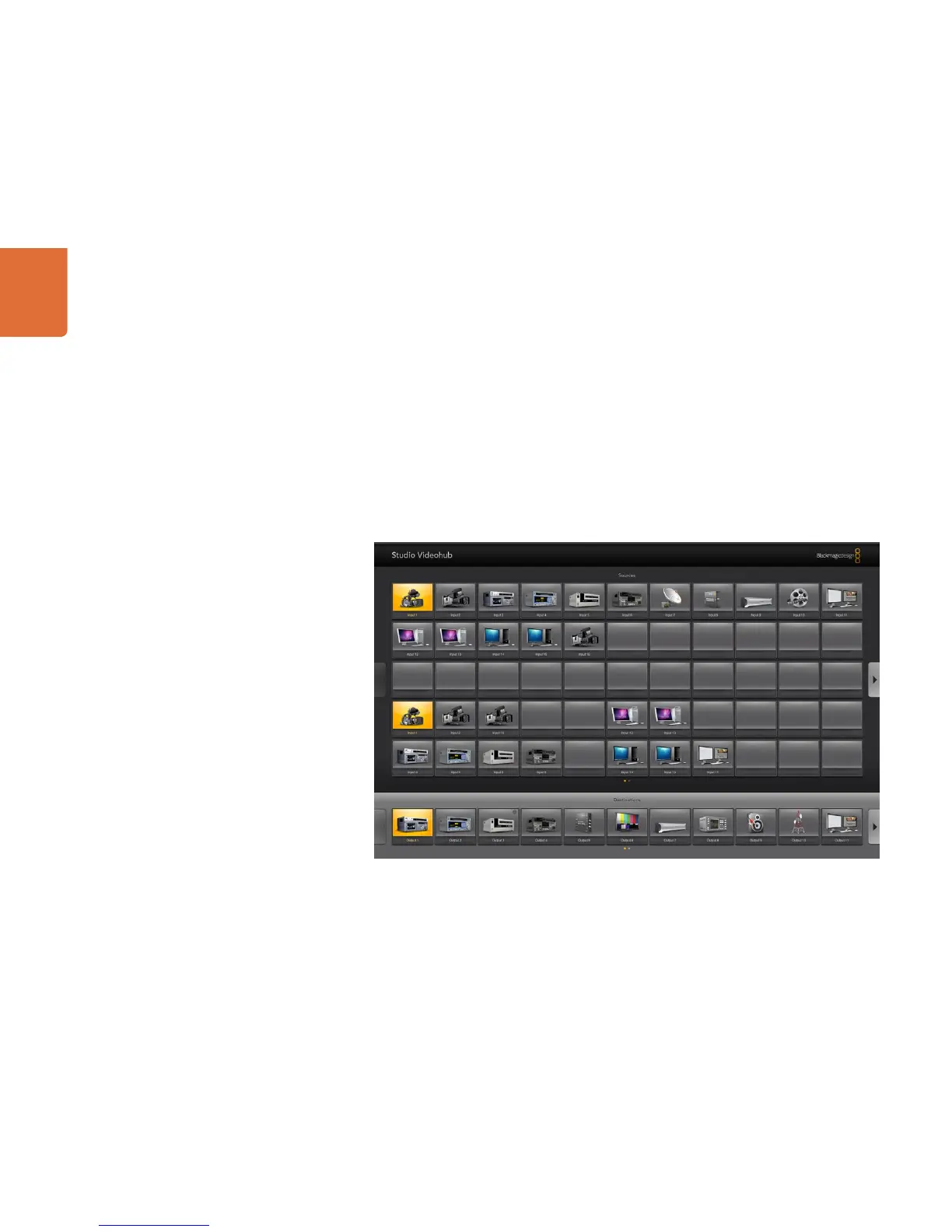

Full Screen 24” Pushbutton view showing an example of duplication and grouping of inputs. Two, illuminated instances of
Input 1 can be seen in this example. Grouping of inputs can enable quick identification and location of video sources of the
same type, e.g. all available cameras.
