Blackmagicdesign teranex mini - Connectors for HDMI to SDI 12 G; Video Input and Output Ports; Network and Audio;Timecode Ports

ETHERNET PoE+ SDI OUT
L - ANALOG
AES/EBU
R - ANALOG
AES/EBU - T/C
PUSH PUSH
HDMI IN
SDI OUT
1 2
3
ETHERNET PoE+ SDI OUT
L - ANALOG
AES/EBU
R - ANALOG
AES/EBU - T/C
PUSH PUSH
HDMI IN
SDI OUT
4
5
6 7 8 9 10

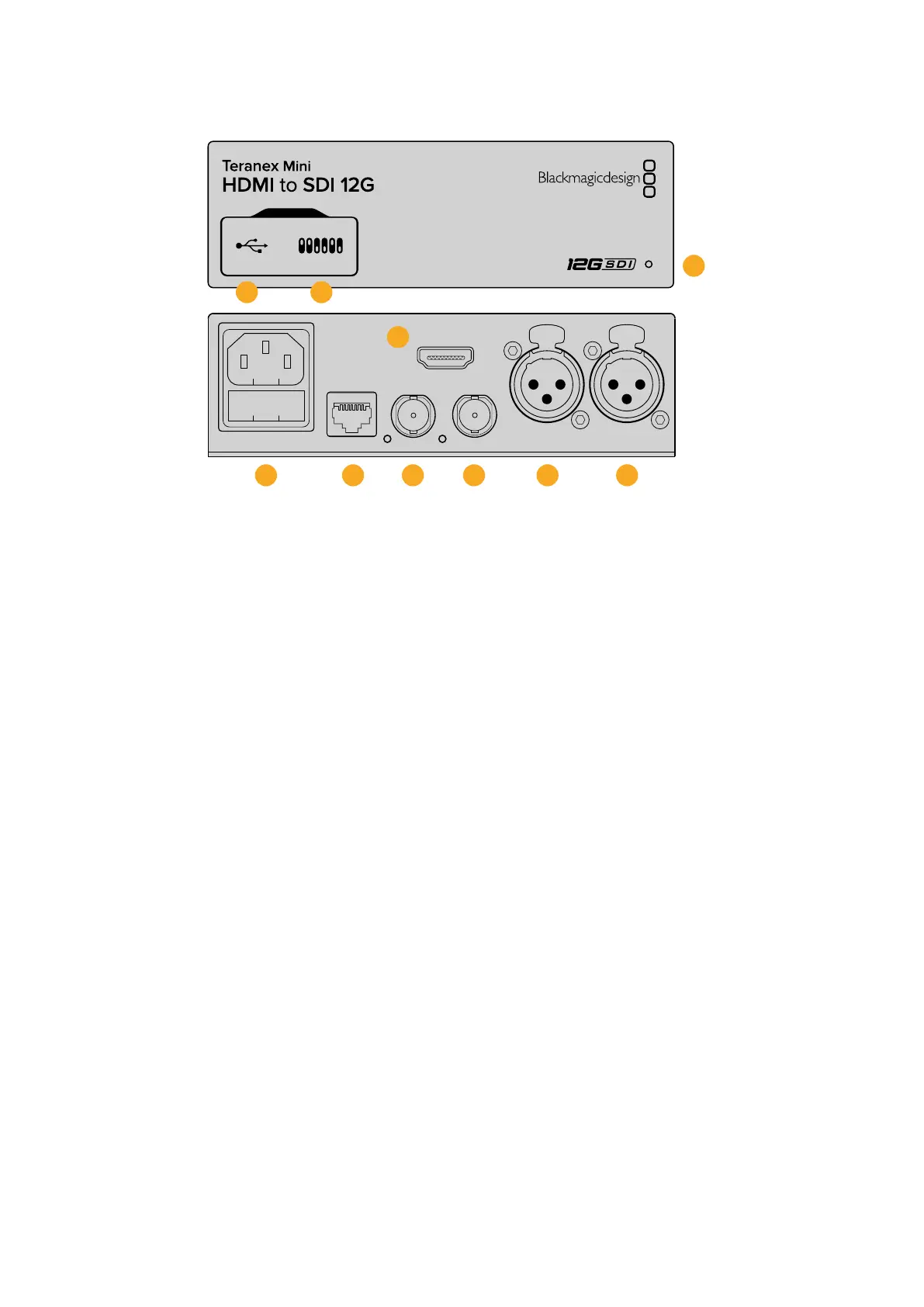

Connectors
1 Mini-B USB Port
Connects to Blackmagic Teranex Setup via a Mac or Windows computer for changing
settings and updating your Teranex Mini’s internal software.
2 Switches
Adjustable switches for changing settings.
3 LED Status Indicator
Glows white when the converter is receiving power and green when a valid video input
signal is detected. Will flash on/off to identify individual converters via Blackmagic
Teranex Setup.
4 Power
Standard built in IEC C14 connector for 90 - 240 volt AC power supply.
5 HDMI
HDMI video input.
6 Ethernet PoE+
Connects to a network switch or computer so you can change settings using
Blackmagic Teranex Setup. The Ethernet port also supports power over Ethernet plus.
7 SDI Out
SDI video output BNC connector.
8 SDI Out
Secondary SDI output BNC connector.
9 L – Analog or AES/EBU
Balanced left channel analog audio, or digital AES/EBU audio input XLR connector.
10 R – Analog, AES/EBU or Timecode
Balanced right channel analog audio, or digital AES/EBU audio input XLR connector.
Can also be configured for timecode input.
30Teranex Mini – HDMI to SDI 12G
