Teranex Mini – Analog to SDI 12G
Your Teranex Mini Analog to SDI 12G lets you convert video and audio from analog equipment
such as Betacam SP decks, HDV cameras and game consoles to SD-HDI, HD-SDI and 12G-SDI
video. A choice of analog input formats is supported, including component SD/HD, S-Video, or
composite NTSC and PAL. The converter’s 12G-SDI outputs include the option to embed digital
AES/EBU or analog audio.
ETHERNET PoE+ SDI OUT
L - ANALOG
AES/EBU
R - ANALOG
AES/EBU - T/C
Y or NTSC/PAL B-Y or S-VIDEO Y R-Y or S-VIDEO C
PUSH PUSH
SDI OUT
1
2 3
ETHERNET PoE+ SDI OUT
L - ANALOG
AES/EBU
R - ANALOG
AES/EBU - T/C
Y or NTSC/PAL B-Y or S-VIDEO Y R-Y or S-VIDEO C
PUSH PUSH
SDI OUT
4 5
6 7
8 9 10 11 12

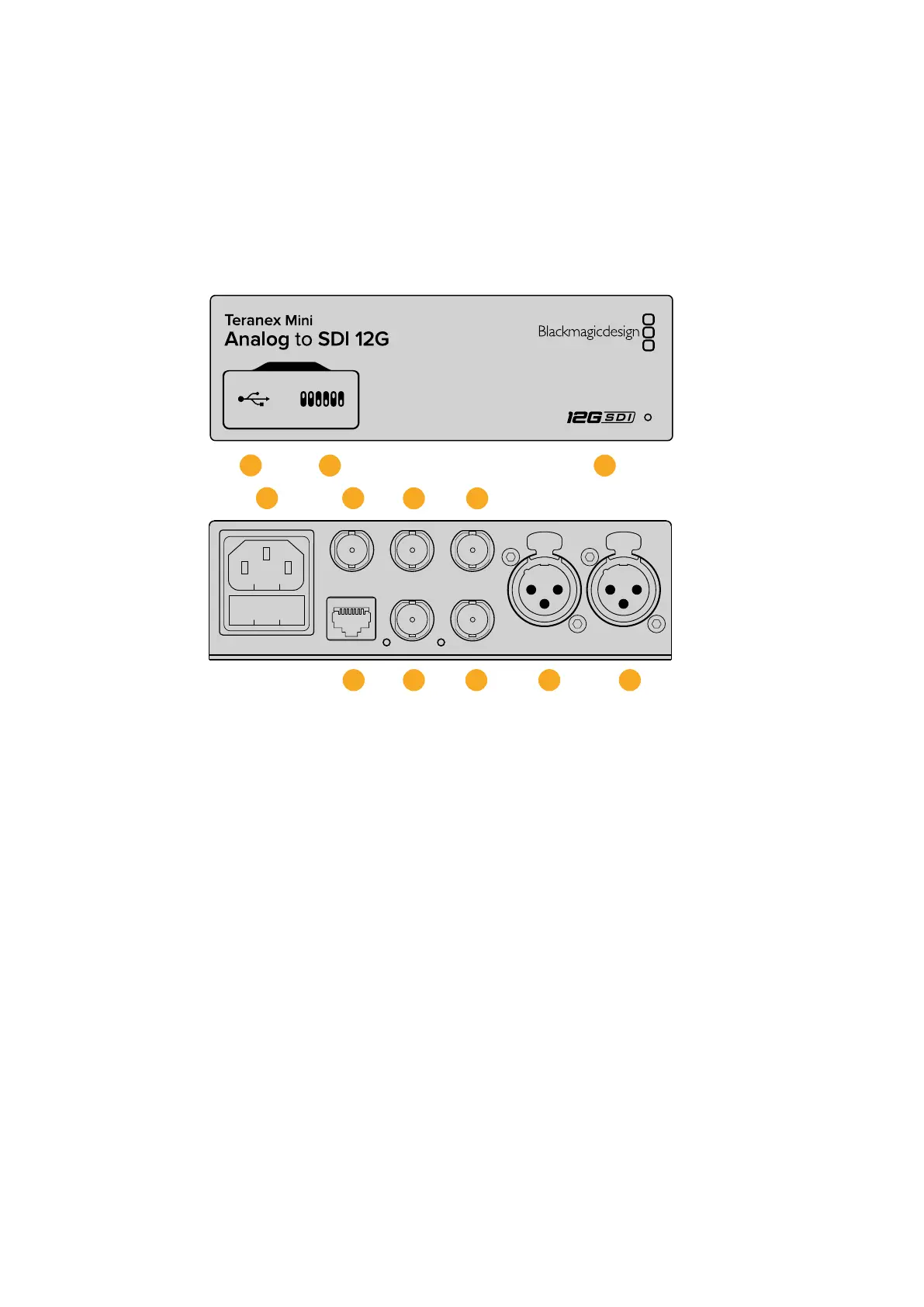

Connectors
1 Mini-B USB Port
Connects to the Teranex setup utility via a Mac or Windows computer for adjusting
settings and updating your Teranex Mini’s internal software.
2 Switches
Adjustable switches for changing settings.
3 LED Status Indicator
Glows white when the converter is receiving power and green when a valid video input
signal is detected. Will flash on/off to identify individual converters via Blackmagic
Teranex Setup.
4 Power
Standard built in IEC C14 connector for 90 - 240 volt AC power supply.
5 Y or NTSC/PAL
Analog component Y, NTSC or PAL composite input
BNC connector.
6 B-Y or S-VIDEO Y
Analog component B-Y, or S-Video Y input BNC connector.
7 R-Y or S-VIDEO C
Analog component R-Y, or S-Video C input BNC connector.
