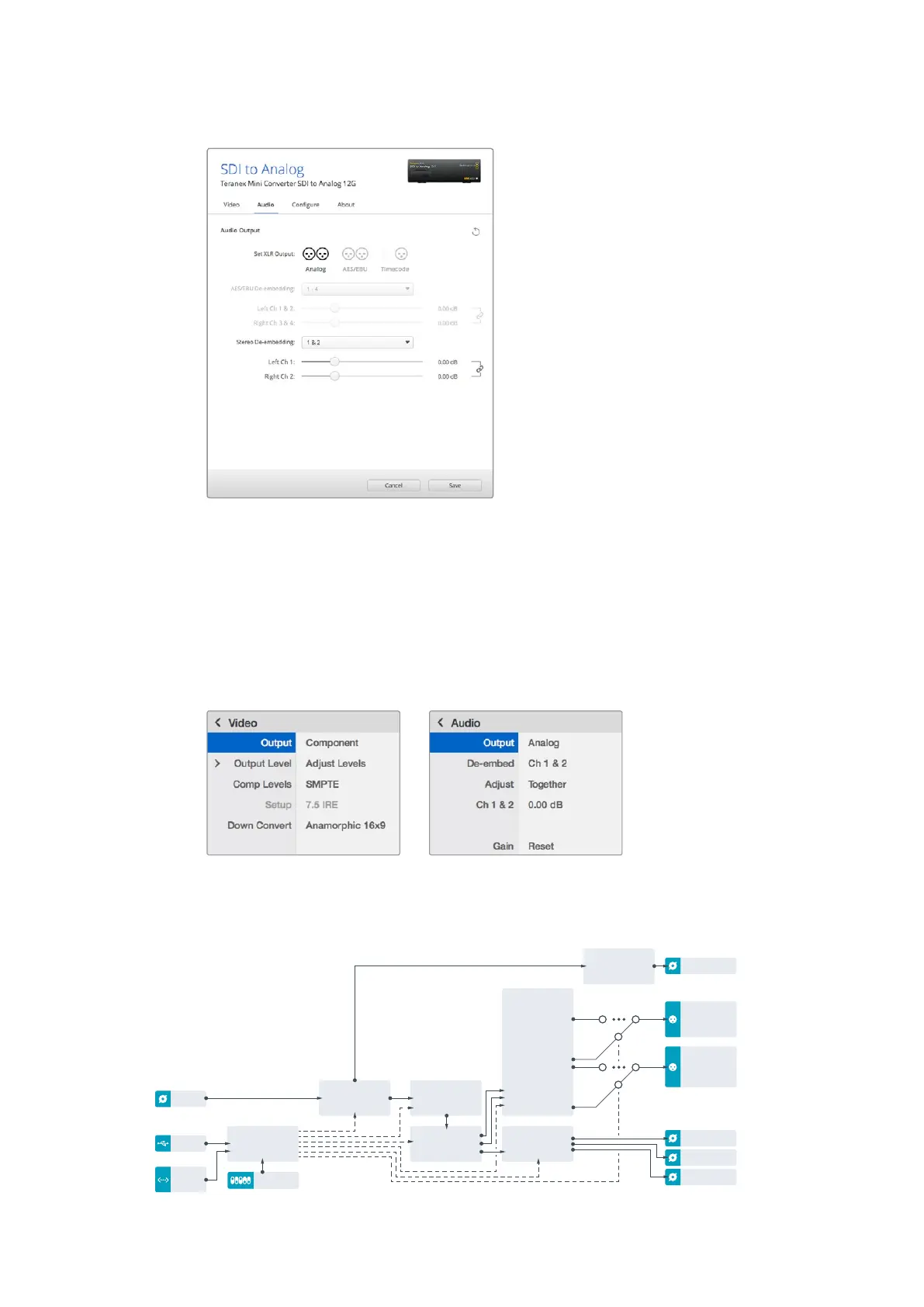

Adjust your analog audio levels and AES/EBU levels using the ‘audio’ settings page.
Teranex Mini Smart Panel Settings
If you have installed the optional Teranex Mini Smart Panel on your SDI to Analog 12G converter,
the following menus will be available - ‘video,’ ‘audio,’ and ‘network.’ The settings available in
these menus are identical to those detailed in the ‘Blackmagic Teranex Setup settings’ section
above. For more information on changing settings using the Teranex Mini Smart Panel, refer to
the ‘changing settings’ section in this manual.
Using Teranex Mini Smart Panel gives you access to the same settings as Blackmagic Teranex Setup.
Teranex Mini – SDI to Analog 12G Block Diagram
Y
R-Y
B-Y
SDI In
10 bit HD to
SD Down
Converter
Equalizer,
Re-Clocker and
10 bit De-Serializer
SDI Audio
De-Embedder
Central Processor
and Firmware
Automatic
SD/HD/6G/12G-SDI
Cable Driver
12 Bit Digital to
Analog SD/HD
Video Converter
Mini Switches
USB
Component output can switch to
S-Video and Composite
Input automatically
detects between
SD/HD/6G/12G-SDI
Left Analog Out
or AES/EBU
1+2 Out
Right Analog Out
or AES/EBU
3+4 Out or
Timecode
Stereo Audio
Analog to Digital
Converter
AES/EBU
Audio Sample Rate
Converter
Analog or AES/EBU
Audio Out Switch
Loop SDI Out
Ethernet
with Power
