Teranex Mini Smart Panel Settings
If you have installed the optional Teranex Mini Smart Panel on your HDMI to SDI 12G converter,
the following menus will be available - ‘video,’ ‘audio,’ and ‘network.’ The settings available in
these menus are identical to those detailed in the section above.
For more information on changing settings using the Teranex Mini Smart Panel, refer to the
‘changing settings’ section in this manual.
Using Teranex Mini Smart Panel gives you access to
the same settings as Blackmagic Teranex Setup.

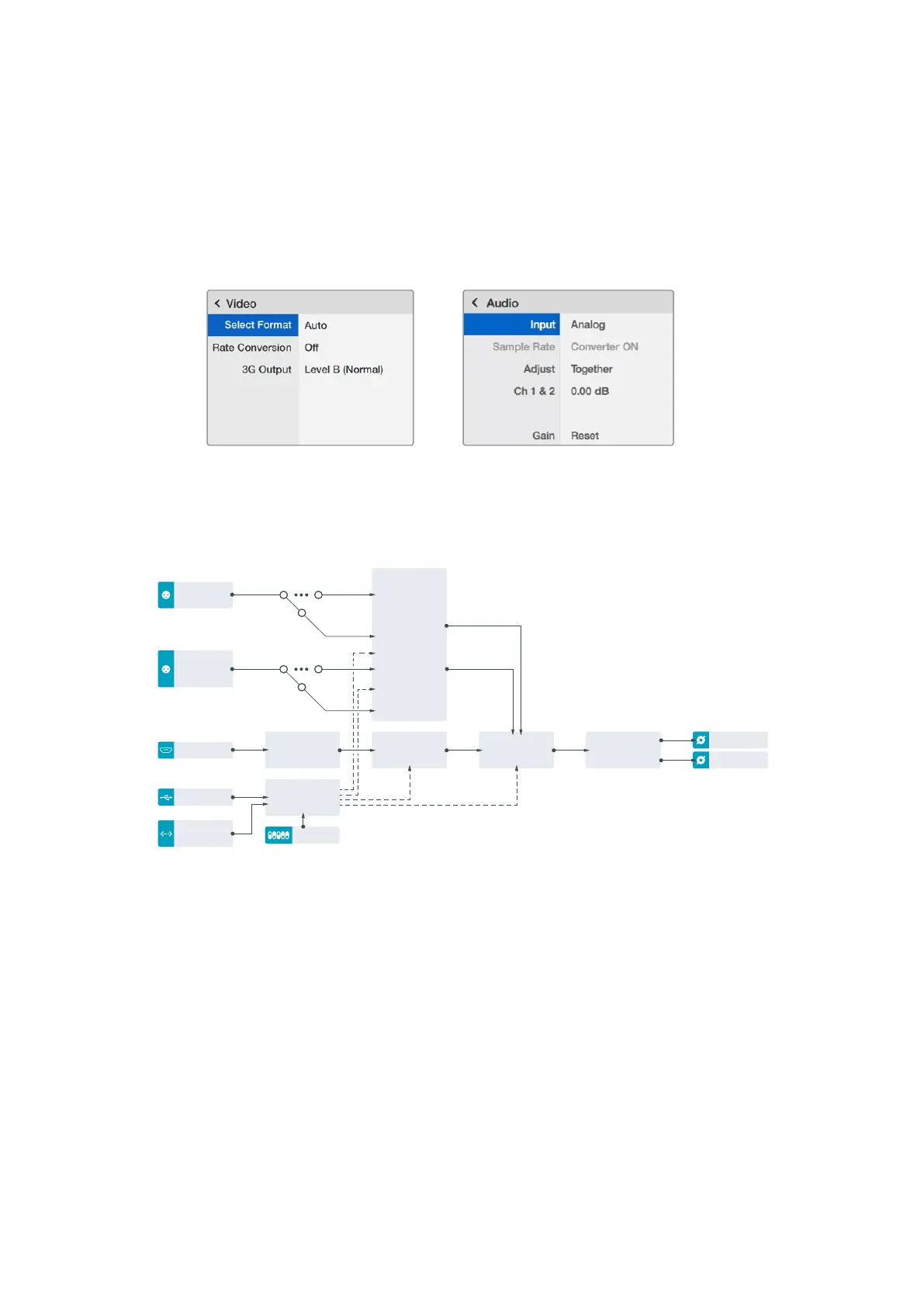

Teranex Mini – HDMI to SDI 12G Block Diagram
Ethernet
with Power
USB
USB
Customizable
Video Processor
SDI Audio
Embedder
Automatic
SD/HD/6G/12G-SDI
Cable Driver
HDMI Video and
Audio Decoder
Central
Processor and
Firmware
Mini Switches
HDMI In
SDI Out
SDI Out
Analog or AES/EBU
Audio Switch
Left Analog In
or AES/EBU 1+2
Right Analog In
or AES/EBU 3+4
or Timecode
Audio Analog to
Digital from
Balanced Input
AES/EBU Sample
Rate Converter
Analog or AES/EBU
Audio Switch
Teranex Mini – SDI to Analog 12G
Your Teranex Mini - SDI to Analog 12G lets you convert from SD SDI, HD-SDI, 3G-SDI, 6G-SDI
and 12G-SDI input sources to analog component, NTSC and PAL video out, plus balanced AES/
EBU and analog audio out. The built in down converter lets you connect 12G-SDI video to SD
and HD analog equipment and easily connects to video monitors and decks such as Betacam
SP and VHS. You can even output pairs of analog audio from 16 de-embedded SDI
audio channels.
34Teranex Mini – SDI to Analog 12G
