Teranex Mini – SDI to Audio 12G
With Teranex Mini SDI to Audio 12G you can de-embed audio from any SDI video connection
and output to two channels of analog audio or four channels of AES/EBU digital. Output to
audio equipment such as audio mixers, analog decks and reference monitors.
Additional SDI audio channels can be de-embedded by daisy chaining another Teranex Mini
SDI to Audio 12G to your converter’s SDI output.
SDI IN
L - ANALOG
AES/EBU
R - ANALOG
AES/EBU - T/C
OPTICAL
AUDIO
STEREO OUT
L R
SDI OUT
ETHERNET PoE+
1 2 3
SDI IN
L - ANALOG
AES/EBU
R - ANALOG
AES/EBU - T/C
OPTICAL
AUDIO
STEREO OUT
L R
SDI OUT
ETHERNET PoE+
4
8 9 10 11 12
5
6 7

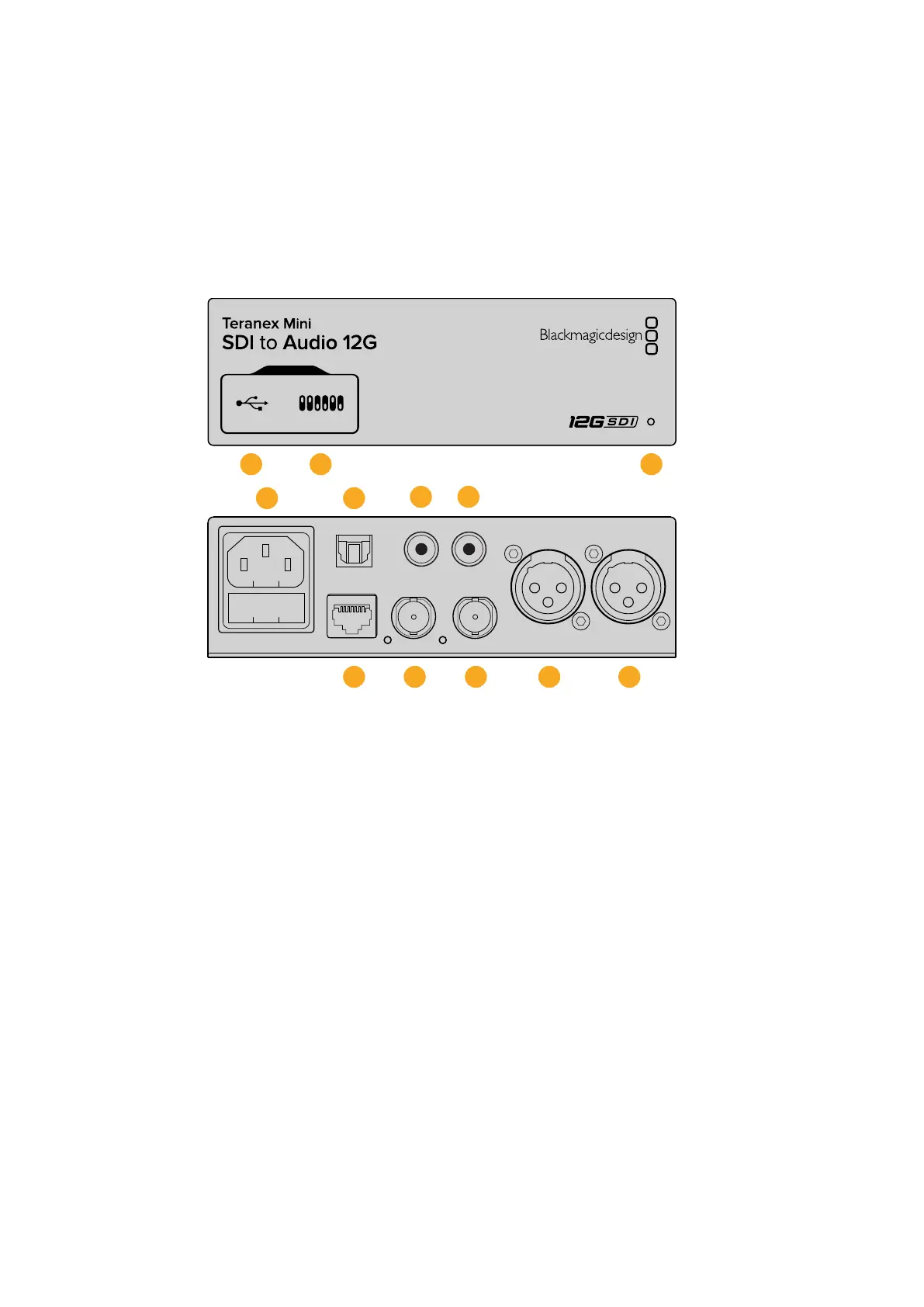

Connectors
1 Mini-B USB Port
Connects to the Teranex setup utility via a Mac or Windows computer for adjusting
settings and updating your Teranex Mini’s internal software.
2 Switches
Adjustable switches for changing settings.
3 LED Status Indicator
Glows white when the converter is receiving power and green when a valid video input
signal is detected. Will flash on/off to identify individual converters via Blackmagic
Teranex Setup.
4 Power
Standard built in IEC C14 connector for 90 - 240 volt AC power supply.
5 Optical S/PDIF Audio Output
S/PDIF Signal with TOSLINK Connector.
6 L – Unbalanced HiFi Analog Line Level Output
Unbalanced left channel analog audio output RCA connector.
7 R – Unbalanced HiFi Analog Line Level Output
Unbalanced right channel analog audio output RCA connector.
45Teranex Mini – SDI to Audio 12G
