Your Teranex Mini will retain its last settings whether applied via switch, Smart Panel or Teranex
setup utility. If reverting to switch control after removing the Smart Panel or updating your
converter’s settings via software, you may need to toggle individual switches for new settings to
take effect.
Teranex Mini Smart Panel Settings
If you have installed the optional Teranex Mini Smart Panel on your Analog to SDI 12G to
converter, the following menus will be available - ‘video,’ ‘audio,’ and ‘network.’ The settings
available in these menus are identical to those detailed in the ‘Blackmagic Teranex Setup
settings’ section above.
For more information on changing settings using the Teranex Mini Smart Panel, refer to the
‘changing settings’ section in this manual.

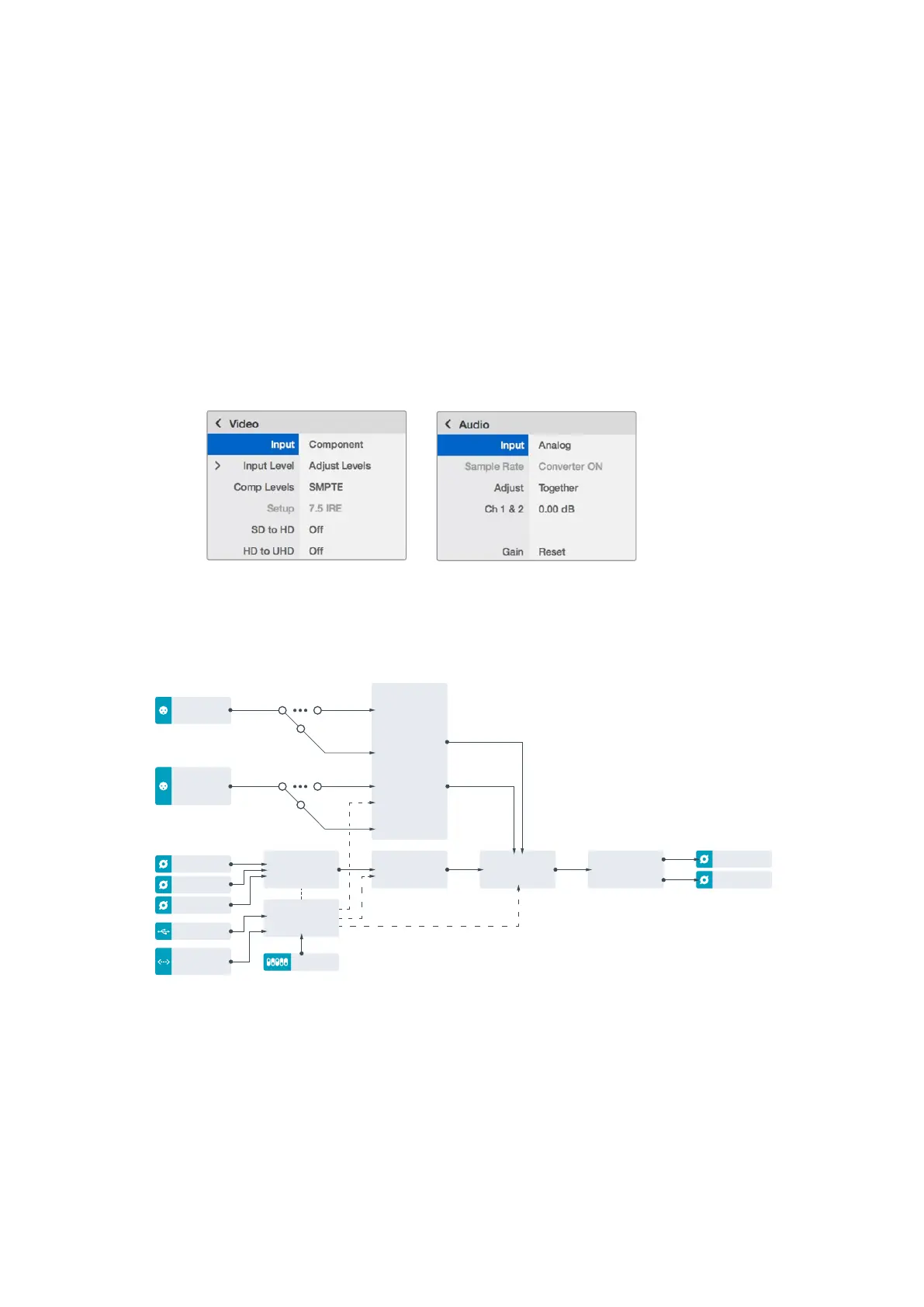

Using Teranex Mini Smart Panel gives you access to
the same settings as Blackmagic Teranex Setup.
Teranex Mini Analog to SDI 12G Block Diagram
Ethernet
with Power
SDI Out
SDI Out
Customizable
Video Processor
SDI Audio
Embedder
Automatic
SD/HD/6G/12G-SDI
Cable Driver
Analog or AES/EBU
Audio Switch
12 Bit Digital to
Analog SD/HD
Video Converter
Central Processor
and Firmware
Mini Switches
Left Analog In
or AES/EBU 1+2
Right Analog In
or AES/EBU 3+4 In
or Timecode In
Y
R-Y
B-Y
USB
Audio Analog to
Digital from
Balanced Input
AES/EBU Sample
Rate Converter
Analog or AES/EBU
Audio Switch
Component input can switch to
S-Video and Composite
44Teranex Mini – Analog to SDI 12G
