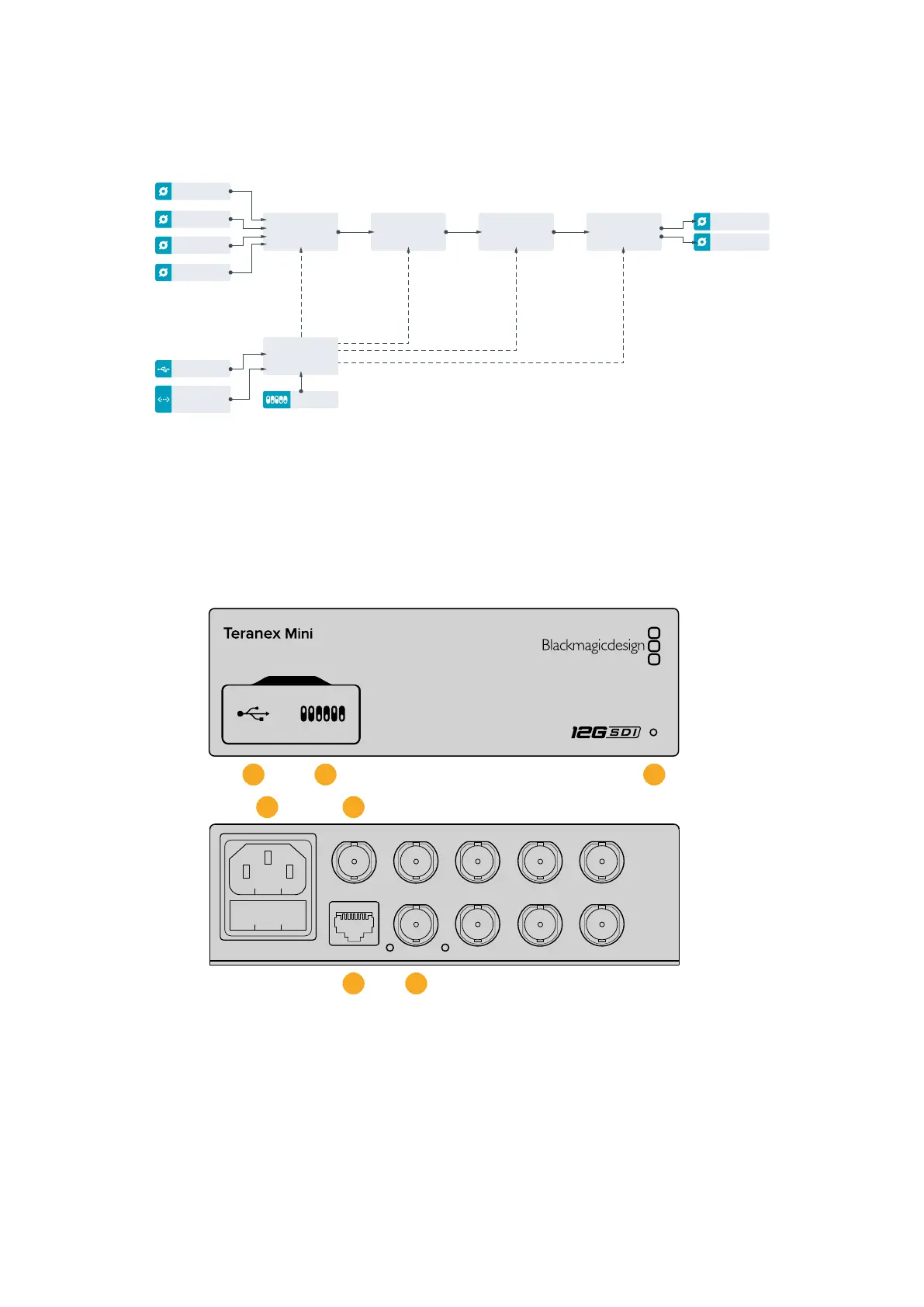

Teranex Mini Quad SDI to 12G–SDI Block Diagram
SDI IN 1
SDI IN 2
SDI IN 3
SDI IN 4
Ethernet
with Power
SDI Out
Equalizer,
Re-Clocker and
10 bit De-Serializer
Customiszable
Video Processor
Automatic
SD/HD/6G/12G-SDI
Cable Driver
SDI
Multiplex
Central Processor
and Firmware
Mini Switches
USB
SDI Out
Input automatically
detects between
SD/HD/6G/12G-SDI
Teranex Mini – SDI Distribution 12G
With Teranex Mini - SDI Distribution 12G you can distribute a single SDI video input to up to
eight SDI outputs. Your Teranex Mini features the latest multi rate 12G-SDI connections with full
SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD
formats up to 2160p60. Your Teranex Mini - SDI Distribution 12G is perfect for distributing a
single SDI signal to multiple devices such as monitors, switchers and encoders.
ETHERNET PoE+ SDI IN
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI Distribution 12G
1 2 3
ETHERNET PoE+ SDI IN
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI OUT
SDI Distribution 12G
4 5
6 7
Connectors
1 Mini-B USB Port
The USB port lets you connect your converter to a Mac or Windows computer so you
can adjust settings and update your converter’s internal software.
2 Switches
Switches on the front of your Teranex Mini let you change settings using the
tip of a pen.
62Teranex Mini – SDI Distribution 12G
