Blackmagicdesign teranex mini - Connectors for SDI to Analog 12 G; USB, Power, and SDI Ports; Analog Video Outputs

ETHERNET PoE+ SDI IN
L - ANALOG
AES/EBU
R - ANALOG
AES/EBU - T/C
Y or NTSC/PAL B-Y or S-VIDEO Y R-Y or S-VIDEO C
SDI LOOP OUT
1 2 3
ETHERNET PoE+ SDI IN
L - ANALOG
AES/EBU
R - ANALOG
AES/EBU - T/C
Y or NTSC/PAL B-Y or S-VIDEO Y R-Y or S-VIDEO C
SDI LOOP OUT
4 5
8 9 10 11 12
6 7

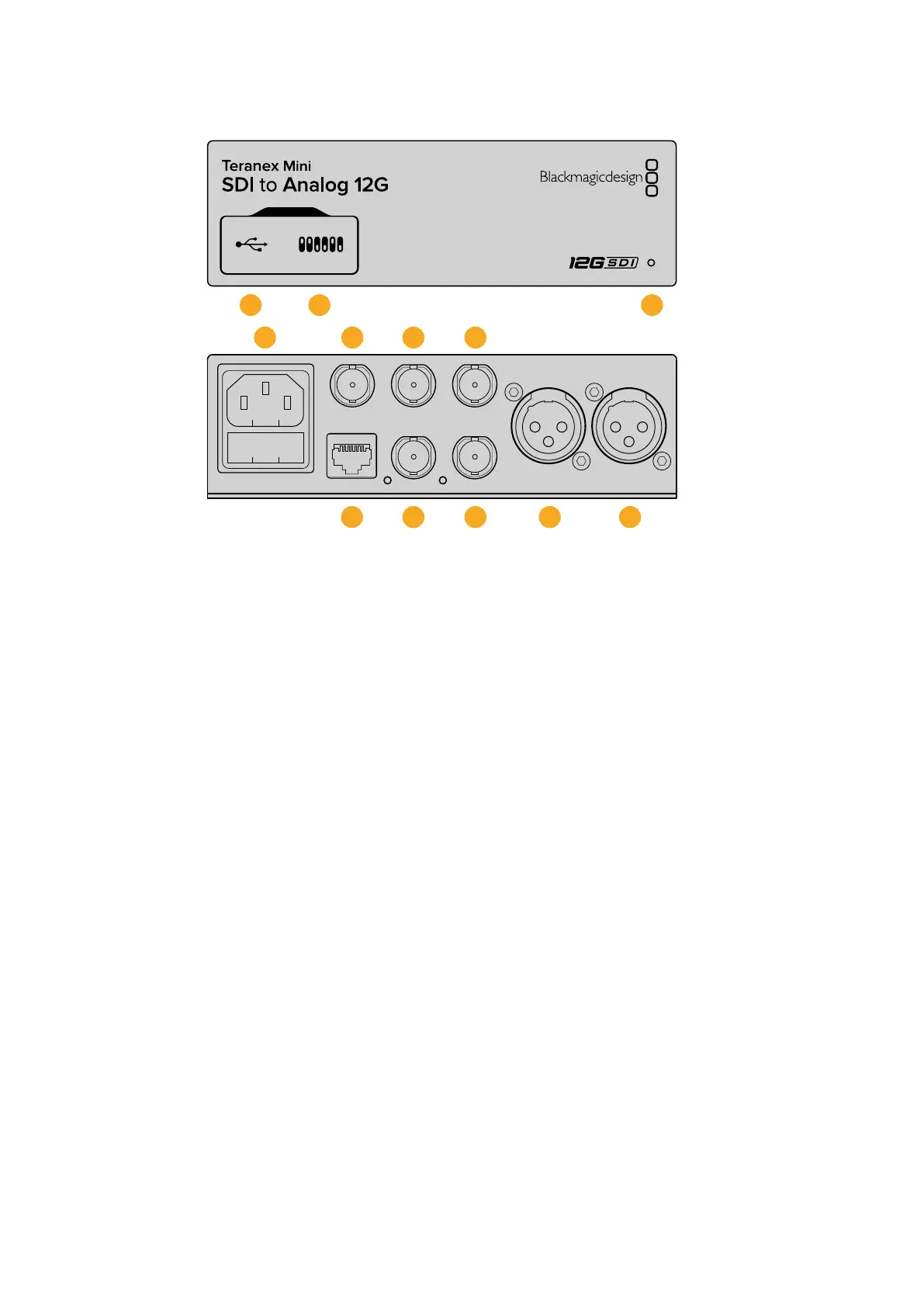

Connectors
1 Mini-B USB Port
Connects to the Blackmagic Teranex Setup software via a Mac or Windows computer
for adjusting settings and updating your Teranex Mini’s internal software.
2 Switches
Adjustable switches for changing settings.
3 LED Status Indicator
Glows white when the converter is receiving power and green when a valid video input
signal is detected. Will flash on/off to identify individual converters via Blackmagic
Teranex Setup.
4 Power
Standard built in IEC C14 connector for 90 - 240 volt AC power supply.
5 Y or NTSC/PAL
Analog component Y, NTSC or PAL composite output
BNC connector.
6 B-Y or S-VIDEO Y
Analog component B-Y, or S-Video Y output BNC connector.
7 R-Y or S-VIDEO C
Analog component R-Y, or S-Video C output BNC connector.
8 Ethernet PoE+
Connects to a network switch or computer so you can change settings using
Blackmagic Teranex Setup. The Ethernet port also supports power over Ethernet plus.
9 SDI In
SDI video input BNC connector.
10 SDI Loop Out
SDI video loop output BNC connector.
35Teranex Mini – SDI to Analog 12G
