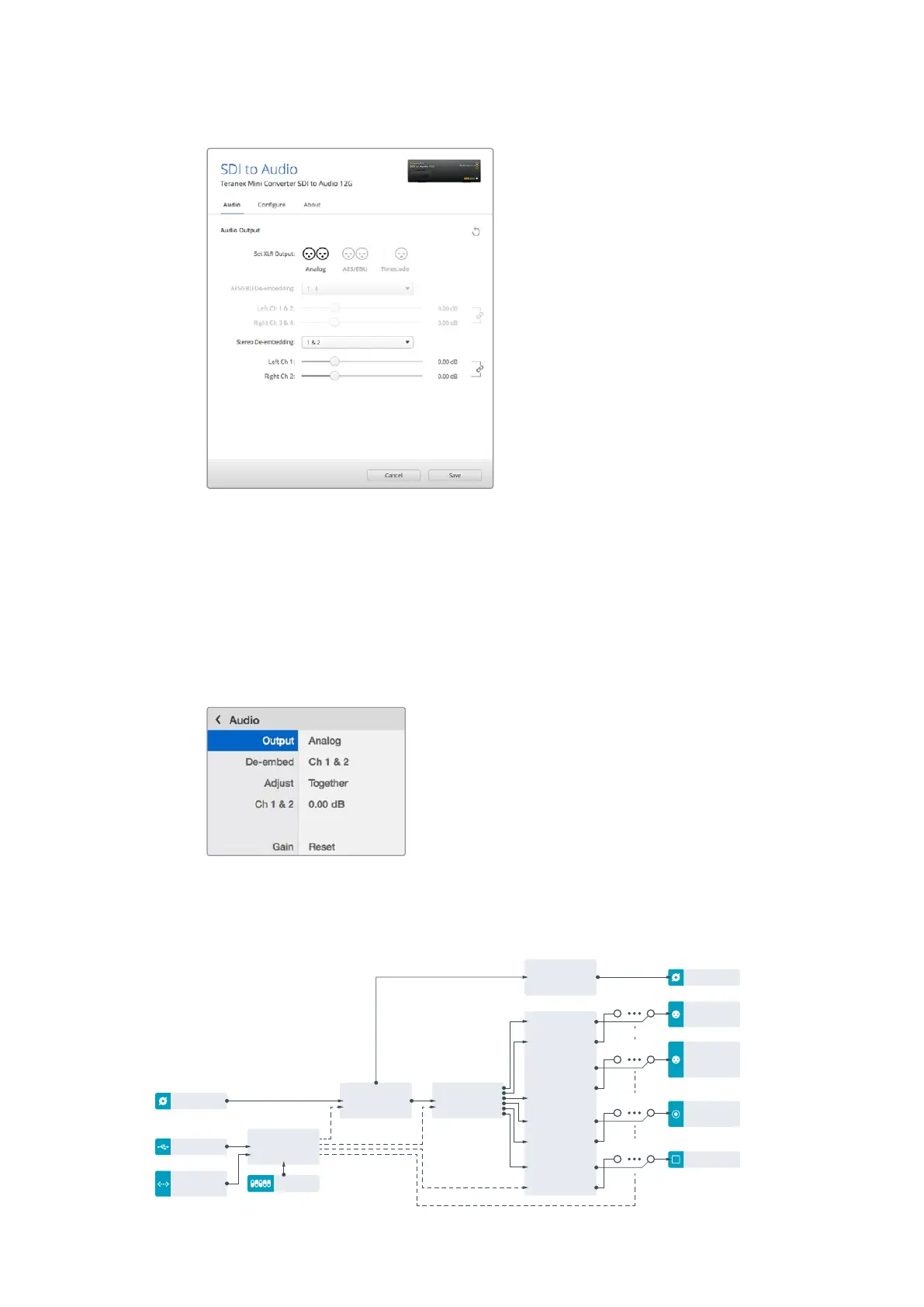

Adjust your analog audio levels and AES/EBU levels using
the ‘audio’ settings page in Blackmagic Teranex Setup.
Teranex Mini Smart Panel Settings
If you have installed the optional Teranex Mini Smart Panel on your SDI to Audio 12G converter,
the following menus will be available - ‘audio,’ and ‘network.’ The settings available in these
menus are identical to those detailed in the ‘Blackmagic Teranex Setup settings’ section above.
For more information on changing settings using the Teranex Mini Smart Panel, refer to the
‘changing settings’ section in this manual.
Using Teranex Mini Smart Panel gives you access to
the same settings as Blackmagic Teranex Setup.
Teranex Mini SDI to Audio 12G Block Diagram
Optical Out
Ch 1 Analog or
Ch 1&2 AES/EBU
Ch 2 Analog or
Ch 3&4 AES/EBU
or Timecode Out
Stereo Audio
Analog to Digital
Converter
AES/EBU
Audio Sample Rate
Converter
Stereo Out
L
R
Equalizer,
Re-Clocker and
10 bit De-Serializer
SDI Audio
De-Embedder
Automatic
SD/HD/6G/12G-SDI
Cable Driver
Central Processor
and Firmware
Mini Switches
SDI In
USB
Loop SDI Out
Input automatically
detects between
SD/HD/6G/12G-SDI
Ethernet
with Power
Analog or AES/EBU
Analog or AES/EBU
Analog
Digital
48Teranex Mini – SDI to Audio 12G
