Blackmagicdesign teranex mini - Connectors for Quad SDI to 12 G-SDI; USB, Switches, and Power; SDI Inputs (A-B)

ETHERNET PoE+ SDI OUT
SDI OUT
A B C D
QUAD or DUAL LINK SDI IN
Quad SDI to 12G-SDI
1 2 3
ETHERNET PoE+ SDI OUT
SDI OUT
A B C D
QUAD or DUAL LINK SDI IN
Quad SDI to 12G-SDI
4
9 10
5 6 7 8

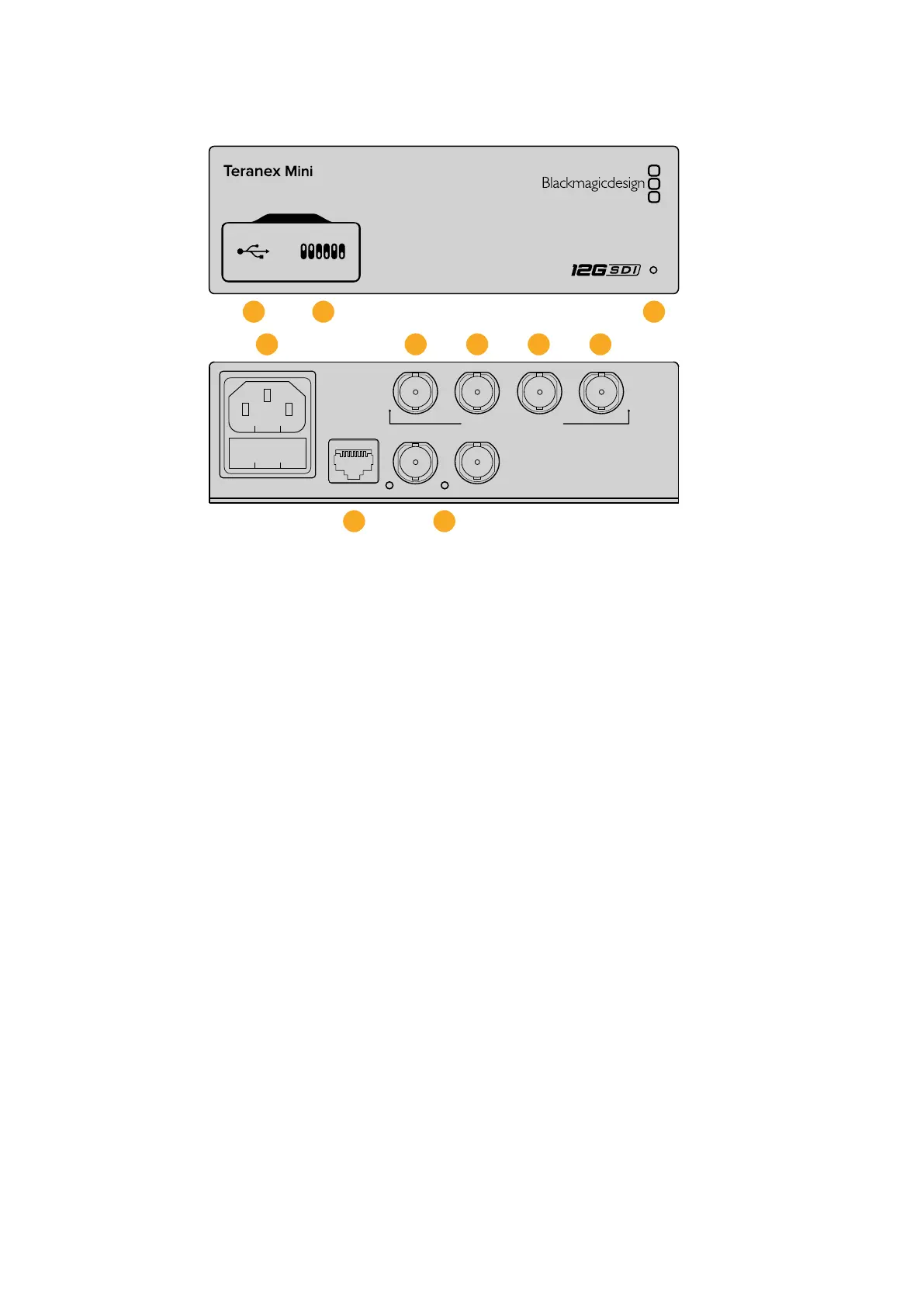

Connectors
1 Mini-B USB Port
The USB port lets you connect your converter to a Mac or Windows computer so you
can adjust settings and update your converter’s internal software.
2 Switches
Switches on the front of your Teranex Mini let you change settings using the
tip of a pen.
3 LED Status Indicator
The LED glows white when the converter is receiving power and green when a valid
video input signal is detected. When more than one Teranex Mini is connected to your
computer, you can identify your converter using the ‘identify’ checkbox in Blackmagic
Teranex Setup. When the checkbox is enabled, your converter’s LED will flash
on and off.
4 Power
Standard built in IEC C14 connector for 90 - 240 volt AC power supply.
5 SDI In A
This BNC connector accepts the following input signals:
ͽ SD/HD-SDI
ͽ Single link 3G-SDI
ͽ Single link 6G-SDI
ͽ Dual link HD-SDI channel A
ͽ Dual link 3G-SDI Ultra HD channel A
ͽ Quad link HD-SDI Ultra HD channel A
6 SDI In B
This BNC connector accepts the following input signals:
ͽ Dual link HD-SDI channel B
ͽ Dual link 3G-SDI Ultra HD channel B
ͽ Quad link HD-SDI Ultra HD channel B
59Teranex Mini – Quad SDI to 12G-SDI
