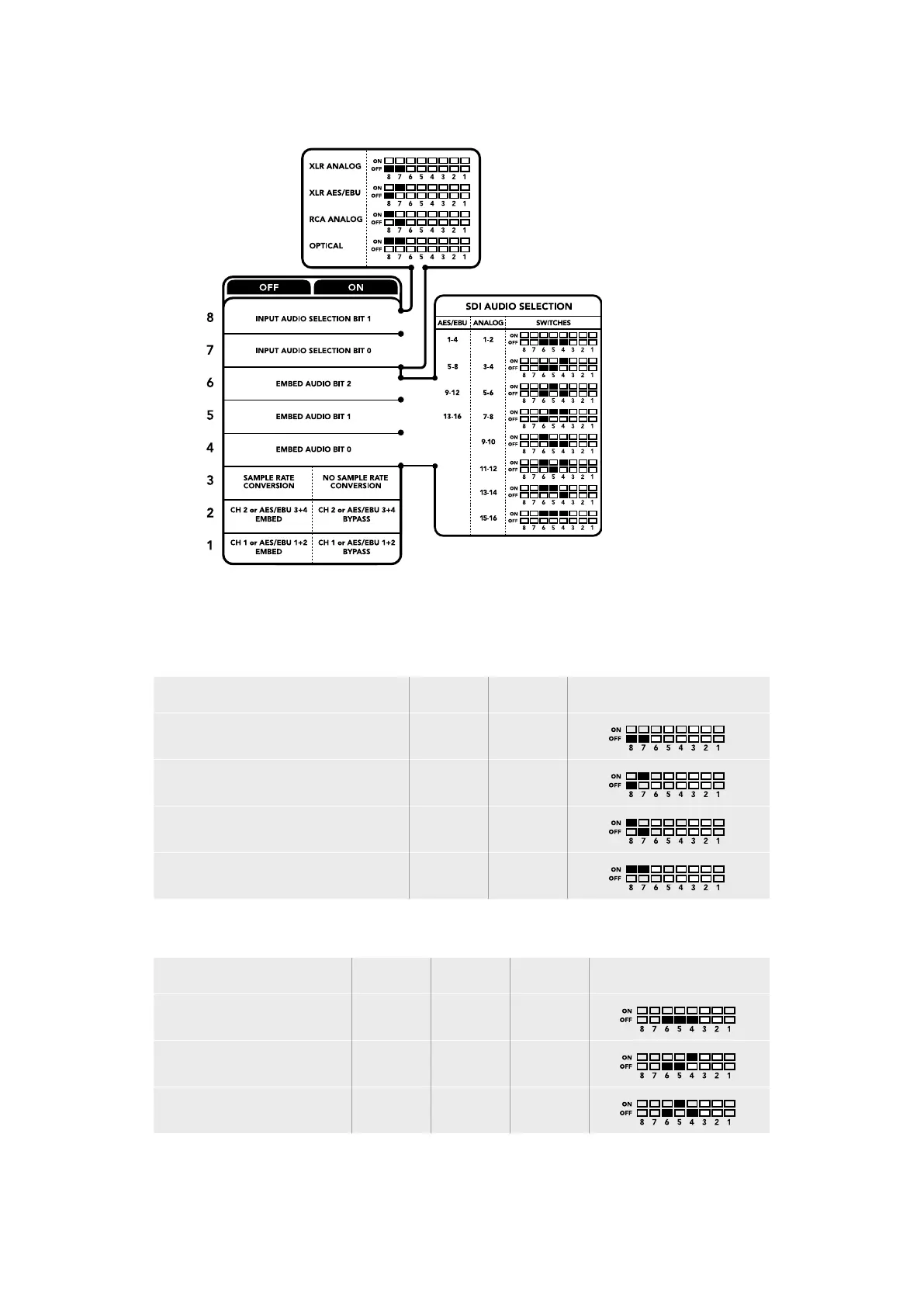

The switch legend on the base of your converter gives you
all the information you need to change conversion settings.
Audio Selection Tables
Input Audio Channels Switch 8 Switch 7 Switch Diagram
XLR Analog OFF OFF
XLR AES/EBU OFF ON
RCA Analog ON OFF
Optical ON ON
SDI Channel Tables
Analog Audio Channels Switch 6 Switch 5 Switch 4 Switch Diagram
1-2 OFF OFF OFF
3-4 OFF OFF ON
5-6 OFF ON OFF
91Teranex Mini – Audio to Optical 12G
