13
ASSEMBLY INSTRUCTIONS

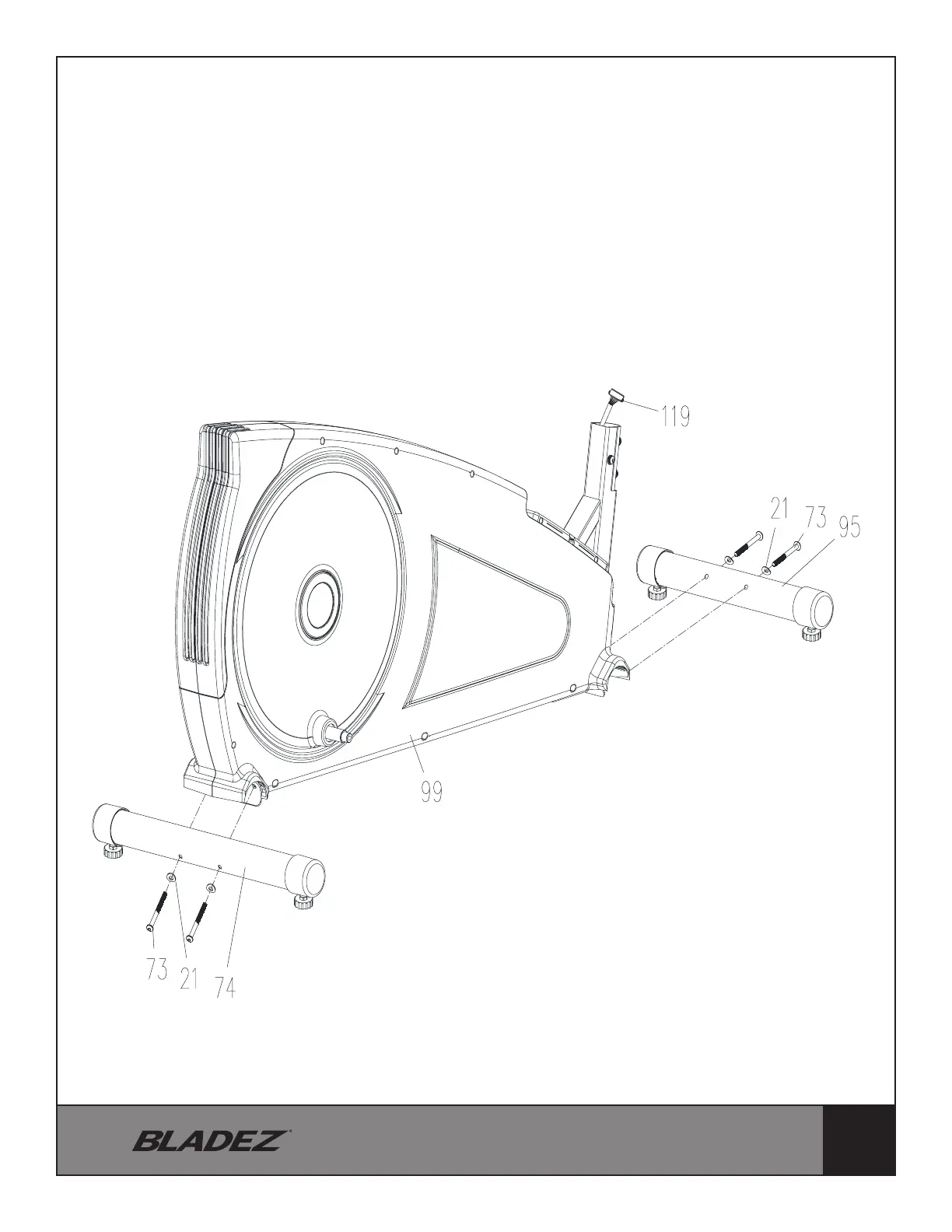

STEP 1
Fasten the Front Stabilizer (95) with 2 Curved Washers (21) and 2 Allen Bolts (73) from
the underside of Stabilizer and tighten it.
Fasten the Rear Stabilizer (74) with 2 Curved Washers (21) and 2 Allen Bolts (73) from
the underside of stabilizer and tighten it.
