15

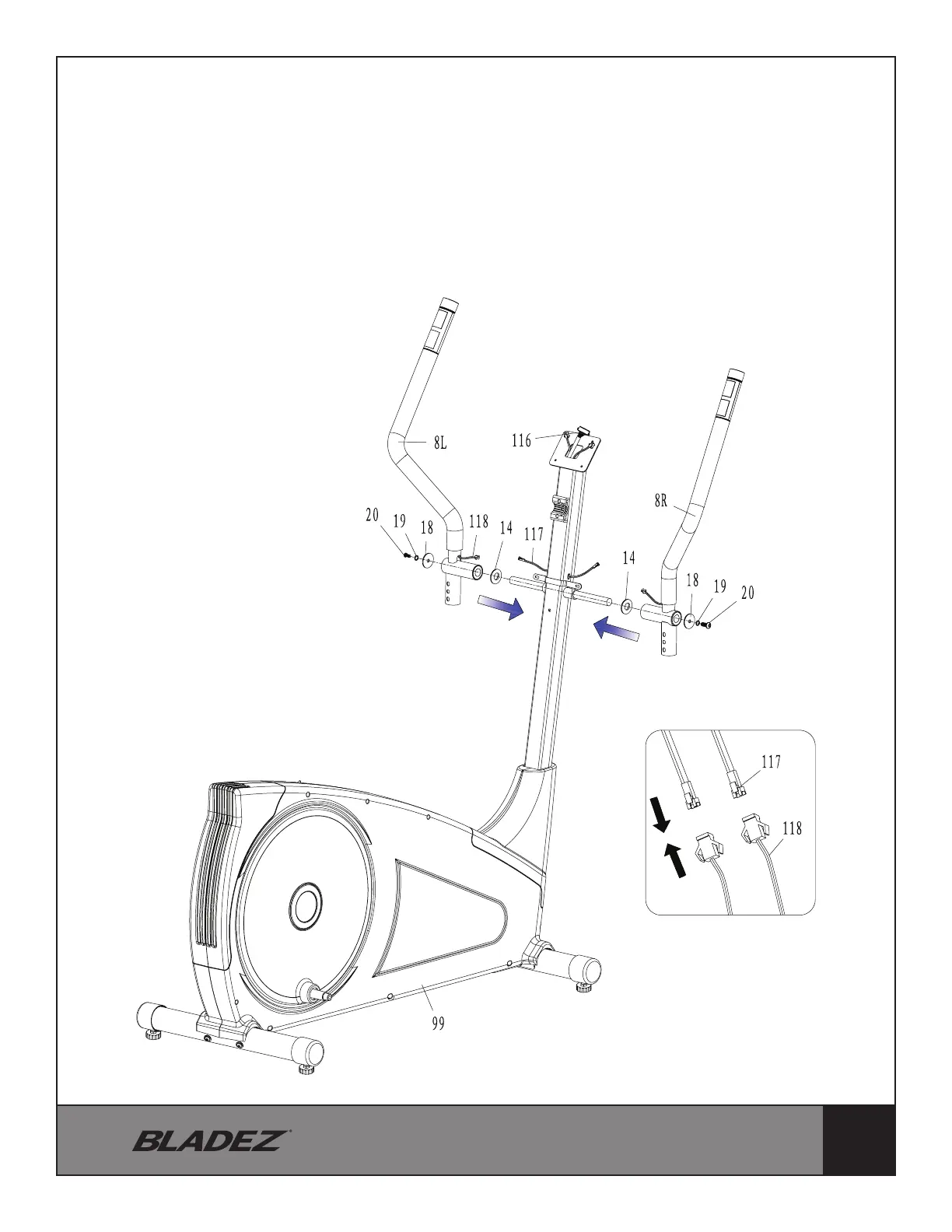

STEP 3
Remove the pre-assembled 2 Flat Washers (14), 2 Flat Washers (18), 2 Spring Washers (19)
and 2 Allen Bolts (20). Slide the Upper Handlebar (8L+R) onto rotation rod and secure it
using the Flat Washer (14), Flat Washer (18), Spring Washer (19) and Allen Bolt (20) for each
side. Connect the Pulse Cable (118) with Pulse Cable (117).
