BLADEZ E550 - Page 17

17

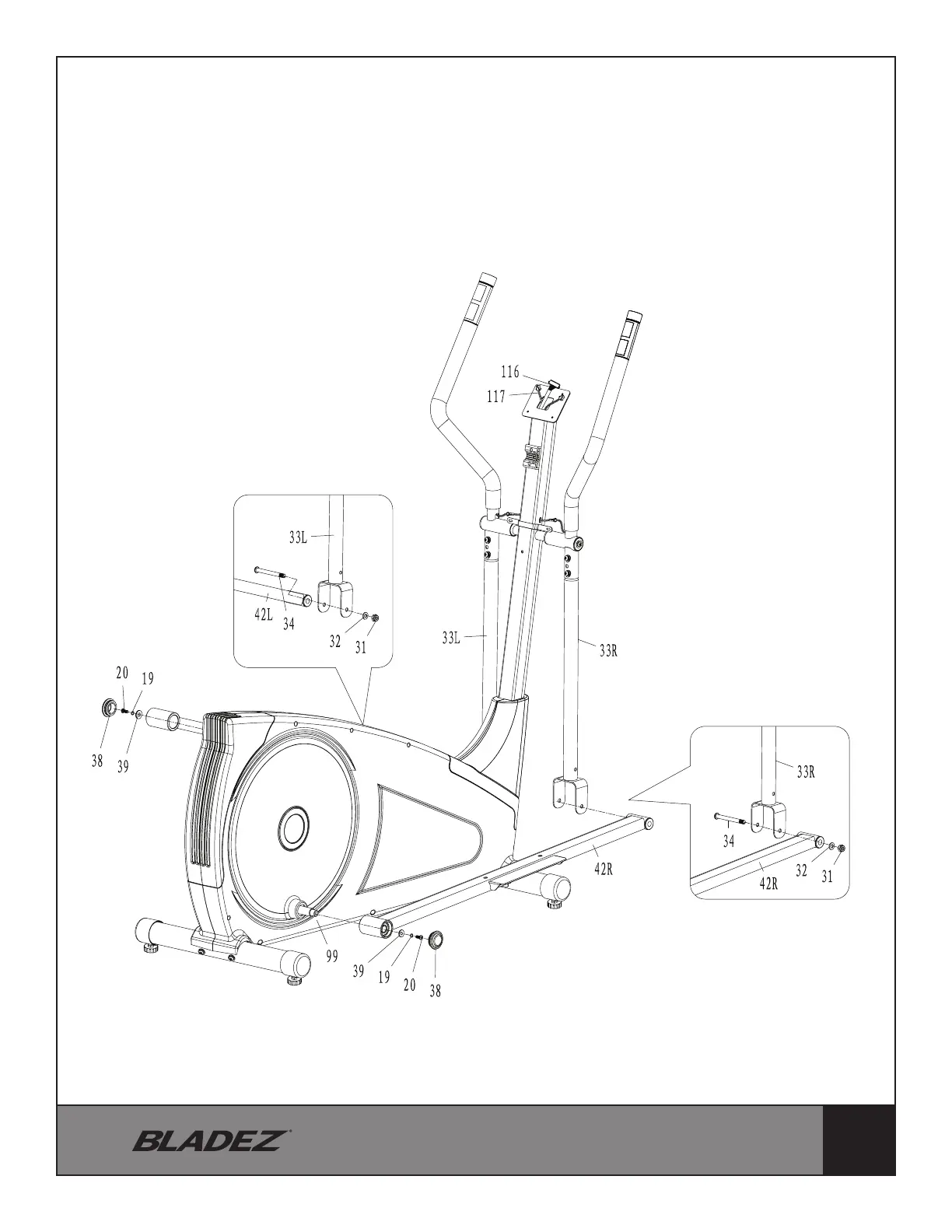

STEP 5
Connect the left Side Rail (42L) with the left Lower Handlebar (33L) using Allen Bolt (34),
Flat Washer 32) and nylon Nut (31). Attach the left Side Rail (42L) onto the left crank and
secure it with the Flat Washer (39), Spring Washer (19) and Allen Bolt (20). Do the same for
the right Pedal Bar (42R). Put the 2 crank End Caps (38) onto the left and right crank.
